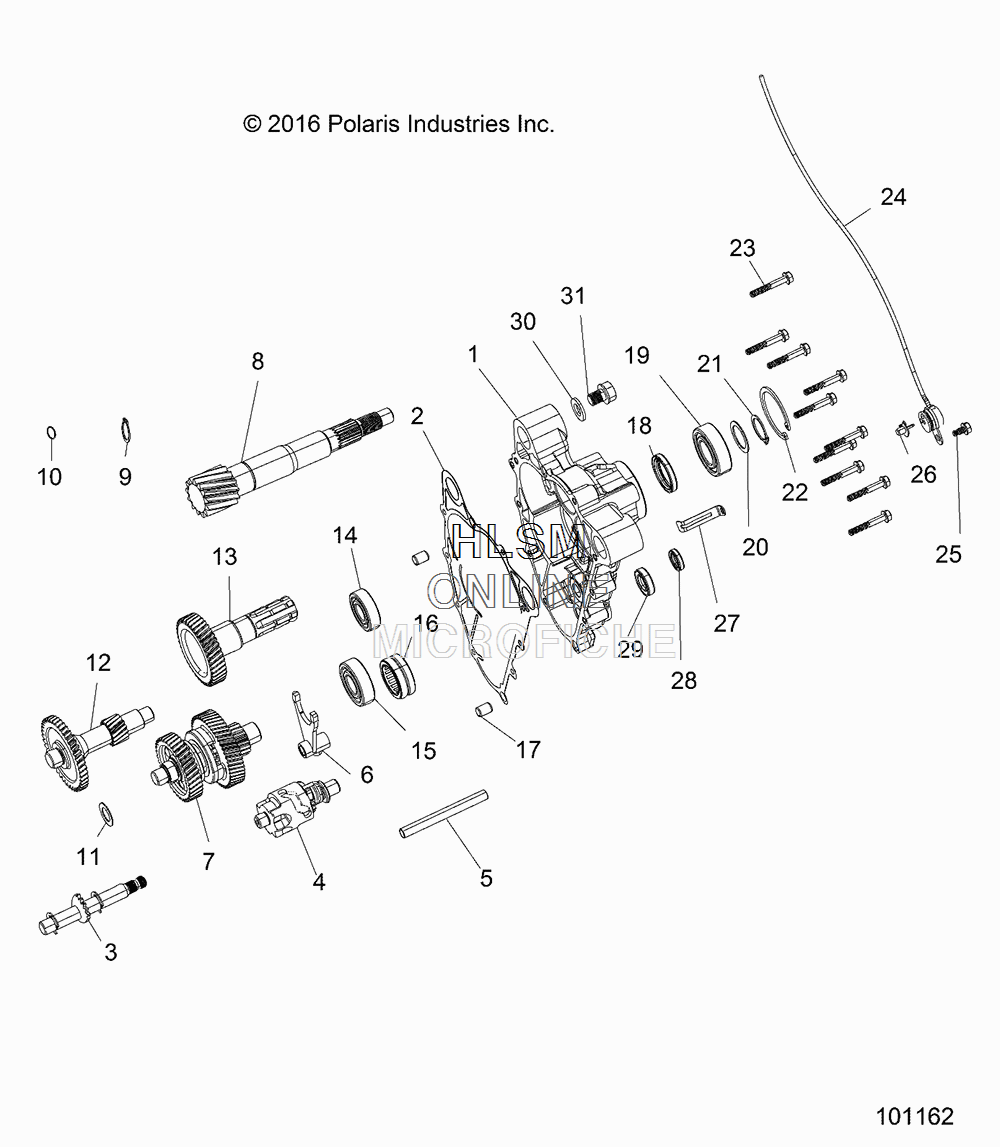

GEARCASE для Polaris ACE 150 EFI 501S (INDY RED) [A18HAA15B7] - 2018 года выпуска
-
№АртикулНазвание
-
13050284 GEAR BOX COVERGEAR BOX COVER
-
23050349 GEAR BOX GASKETGEAR BOX GASKET
-
33050286 ASM-TRANSMISSION SHAFTASM-TRANSMISSION SHAFT
-
43050287 GEARSHIFT DRUMGEARSHIFT DRUM
-
53050288 FORK SHAFTFORK SHAFT
-
63050289 FORK SHAFTFORK SHAFT
-
73050290 ASM-GEARSHIFT SHAFTASM-GEARSHIFT SHAFT
-
83050291 DRIVE SHAFTDRIVE SHAFT
-
93050292 CIRCLIP 20CIRCLIP 20
-
103050293 O-RING 10X2.3O-RING 10X2.3
-
113050294 PLAIN WASHERS (STEEL) 15X19X1PLAIN WASHERS (STEEL) 15X19X1
-
123050295 ASM-REVERSE GEAR SHAFTASM-REVERSE GEAR SHAFT
-
133050296 ASM-OUTPUT SHAFTASM-OUTPUT SHAFT
-
143050342 BALL BEARING 6302BALL BEARING 6302
-
153050323 BALL BEARING 6204BALL BEARING 6204
-
163050297 NEEDLE BEARING RNA4905NEEDLE BEARING RNA4905
-
173050298 DOWEL PIN 10X14DOWEL PIN 10X14
-
183050299 OIL SEAL 30X40X6OIL SEAL 30X40X6
-
193050300 BALL BEARING 6205-2RSBALL BEARING 6205-2RS
-
203050301 WASHER 25X34X1WASHER 25X34X1
-
213050302 CIRCLIP 25CIRCLIP 25
-
223050303 CIRCLIP 52CIRCLIP 52
-
233050304 BOLT M6X40BOLT M6X40
-
243050305 SHIFT INDICATOR CABLESHIFT INDICATOR CABLE
-
253050306 BOLT M6X12BOLT M6X12
-
263050307 SHIFT INDICATOR CONTACTSHIFT INDICATOR CONTACT
-
273050308 A CABLE CLAMPA CABLE CLAMP
-
283050309 OIL SEAL 14X22X5OIL SEAL 14X22X5
-
293050310 OIL SEAL 14X28X7OIL SEAL 14X28X7
-
303050030 WASHER 12WASHER 12
-
313050031 BOLT M12X1.5BOLT M12X1.5
