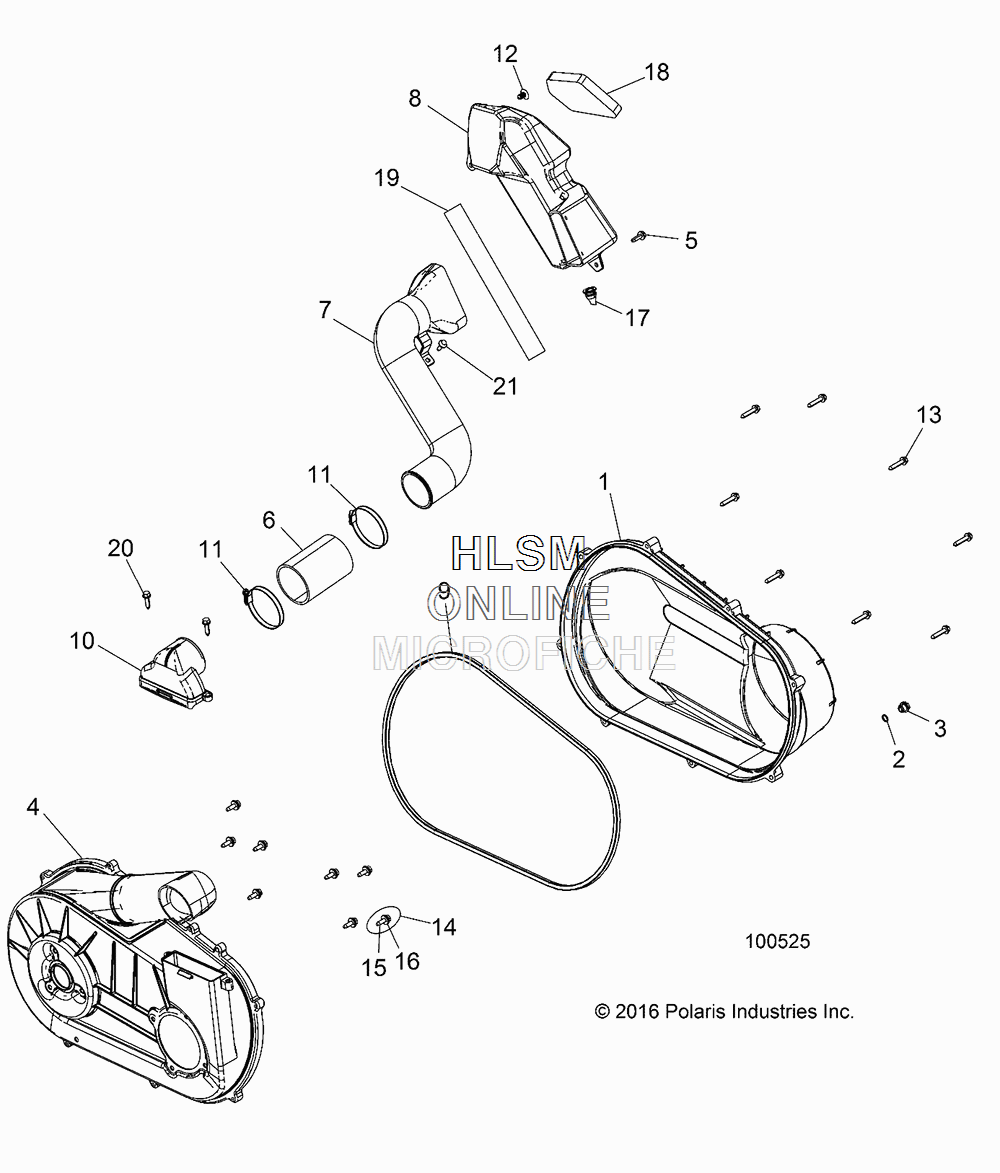

CLUTCH COVER W/ DUCTING для Polaris ACE 570 EFI EURO (VELOCITY BLUE) [A18DAA57F5] - 2018 года выпуска
-
№АртикулНазвание
-
12634179 ASM., COVER, CLUTCH, OUTER (INCL. COVER, 2,3)ASM., COVER, CLUTCH, OUTER (INCL. COVER, 2,3)
-
25410542 O-RINGO-RING
-
35434264 PLUG, DRAINPLUG, DRAIN
-
42636946 ASM-COVER,CLUTCH,INNER,ACE (INCL. 4,10,20)ASM-COVER,CLUTCH,INNER,ACE (INCL. 4,10,20)
-
57518529 SCREWSCREW
-
65414892 HOSE, INTAKEHOSE, INTAKE
-
75452670 DUCT, CLUTCH, AIR INDUCT, CLUTCH, AIR IN
-
85450727 BOX, INTAKE, LHBOX, INTAKE, LH
-
95521831 SEAL, OUTERSEAL, OUTER
-
105451299 DUCT, CLUTCH, AIR INDUCT, CLUTCH, AIR IN
-
117080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
127670088 CLIPCLIP
-
137519849 SCREWSCREW
-
147519278 ASM., BOLT/WASHER,20 MMASM., BOLT/WASHER,20 MM
-
157519279 SCREWSCREW
-
167555748 WASHERWASHER
-
175414472 PLUG, DRAINPLUG, DRAIN
-
185814026 FILTER, INTAKE, FOAMFILTER, INTAKE, FOAM
-
195814033 SEAL, FOAMSEAL, FOAM
-
207512098 SCREWSCREW
-
217661855 RIVET-TUFLOK,.315-.325X.787RIVET-TUFLOK,.315-.325X.787
