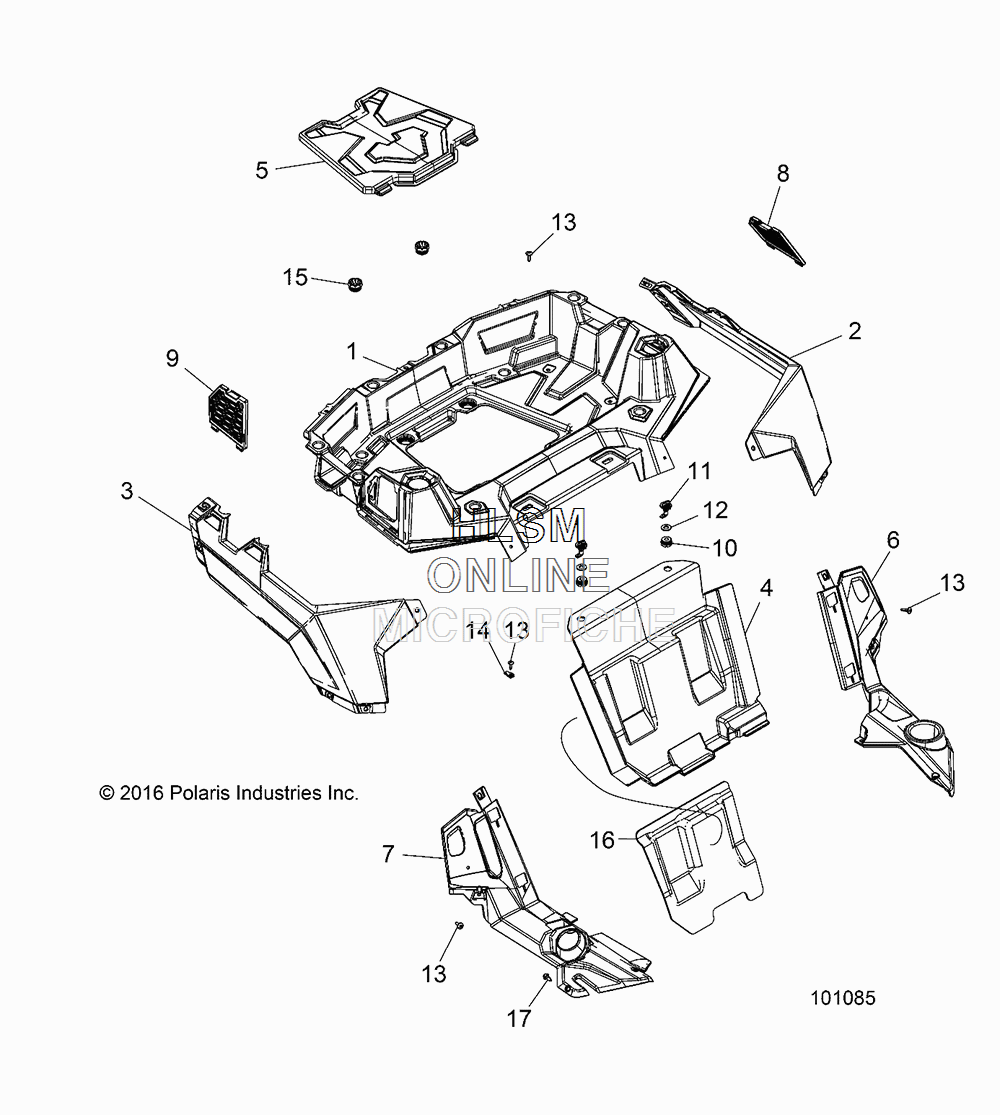

REAR RACK AND FENDERS для Polaris ACE 570 EFI EURO (VELOCITY BLUE) [A18DAA57F5] - 2018 года выпуска
-
№АртикулНазвание
-
15450078-070 BOX, CARGO, REAR, BLACKBOX, CARGO, REAR, BLACK
-
25450076-689 FENDER-REAR,LH,VELOCITY BLUEFENDER-REAR,LH,VELOCITY BLUE
-
35450077-689 FENDER-REAR,RH,VELOCITY BLUEFENDER-REAR,RH,VELOCITY BLUE
-
45454054-070 PANEL-CLOSE OFF,BLKPANEL-CLOSE OFF,BLK
-
55450080-070 BOX, MAINT PANEL, REMOVABLE, BLACKBOX, MAINT PANEL, REMOVABLE, BLACK
-
65450299-070 PANEL, UNDERSEAT COVER, LH, BLACKPANEL, UNDERSEAT COVER, LH, BLACK
-
75454090-070 PANEL-UNDERSEAT CVR,RTR,RH,BLKPANEL-UNDERSEAT CVR,RTR,RH,BLK
-
77081040 RIVET-PLASTIC,R-LOCK,.197 DIARIVET-PLASTIC,R-LOCK,.197 DIA
-
85450392-070 GRILL, INTAKE COVER, LH, BLACKGRILL, INTAKE COVER, LH, BLACK
-
95450393-070 GRILL, INTAKE COVER, RH, BLACKGRILL, INTAKE COVER, RH, BLACK
-
105413428 GROMMET, LATCHGROMMET, LATCH
-
117081730 LATCHLATCH
-
127555919 WASHERWASHER
-
137519650 SCREWSCREW
-
147547674 NUT, U-TYPENUT, U-TYPE
-
155412507 GROMMETGROMMET
-
165814684 SHIELD-CLOSE OFF ACESHIELD-CLOSE OFF ACE
-
177661855 RIVETRIVET
