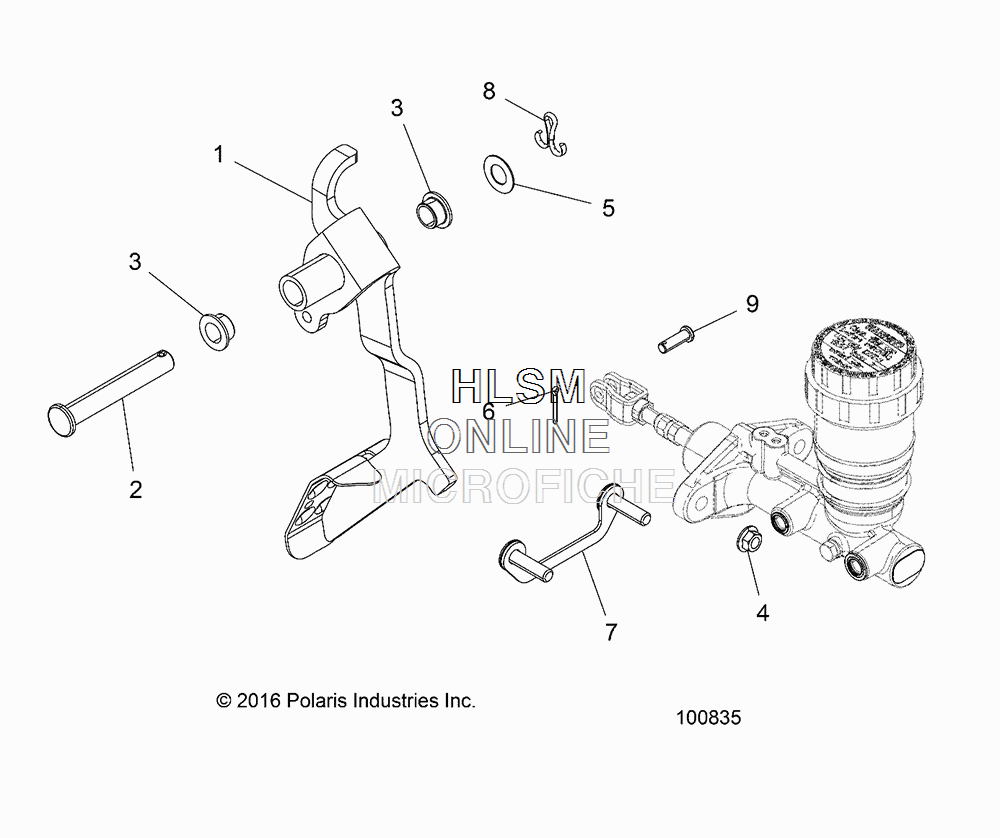

BRAKE - PEDAL W/ MASTER CYLINDER MOUNTING для Polaris ACE 900 ESP XC (VELOCITY BLUE) [A18DCE87BB] - 2018 года выпуска
-
№АртикулНазвание
-
11022796-458 WELD-BRAKE, M.BLACKWELD-BRAKE, M.BLACK
-
25138532 PIN, PIVOTPIN, PIVOT
-
35433189 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
47547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
57556376 WASHERWASHER
-
67661900 PIN, COTTERPIN, COTTER
-
71022855 ASM-FLANGETTE W/SCREWS, ACEASM-FLANGETTE W/SCREWS, ACE
-
87661401 PIN, COTTERPIN, COTTER
-
97661843 PIN, CLEVISPIN, CLEVIS
