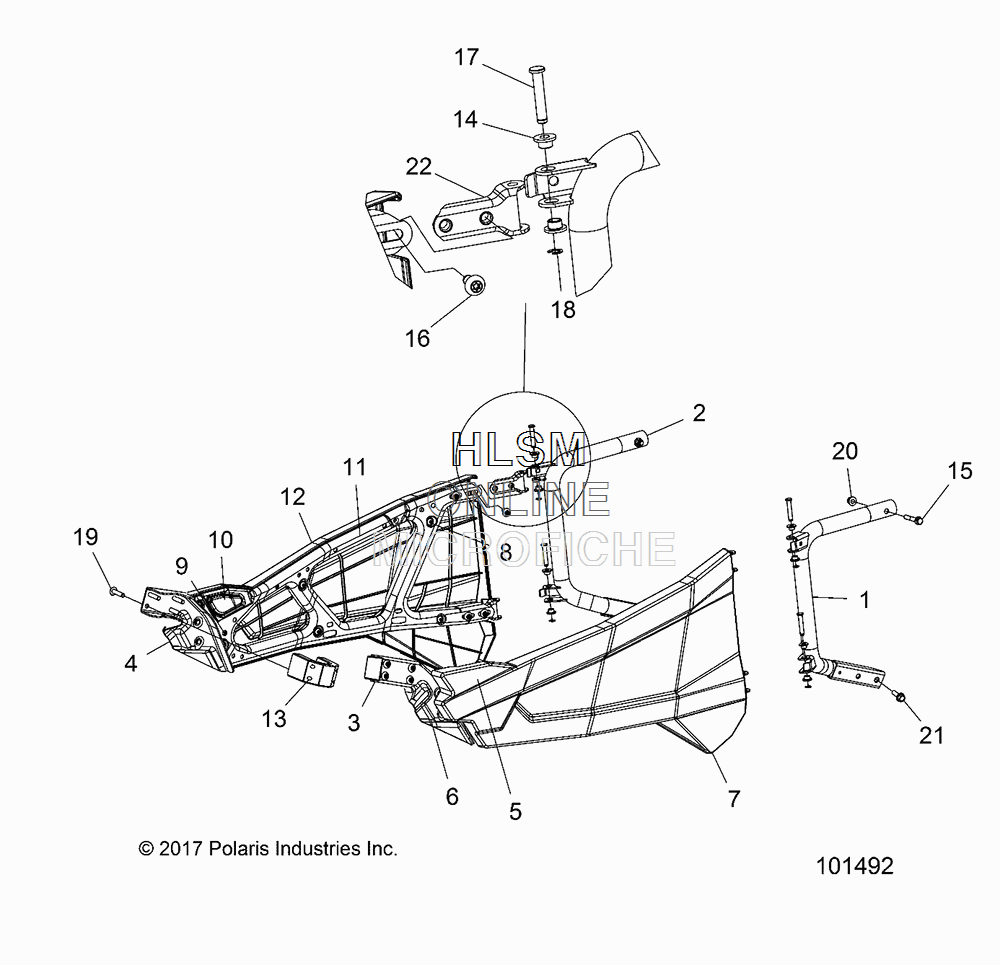

DOORS для Polaris ACE 900 ESP XC (VELOCITY BLUE) [A18DCE87BB] - 2018 года выпуска
-
№АртикулНазвание
-
11022810 WELD-BOLSTER, LEFT HAND, ACEWELD-BOLSTER, LEFT HAND, ACE
-
21022811 WELD-BOLSTER, RIGHT HAND, ACEWELD-BOLSTER, RIGHT HAND, ACE
-
31022817 WELD-BRKT, MT, DR LTCH, LEFT HAND, ACEWELD-BRKT, MT, DR LTCH, LEFT HAND, ACE
-
41022818 WELD-BRKT, MT, DR LTCH, RIGHT HAND, ACEWELD-BRKT, MT, DR LTCH, RIGHT HAND, ACE
-
52635400 ASM-DOOR, LEFT HAND (INCL. LATCH, 6-9)ASM-DOOR, LEFT HAND (INCL. LATCH, 6-9)
-
52636855 ASM-LATCH, DOOR, LEFT HAND (BUILT AFTER 11/30/2017)ASM-LATCH, DOOR, LEFT HAND (BUILT AFTER 11/30/2017)
-
52636270 ASM-LATCH, DOOR, LEFT HAND (BUILT UP TO 11/30/2017)ASM-LATCH, DOOR, LEFT HAND (BUILT UP TO 11/30/2017)
-
65257929-458 STAMPING DOOR FRAME, LEFT HAND, BLACKSTAMPING DOOR FRAME, LEFT HAND, BLACK
-
75450636 DOOR SKIN, LEFT HANDDOOR SKIN, LEFT HAND
-
87519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBKSCR-TX TRUSS-#14X3/4, HI/LO ZBK
-
97519063 SCR-TXBH-M6X1.0X12 8.8 ZPB D20SCR-TXBH-M6X1.0X12 8.8 ZPB D20
-
102636856 ASM-LATCH, DOOR, RIGHT HAND (BUILT AFTER 11/30/2017)ASM-LATCH, DOOR, RIGHT HAND (BUILT AFTER 11/30/2017)
-
102635401 ASM-DOOR, RIGHT HAND (INCL. LATCH, 8, 9, 11, 12)ASM-DOOR, RIGHT HAND (INCL. LATCH, 8, 9, 11, 12)
-
102636271 ASM-LATCH, DOOR, RIGHT HAND (BUILT UP TO 11/30/2017)ASM-LATCH, DOOR, RIGHT HAND (BUILT UP TO 11/30/2017)
-
115257930-458 STAMPING DOOR FRAME, RIGHT HAND, BLACKSTAMPING DOOR FRAME, RIGHT HAND, BLACK
-
125450638 DOOR SKIN, RIGHT HANDDOOR SKIN, RIGHT HAND
-
135140136 MACH-CLAMP, DOOR, ACEMACH-CLAMP, DOOR, ACE
-
135140310 MACH-CLAMP, DOOR, ACEMACH-CLAMP, DOOR, ACE
-
145450592 BUSHING-DOOR PIVOTBUSHING-DOOR PIVOT
-
157516732 SCR-SH-M8X1.25X30 8.8 ZPCSCR-SH-M8X1.25X30 8.8 ZPC
-
167519997 SCR-TXTH-M8X1.25X20 8.8 ZB3 P3SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
-
177662138 PIN-DOOR HINGEPIN-DOOR HINGE
-
187710466 E-CLIP, M6, 0600101E-CLIP, M6, 0600101
-
197520367 SCREWSCREW
-
207547317 NUT, FLANGENUT, FLANGE
-
217519243 SCREWSCREW
-
225258008 BRKT-DOOR HINGEBRKT-DOOR HINGE
