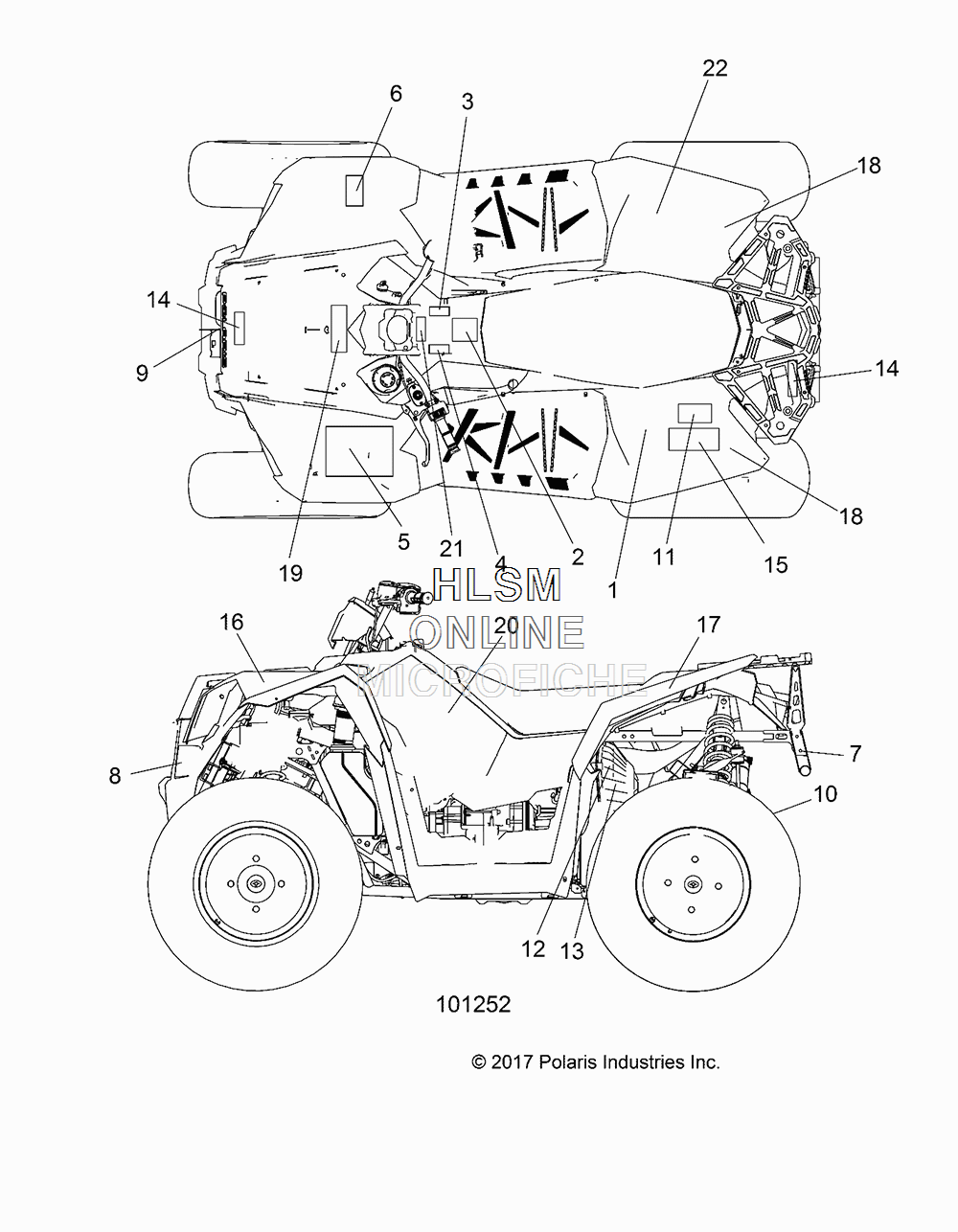

DECALS для Polaris SCRAMBLER 1000 XP (HAVASU RED PEARL) [A18SVE95BR] - 2018 года выпуска
-
№АртикулНазвание
-
17186848 DECAL-RR.CAB, BTM, LEFT HANDDECAL-RR.CAB, BTM, LEFT HAND
-
17186849 DECAL-RR.CAB, BTM, RIGHT HANDDECAL-RR.CAB, BTM, RIGHT HAND
-
27185253 DECAL-WARN, AGE 16+, 1 OCDECAL-WARN, AGE 16+, 1 OC
-
37186126 DECAL-CAUT, 4X4(AWD)DECAL-CAUT, 4X4(AWD)
-
47186127 DECAL-WARN, OVERRIDEDECAL-WARN, OVERRIDE
-
57186136 DECAL-WARN, GENERAL, 1 OCDECAL-WARN, GENERAL, 1 OC
-
67186138 DECAL-WARN, HILLS, SCRAMBLERDECAL-WARN, HILLS, SCRAMBLER
-
72636502 ASM-REFLECTOR, RED W/VHB TAPEASM-REFLECTOR, RED W/VHB TAPE
-
82636503 ASM-REFLECTOR, AMBER W/VHB TAPEASM-REFLECTOR, AMBER W/VHB TAPE
-
97078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
107170509 DECAL, HITCHDECAL, HITCH
-
117186125 DECAL-WARN, NO PASSENGERDECAL-WARN, NO PASSENGER
-
127175488 DECAL, WARNING, CLUTCH COVERDECAL, WARNING, CLUTCH COVER
-
137186131 DECAL-CLUTCH, RETAINING BOLT, LDECAL-CLUTCH, RETAINING BOLT, L
-
147179093 DECAL, WARNING, FRONT AND REAR RACKDECAL, WARNING, FRONT AND REAR RACK
-
157186139 DECAL-WARN, TIRE/LOAD, 7/7/290DECAL-WARN, TIRE/LOAD, 7/7/290
-
167186842 DECAL-FR.CAB, SIDE, AWD, LEFT HANDDECAL-FR.CAB, SIDE, AWD, LEFT HAND
-
167186843 DECAL-FR.CAB, SIDE, AWD, RIGHT HANDDECAL-FR.CAB, SIDE, AWD, RIGHT HAND
-
177186850 DECAL-RR.CAB, SIDE, POLARIS, LEFT HANDDECAL-RR.CAB, SIDE, POLARIS, LEFT HAND
-
177186851 DECAL-RR.CAB, SIDE, POLARIS, RIGHT HANDDECAL-RR.CAB, SIDE, POLARIS, RIGHT HAND
-
187186846 DECAL-RR.CAB, TOP, LEFT HANDDECAL-RR.CAB, TOP, LEFT HAND
-
187186847 DECAL-RR.CAB, TOP, RIGHT HANDDECAL-RR.CAB, TOP, RIGHT HAND
-
197186841 DECAL-UPPER, FR.RACKDECAL-UPPER, FR.RACK
-
207186844 DECAL-SIDE, 1000XP, LEFT HANDDECAL-SIDE, 1000XP, LEFT HAND
-
207186845 DECAL-SIDE, 1000XP, RIGHT HANDDECAL-SIDE, 1000XP, RIGHT HAND
-
217179048 DECAL, "EPS"DECAL, "EPS"
