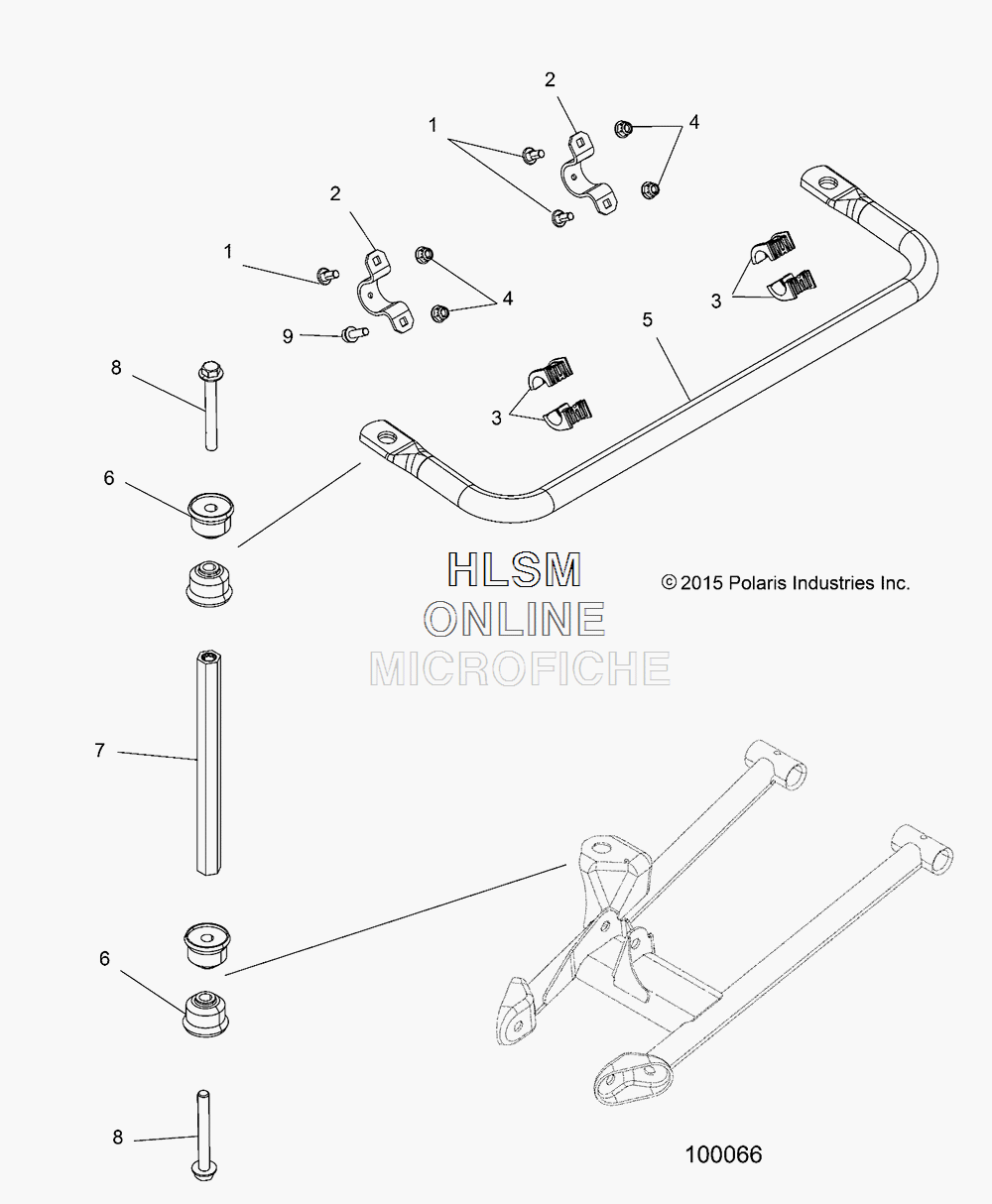

SUSPENSION - TORSION BAR для Polaris SCRAMBLER 1000 XP (HAVASU RED PEARL) [A18SVE95BR] - 2018 года выпуска
-
№АртикулНазвание
-
17519324 SCREWSCREW
-
25257028 BRACKET, STEERING BUSHING, UPPERBRACKET, STEERING BUSHING, UPPER
-
35439731 BUSHING TORSION BAR, 1 INBUSHING TORSION BAR, 1 IN
-
47547317 NUT, FLANGENUT, FLANGE
-
55336853-067 TUBE, STABILIZER, FORMED, BLACKTUBE, STABILIZER, FORMED, BLACK
-
65414877 BUSHINGBUSHING
-
75138936 ROD, LINKAGE, STABILIZERROD, LINKAGE, STABILIZER
-
87519896 SCREWSCREW
-
97516734 SCREWSCREW
