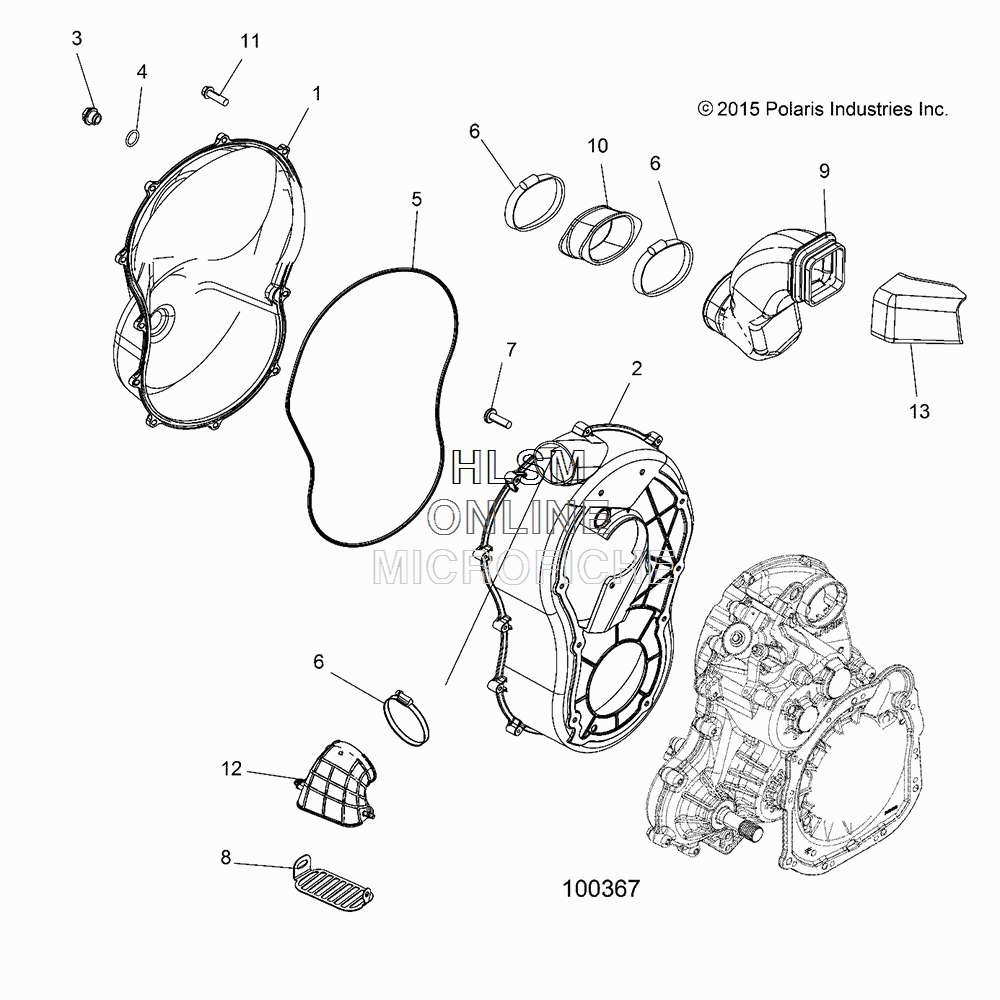

CLUTCH COVER для Polaris SPORTSMAN 1000 TOURING TRACTOR (TURBO SILVER) [A18SYS95CU] - 2018 года выпуска
-
№АртикулНазвание
-
12633919 ASM., COVER, OUTER [INCL. 3,4]ASM., COVER, OUTER [INCL. 3,4]
-
25438127 COVER, CLUTCH INNERCOVER, CLUTCH INNER
-
35434264 PLUG, DRAINPLUG, DRAIN
-
45410542 O-RINGO-RING
-
55521802 SEALSEAL
-
67081279 CLAMP, NARROW BAND, 70-90MMCLAMP, NARROW BAND, 70-90MM
-
77518914 SCREWSCREW
-
85263038-458 BRKT-BELT SCREEN,MESH,MATTE BLACKBRKT-BELT SCREEN,MESH,MATTE BLACK
-
95452432 DUCT-AIR INLET,CLUTCH,ETCDUCT-AIR INLET,CLUTCH,ETC
-
105413177 BOOT, CLUTCH, INLETBOOT, CLUTCH, INLET
-
117519849 SCREWSCREW
-
125452862 HOSE-CLUTCH,AIR OUTLETHOSE-CLUTCH,AIR OUTLET
-
135413516 BOOT, INLET, DUCTBOOT, INLET, DUCT
