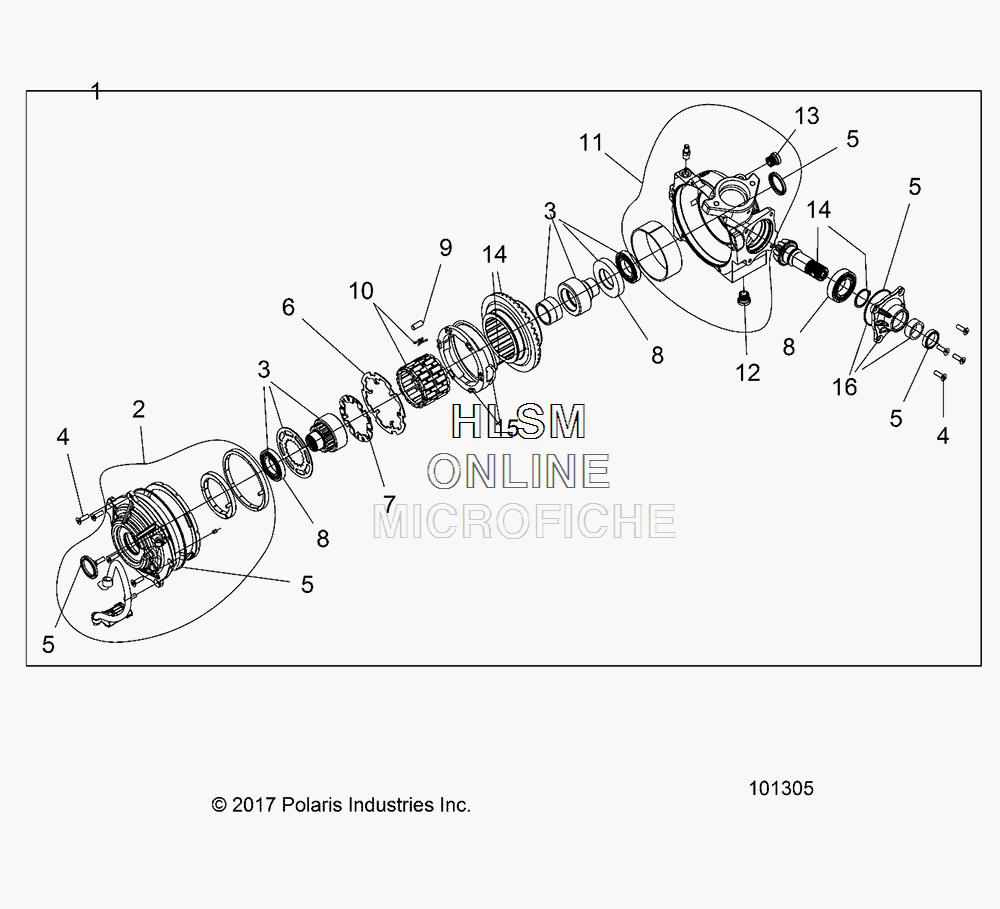

GEARCASE - INTERNAL COMPONENTS - FRONT для Polaris SPORTSMAN 1000 TOURING TRACTOR (TURBO SILVER) [A18SYS95CU] - 2018 года выпуска
-
№АртикулНазвание
-
11333965 ASM-GEARCASE,FRONT,ADC [INCL. ALL]ASM-GEARCASE,FRONT,ADC [INCL. ALL]
-
23235521 ASM., COVER OUTPUT [INCL. O-RING, SEAL, PIN, COVER, SPACER, COIL, CLIPS, 4WD COIL, WIRING]ASM., COVER OUTPUT [INCL. O-RING, SEAL, PIN, COVER, SPACER, COIL, CLIPS, 4WD COIL, WIRING]
-
33235910 ASM., OUTPUT HUB [INCL. BEARING, BUSHING, HUB, HUB PLATE, SPACER, HUB ASM.]ASM., OUTPUT HUB [INCL. BEARING, BUSHING, HUB, HUB PLATE, SPACER, HUB ASM.]
-
43235433 KIT, FASTENERS [INCL. 12 SCREWS]KIT, FASTENERS [INCL. 12 SCREWS]
-
53235434 KIT, SEAL REPAIR [INCL. ALL SEALS AND O-RINGS]KIT, SEAL REPAIR [INCL. ALL SEALS AND O-RINGS]
-
63235485 PLATE, 4WD, ARMATUREPLATE, 4WD, ARMATURE
-
73235626 PLATE, ARMATURE BDPLATE, ARMATURE BD
-
83235435 BEARINGS [INCL. ALL BALL BEARINGS]BEARINGS [INCL. ALL BALL BEARINGS]
-
93235624 CAGE ROLLERS [INCL. SET OF 24 ROLLERS]CAGE ROLLERS [INCL. SET OF 24 ROLLERS]
-
103235625 ASM., ROLL CAGE [INCL. CAGE, 24 CLIPS]ASM., ROLL CAGE [INCL. CAGE, 24 CLIPS]
-
113235436 ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]
-
122203738 DRAIN PLUGDRAIN PLUG
-
132203739 PLUG, FILLPLUG, FILL
-
143235636 ASM., GEAR HOUSING AND PINION GEAR [INCL. BEARING, SNAP RING, PIN, PINION, RING GEAR]ASM., GEAR HOUSING AND PINION GEAR [INCL. BEARING, SNAP RING, PIN, PINION, RING GEAR]
-
153235712 SPRING, TORSION, RETAINERSPRING, TORSION, RETAINER
-
163236143 ASM., COVER INPUT [INCL. COVER, SEAL, O-RING, BEARING]ASM., COVER INPUT [INCL. COVER, SEAL, O-RING, BEARING]
