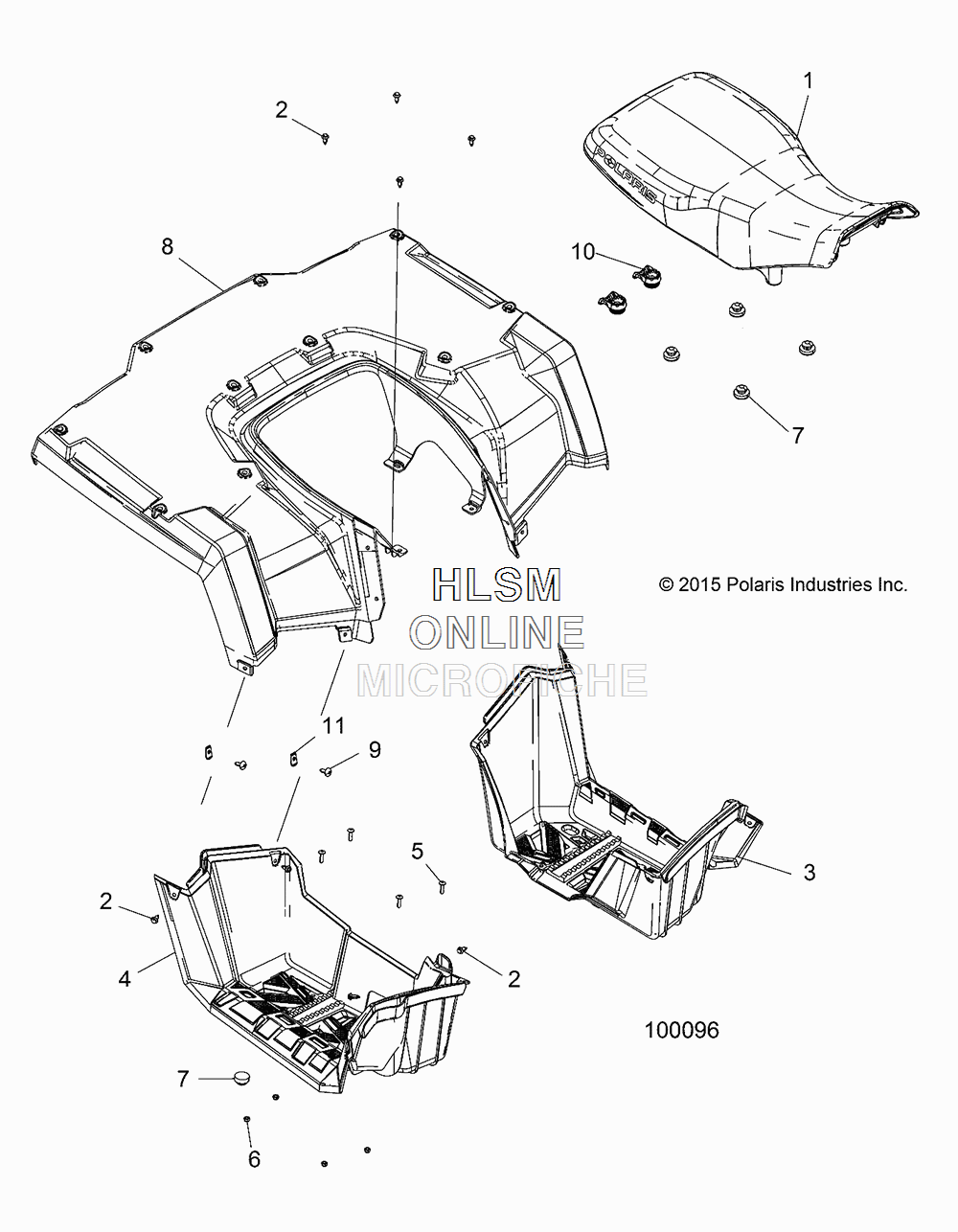

CAB - REAR - SEAT W/ FOOTWELLS для Polaris SPORTSMAN 450 HD (VELOCITY BLUE) [A18SAA50N5] - 2018 года выпуска
-
№АртикулНазвание
-
12688352-070 ASM-SEAT, 1UP, NYLON, BLK (INCL. 7)ASM-SEAT, 1UP, NYLON, BLK (INCL. 7)
-
12688353 ASM-COVER, SEAT, STX, WHITE DECALASM-COVER, SEAT, STX, WHITE DECAL
-
27661855 RIVETRIVET
-
35450523-070 FOOTWELL, BLACK, LEFT HANDFOOTWELL, BLACK, LEFT HAND
-
45450524-070 FOOTWELL, BLACK, RIGHT HANDFOOTWELL, BLACK, RIGHT HAND
-
57517230 SCREWSCREW
-
67542122 NUT, NYLOKNUT, NYLOK
-
75412067 BUMPER, RUBBERBUMPER, RUBBER
-
82636943-689 ASM-CAB RR, SVC, VELOCITY BLUE (INCL. REFLECTORS)ASM-CAB RR, SVC, VELOCITY BLUE (INCL. REFLECTORS)
-
97518280 SCREWSCREW
-
105415539 GROMMET, SEAT LATCHGROMMET, SEAT LATCH
-
117670145 NUT, U-TYPENUT, U-TYPE
