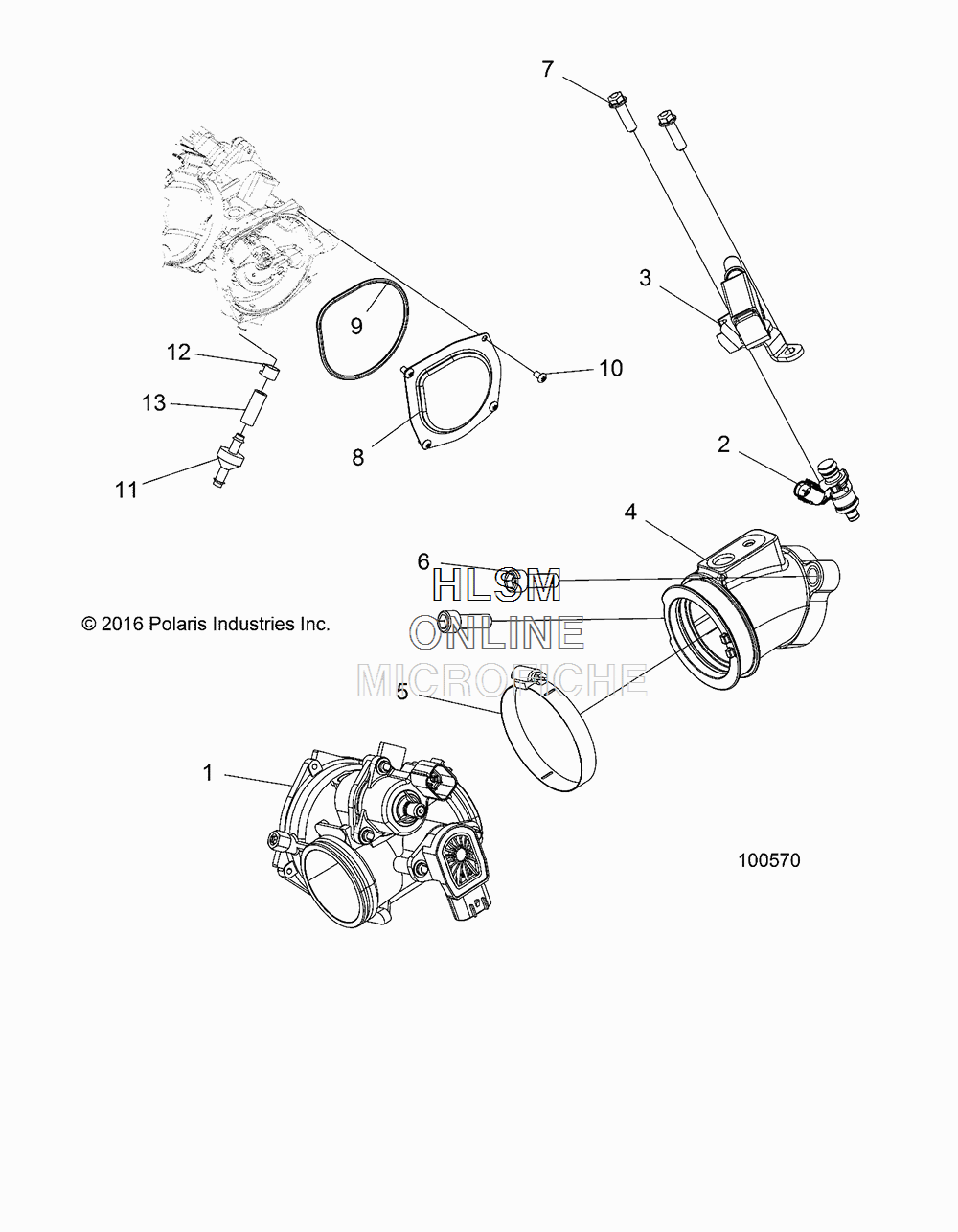

THROTTLE BODY W/ FUEL RAIL для Polaris SPORTSMAN 450 HD (VELOCITY BLUE) [A18SAA50N5] - 2018 года выпуска
-
№АртикулНазвание
-
11205009 ASM., THROTTLE BODYASM., THROTTLE BODY
-
25416413 O-RING BOSCH, EV-SE, LOWERO-RING BOSCH, EV-SE, LOWER
-
25416412 O-RING BOSCH, EV-SE, UPPERO-RING BOSCH, EV-SE, UPPER
-
22521621 INJ-FUEL, SE (INCL UPPER O-RING)INJ-FUEL, SE (INCL UPPER O-RING)
-
32521675 RAIL-FUEL, 1CYLRAIL-FUEL, 1CYL
-
45415746 ADAPTER-THROTTLE BODYADAPTER-THROTTLE BODY
-
57081623 CLAMP, HOSECLAMP, HOSE
-
67519859 SCR-SH-M8X1.25X25 8.8 ZPCSCR-SH-M8X1.25X25 8.8 ZPC
-
77518576 SCREWSCREW
-
85259059 COVER-THROTTLE BODYCOVER-THROTTLE BODY
-
95415104 GASKET-TB HOUSINGGASKET-TB HOUSING
-
107519292 SCREWSCREW
-
117052038 CHECK VALVECHECK VALVE
-
127080307 CLAMP, HOSECLAMP, HOSE
-
138450003-1525 FUEL LINE, 1/4 ID(1525 CM.)FUEL LINE, 1/4 ID(1525 CM.)
