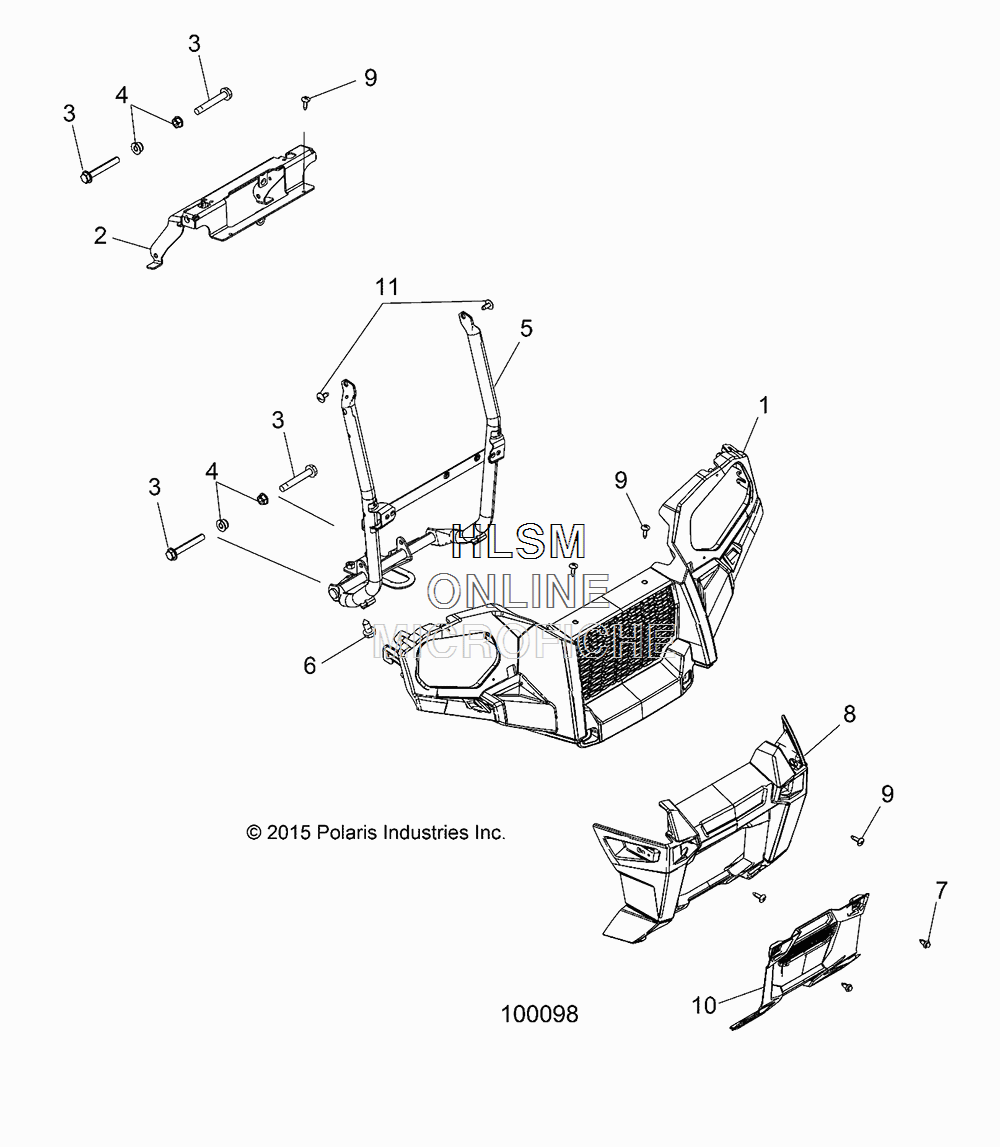

BUMPER - FRONT для Polaris SPORTSMAN 570 EFI UTE (VELOCITY BLUE) [A18SUE57N5] - 2018 года выпуска
-
№АртикулНазвание
-
15438559-070 BUMPER, FRONT FASCIA, BLACKBUMPER, FRONT FASCIA, BLACK
-
25259852 BRACKET, RADIATOR, UPPERBRACKET, RADIATOR, UPPER
-
37518341 BOLT, FLANGEBOLT, FLANGE
-
47542343 NUT, FLANGENUT, FLANGE
-
51020923-067 BUMPER, FRONT, BLACKBUMPER, FRONT, BLACK
-
67515399 SCREWSCREW
-
77661855 RIVETRIVET
-
85451442-070 COVER, FRONT, LOWER, BLACKCOVER, FRONT, LOWER, BLACK
-
97517685 SCREWSCREW
-
105451441-070 COVER, WINCH, BLACKCOVER, WINCH, BLACK
-
117519092 SCREWSCREW
