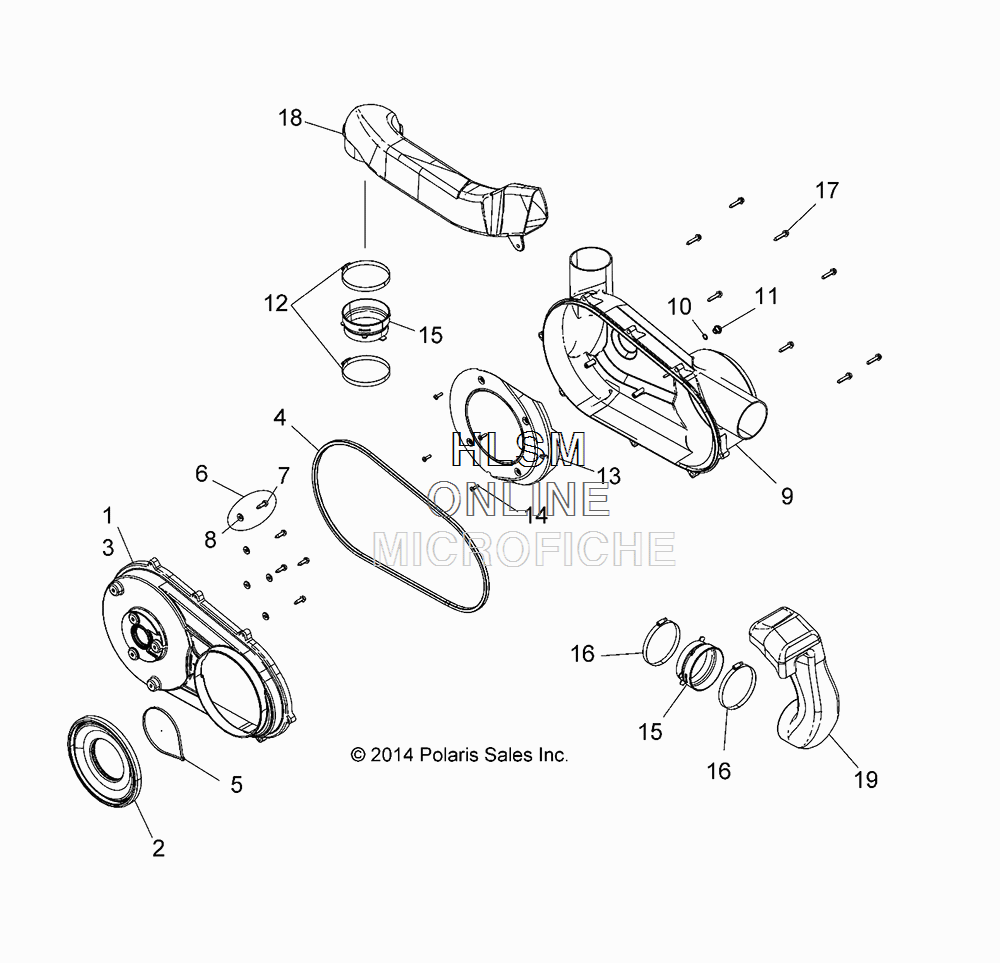

CLUTCH COVER для Polaris SPORTSMAN 570 EFI UTE (VELOCITY BLUE) [A18SUE57N5] - 2018 года выпуска
-
№АртикулНазвание
-
12634896 ASM., CLUTCH COVER, INNER (INCL. COVER, 2, 3)ASM., CLUTCH COVER, INNER (INCL. COVER, 2, 3)
-
25414727 SEAL, COVER, CLUTCH, INNERSEAL, COVER, CLUTCH, INNER
-
35450209-070 COVER, CLUTCH INNER, BLACKCOVER, CLUTCH INNER, BLACK
-
45521738 SEAL, OUTER CLUTCH COVERSEAL, OUTER CLUTCH COVER
-
57082260 STRAP-TIE, SS, 14 INSTRAP-TIE, SS, 14 IN
-
67517599 ASM., BOLT/WASHERASM., BOLT/WASHER
-
77517312 SCREWSCREW
-
87555748 WASHERWASHER
-
92634897 ASM., COVER, CLUTCH, OUTER (INCL. 10, 11, 13, 14)ASM., COVER, CLUTCH, OUTER (INCL. 10, 11, 13, 14)
-
105410542 O-RINGO-RING
-
115434264 PLUG, DRAIN, CLUTCH COVERPLUG, DRAIN, CLUTCH COVER
-
127081626 CLAMP, WORM DRIVE, 3.69 DIACLAMP, WORM DRIVE, 3.69 DIA
-
135450420 COVER, CLUTCH, INTAKE, BAFFLECOVER, CLUTCH, INTAKE, BAFFLE
-
147512026 SCREWSCREW
-
155414768 BOOT, DUCT, CLUTCHBOOT, DUCT, CLUTCH
-
167081626 CLAMP, WORM DRIVE, 3.69 DIACLAMP, WORM DRIVE, 3.69 DIA
-
177519849 SCREWSCREW
-
185451354 DUCT, AIR INLET, CLUTCHDUCT, AIR INLET, CLUTCH
-
185413465 PAD-FOAM SHIM, TRUNKPAD-FOAM SHIM, TRUNK
-
195450546 DUCT, CLUTCH OUTLETDUCT, CLUTCH OUTLET
