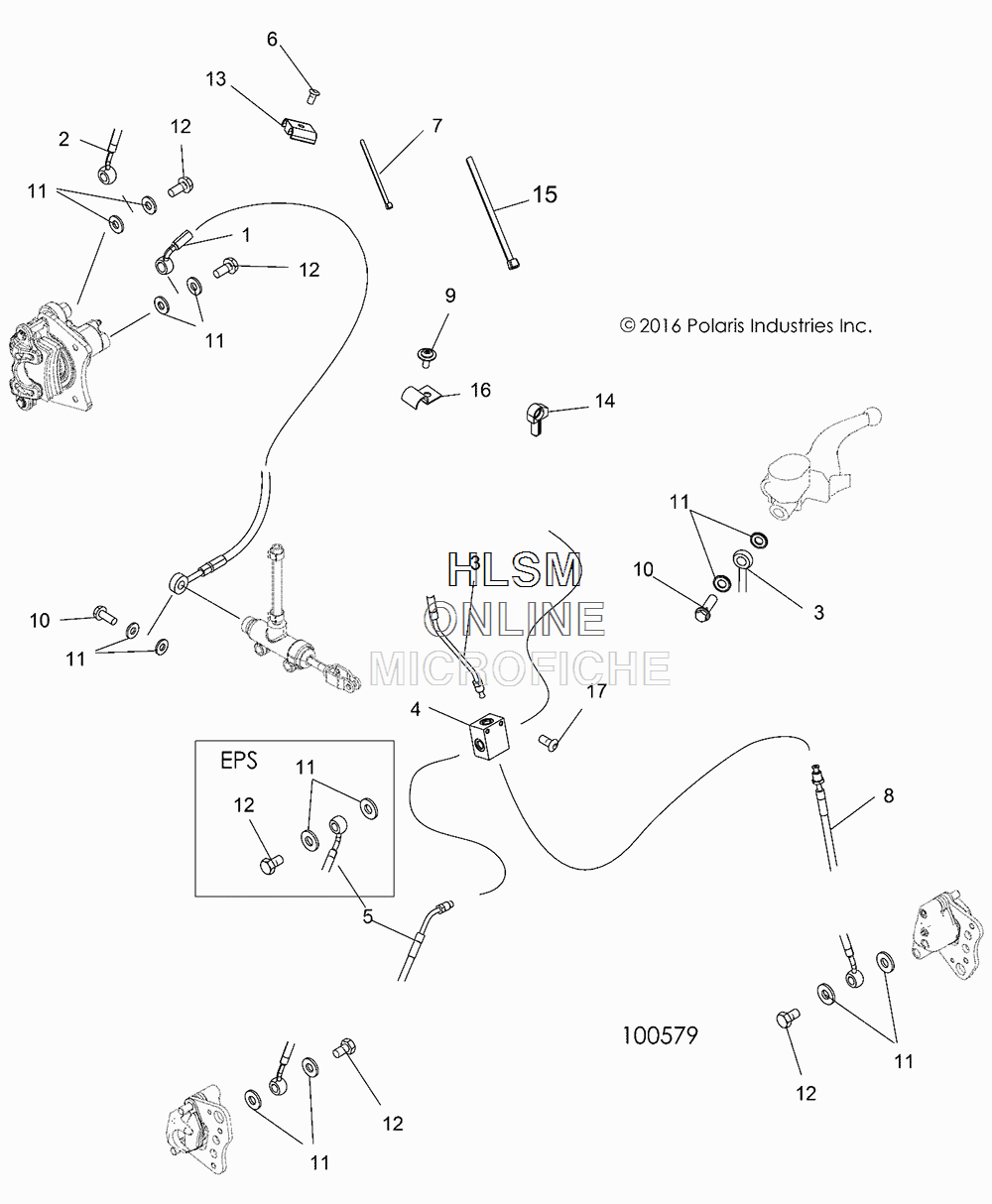

BRAKE LINES для Polaris SPORTSMAN 570 HD EPS (VELOCITY BLUE) [A18SEF57N5] - 2018 года выпуска
-
№АртикулНазвание
-
11913040 LINE-BRK, RR, 38, 70B, 20B, 90°LINE-BRK, RR, 38, 70B, 20B, 90°
-
21913039 LINE-BRK, RR, 81, 70B, 90F, 70°LINE-BRK, RR, 81, 70B, 90F, 70°
-
31913044 LINE-BRK, MCT, 22, 30B, CF1, 0°LINE-BRK, MCT, 22, 30B, CF1, 0°
-
47052292 FITTING, CROSSFITTING, CROSS
-
51913037 LINE-BRK, FR, 29, 50F, 70B, 90°LINE-BRK, FR, 29, 50F, 70B, 90°
-
67517756 SCREWSCREW
-
77080138 CABLE TIECABLE TIE
-
81913036 LINE-BRK, FL, 26, OF, 70B°LINE-BRK, FL, 26, OF, 70B°
-
97512024 SCREWSCREW
-
101910958 BOLT, BANJO, 10MM X 1.25-6GBOLT, BANJO, 10MM X 1.25-6G
-
115413212 SEALSEAL
-
121910499 BOLT, BANJO, 10MMX1.00BOLT, BANJO, 10MMX1.00
-
137670126 CLIP, RETAINING, DUAL .250 IN LINECLIP, RETAINING, DUAL .250 IN LINE
-
147670102 CLIPCLIP
-
157080761 STRAP-PANDUIT, 14 INSTRAP-PANDUIT, 14 IN
-
167081940 CLIP, HALFCLIP, HALF
-
177512084 SCREWSCREW
