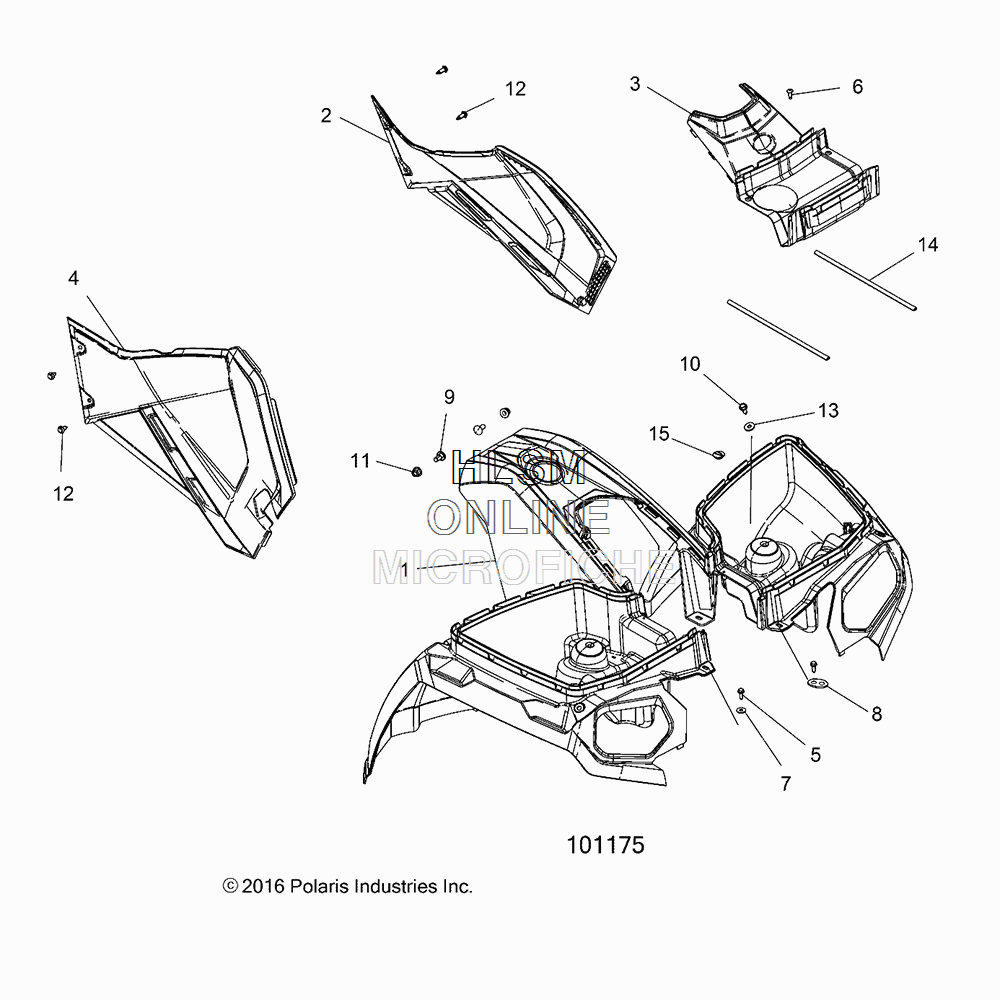

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 570 HD EPS (VELOCITY BLUE) [A18SEF57N5] - 2018 года выпуска
-
№АртикулНазвание
-
17080356 PANDUIT CABLE TIEPANDUIT CABLE TIE
-
12637031-689 ASM-CAB FR, SVC, TPO, VELOCITY BLUE (INCL. WARNING DECALS)ASM-CAB FR, SVC, TPO, VELOCITY BLUE (INCL. WARNING DECALS)
-
25450627-689 PANEL-SIDE, LEFT HAND, TPO, VELOCITY BLUEPANEL-SIDE, LEFT HAND, TPO, VELOCITY BLUE
-
35439049-689 COVER-FRONT, TPO, VELOCITY BLUECOVER-FRONT, TPO, VELOCITY BLUE
-
42637032-689 ASM-PANEL/SHIELD, RIGHT HAND, TPO, VELOCITY BLUEASM-PANEL/SHIELD, RIGHT HAND, TPO, VELOCITY BLUE
-
57512232 SCREWSCREW
-
67519045 SCREWSCREW
-
77555859 WASHER, FLATWASHER, FLAT
-
85258497 BRACKET, PLUG MOUNTBRACKET, PLUG MOUNT
-
97512193 BOLTBOLT
-
107515399 SCREWSCREW
-
117542153 NUT, FLANGED, NYLOKNUT, FLANGED, NYLOK
-
127661855 RIVETRIVET
-
137555960 WASHER, FLATWASHER, FLAT
-
145521697-350 SEAL, BULBSEAL, BULB
-
155412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
