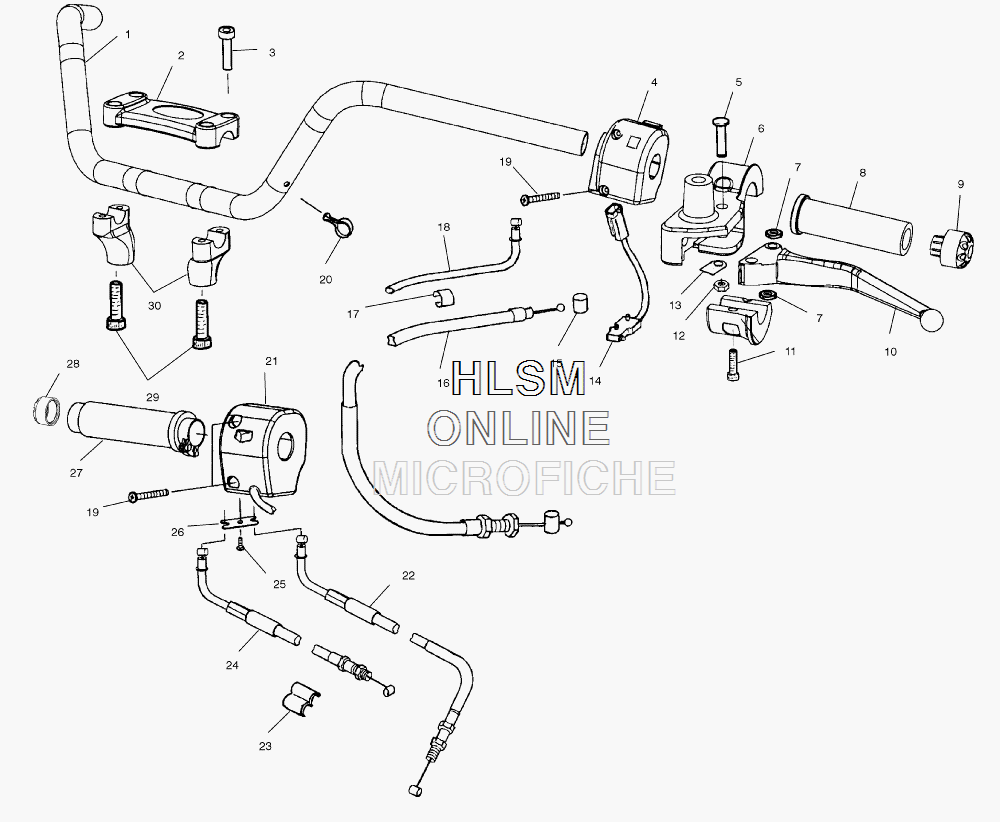

HANDLEBAR для Polaris STANDARD CRUISER (49 STATE) [V99CB15DAZ] - 1999 года выпуска
-
№АртикулНазвание
-
15243728 HANDLEBAR-STD CRUISERHANDLEBAR-STD CRUISER
-
25131499 CLAMP,H'BAR CAP SCLAMP,H'BAR CAP S
-
37517361 SCREWSCREW
-
44110240 SW, LEFT HAND,HANDCONTROL,W/PTSW, LEFT HAND,HANDCONTROL,W/PT
-
52201229 KIT,HARDWARE,LEVER CLUTCHKIT,HARDWARE,LEVER CLUTCH
-
55020946 PIN,CLUTCH LEVER PIVOTPIN,CLUTCH LEVER PIVOT
-
65131654 BRKT,CLUTCH/MIRROR, LEFT HANDBRKT,CLUTCH/MIRROR, LEFT HAND
-
85411256 GRIP, LEFT HAND,H'BARGRIP, LEFT HAND,H'BAR
-
95432692 CAP, LEFT HAND,H'BAR ENDCAP, LEFT HAND,H'BAR END
-
105131562 LEVER,HAND,CLUTCH, LEFT HAND,MACHLEVER,HAND,CLUTCH, LEFT HAND,MACH
-
112201230 KIT,HARDWARE,CLAMP (INCL. CLAMP AND SCREWS)KIT,HARDWARE,CLAMP (INCL. CLAMP AND SCREWS)
-
115131655 CAP,CLUTCH/MIRROR, LEFT HANDCAP,CLUTCH/MIRROR, LEFT HAND
-
117517630 SCREW,SOCHD,M6X20SCREW,SOCHD,M6X20
-
144110257 SWITCH,MICRO,CLUTCH SAFETYSWITCH,MICRO,CLUTCH SAFETY
-
155433071 BUSHING-CLUTCH CABLE,UPPERBUSHING-CLUTCH CABLE,UPPER
-
167080676 CABLE,CLUTCH SCABLE,CLUTCH S
-
175433070 CLIP,CLUTCH,FAST IDLE CABLESCLIP,CLUTCH,FAST IDLE CABLES
-
187080716 CABLE,FAST IDLECABLE,FAST IDLE
-
197517366 SCREW,PHPNH,M5X25SCREW,PHPNH,M5X25
-
205433140 DART,HANDLEBAR,1/2'DART,HANDLEBAR,1/2'
-
214110241 SW, RIGHT HAND,HANDCONTROL,W/PTSW, RIGHT HAND,HANDCONTROL,W/PT
-
227080724 CABLE,THROTTLE,PUSHCABLE,THROTTLE,PUSH
-
235433039 CLIP,THROTTLECABLES,DUALCLIP,THROTTLECABLES,DUAL
-
247080725 CABLE,THROTTLECABLE,THROTTLE
-
257517420 SCREW SSCREW S
-
265242448 RETAINER, RIGHT HAND,THROT.CABLERETAINER, RIGHT HAND,THROT.CABLE
-
275411255 GRIP,H'BAR,THROTTLEGRIP,H'BAR,THROTTLE
-
285432715 CAP, RIGHT HAND,H'BAR ENDCAP, RIGHT HAND,H'BAR END
-
297517586 SCR-SOCHD,M10X60,0600084SCR-SOCHD,M10X60,0600084
-
305131501 RISER,H'BAR SRISER,H'BAR S
