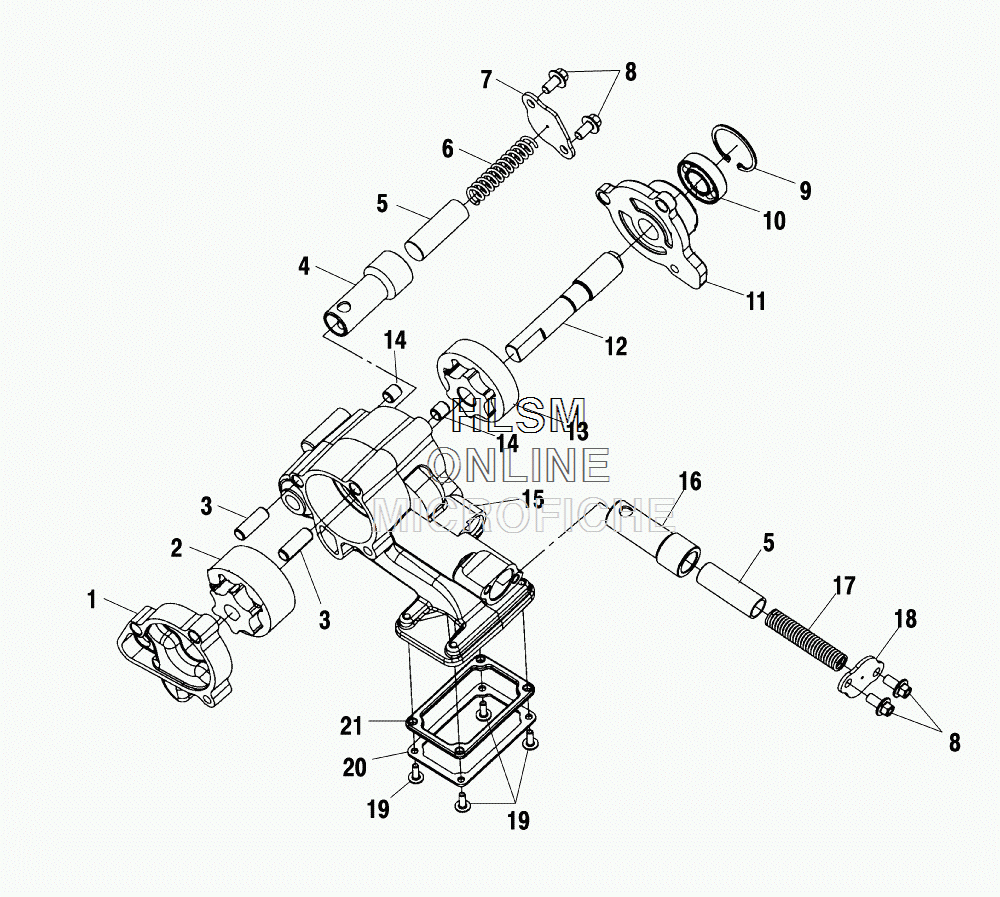

OIL PUMP для Polaris STANDARD CRUISER (49 STATE) [V99CB15DAZ] - 1999 года выпуска
-
№АртикулНазвание
-
15132174 OIL,PUMP BODY,BASE,MACHINEDOIL,PUMP BODY,BASE,MACHINED
-
22540011 ROTOR,SET,COOLINGROTOR,SET,COOLING
-
37663014 DWL,HOL,M9X26DWL,HOL,M9X26
-
42540019 BODY,PRESS.RELIEF,COOLINGBODY,PRESS.RELIEF,COOLING
-
52540015 PISTON,PRESS.RELIEF,COOLINGPISTON,PRESS.RELIEF,COOLING
-
62540014 SPRING,PRESS.RELIEF,COOLINGSPRING,PRESS.RELIEF,COOLING
-
75211898 PLATE,PRD.RETAINER #1PLATE,PRD.RETAINER #1
-
87517257 SCREW,HXFLGHD,M6X12SCREW,HXFLGHD,M6X12
-
97710403 RETAINERRETAINER
-
103513517 BEARING,BALLBEARING,BALL
-
115132319 COVER-OIL PUMP,MACHCOVER-OIL PUMP,MACH
-
122540024 SHAFT,OIL PUMPSHAFT,OIL PUMP
-
132540010 ROTOR,SET,LUBRICATIONROTOR,SET,LUBRICATION
-
147663007 DOWEL,HOL,M9X10DOWEL,HOL,M9X10
-
155132291 BODY,OIL PUMP,MACHBODY,OIL PUMP,MACH
-
162540009 BODY,PRESS.RELIEF,LUBRICATEBODY,PRESS.RELIEF,LUBRICATE
-
172540018 SPRING,PRESS.RELIEF,LUBRICSPRING,PRESS.RELIEF,LUBRIC
-
185211899 PLATE,PRD.RETAINER,#2PLATE,PRD.RETAINER,#2
-
197517275 SCREW,M4X12,PNWSHRIGHT HANDD.SCREW,M4X12,PNWSHRIGHT HANDD.
-
205242999 PLATE-SUPPORT,OIL PUMP SCREENPLATE-SUPPORT,OIL PUMP SCREEN
-
212540020 SCREEN,OIL INTAKESCREEN,OIL INTAKE
-
212540060 ASM., OIL PUMPASM., OIL PUMP
