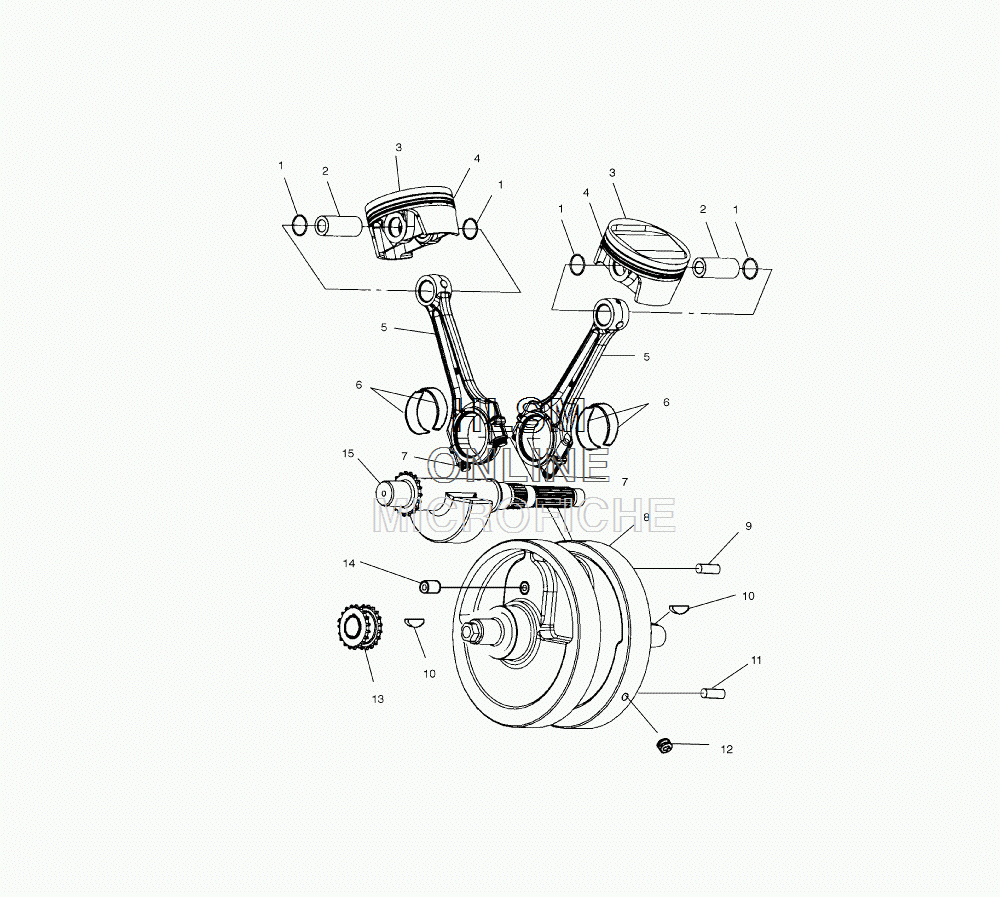

CRANKSHAFT для Polaris STANDARD CRUISER (CANADA) [V01CB15CC] - 2001 года выпуска
-
№АртикулНазвание
-
17710479 C-CLIP,RND (2)C-CLIP,RND (2)
-
25131860 PIN,WRISTPIN,WRIST
-
33021082 PISTON,ASM. (INCL. PISTON, RINGS, CLIPS, PIN)PISTON,ASM. (INCL. PISTON, RINGS, CLIPS, PIN)
-
42201434 RING,PISTON,KIT (INCL. TOP, MIDDLE, BOTTOM RINGS)RING,PISTON,KIT (INCL. TOP, MIDDLE, BOTTOM RINGS)
-
53023007 CONNECT.ROD ASM. (INCL. 7)CONNECT.ROD ASM. (INCL. 7)
-
63585707 BEARING,RODBEARING,ROD
-
77517269 SCREW,CAPSCREW,CAP
-
82203143 KIT, CRANKSHAFT (INCL. 10,12,13,14)KIT, CRANKSHAFT (INCL. 10,12,13,14)
-
97661045 PIN-SOL,M8X20,0600093PIN-SOL,M8X20,0600093
-
107721122 KEY,WOODRUFFKEY,WOODRUFF
-
117663010 PIN,SOL,M5X12PIN,SOL,M5X12
-
127051538 PLUG,M8X6,PLUG,M8X6,
-
133221083 SPROCKET,19T,4W,DUALSPROCKET,19T,4W,DUAL
-
147051528 PLUG,M14X10PLUG,M14X10
-
155132164 SHAFT-BALANCE,MACHSHAFT-BALANCE,MACH
