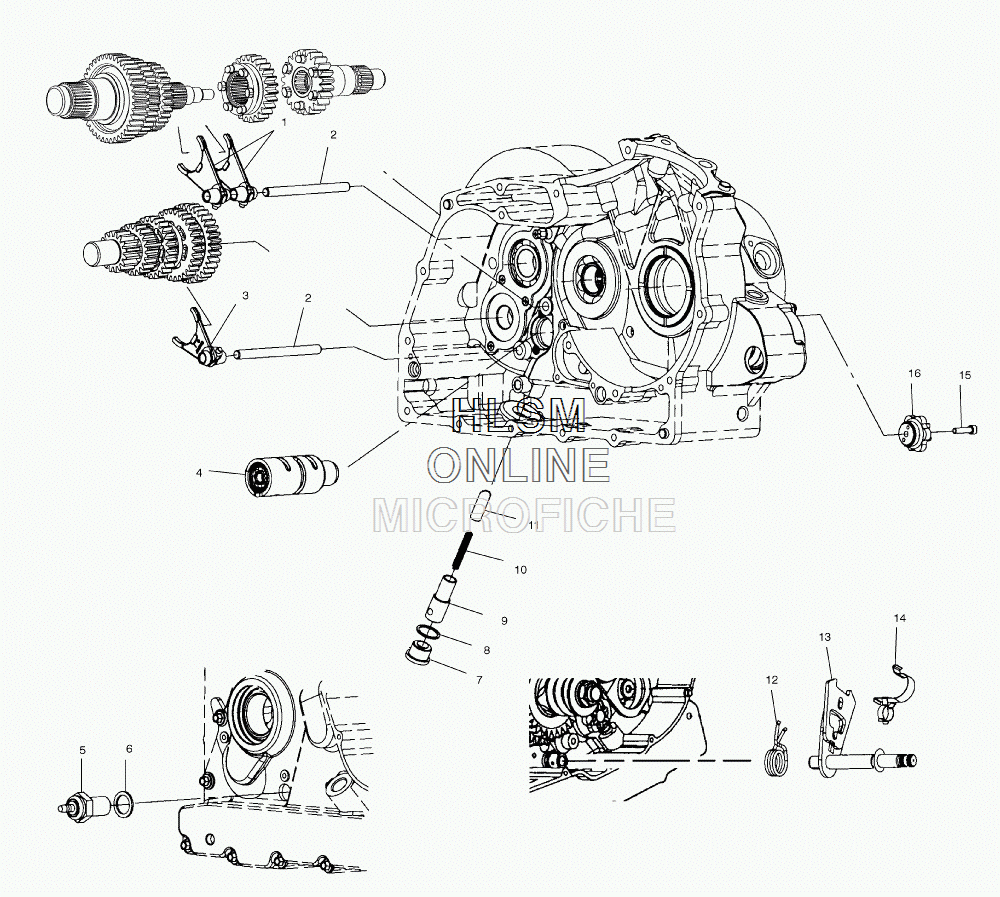

SHIFT FORKS/DRUM для Polaris STANDARD CRUISER (CANADA) [V01CB15CC] - 2001 года выпуска
-
№АртикулНазвание
-
15132539 FORK-SHIFT,MAINSHAFT,MACH,12MMFORK-SHIFT,MAINSHAFT,MACH,12MM
-
25132177 RAIL,SHIFT FOTK SHAFT,12MMRAIL,SHIFT FOTK SHAFT,12MM
-
35132540 FORK-SHIFT,CNTRSHAFT,MACH,12MMFORK-SHIFT,CNTRSHAFT,MACH,12MM
-
41341346 ASM-SHIFTER DRUM (INCL. BEARING, DRUM, PINS)ASM-SHIFTER DRUM (INCL. BEARING, DRUM, PINS)
-
43513518 BEARING,BALL,10X30X9BEARING,BALL,10X30X9
-
45131555 DRUM,SHIFTERDRUM,SHIFTER
-
47661023 PIN,SOL,M4X8PIN,SOL,M4X8
-
67556154 WHSR,FL,.562X.402X.050WHSR,FL,.562X.402X.050
-
75132876 PLUG,DRAINPLUG,DRAIN
-
85412020 O-RINGO-RING
-
95010464 SLEEVE,DETENT PLUNGERSLEEVE,DETENT PLUNGER
-
107041581 SPRING,DETENTSPRING,DETENT
-
115132541 PLUNGER-DETENTPLUNGER-DETENT
-
127041583 SPRING,SHIFTERSPRING,SHIFTER
-
131341317 RATCHET SHIFTER,ASM S (INCL. 12,14)RATCHET SHIFTER,ASM S (INCL. 12,14)
-
147041869 SPRING,SHIFTER RATCHETSPRING,SHIFTER RATCHET
-
157517259 SCREW,SOCHD,SCREW,SOCHD,
-
165132538 STAR-SHIFT, MAINSHAFT, MACH SSTAR-SHIFT, MAINSHAFT, MACH S
