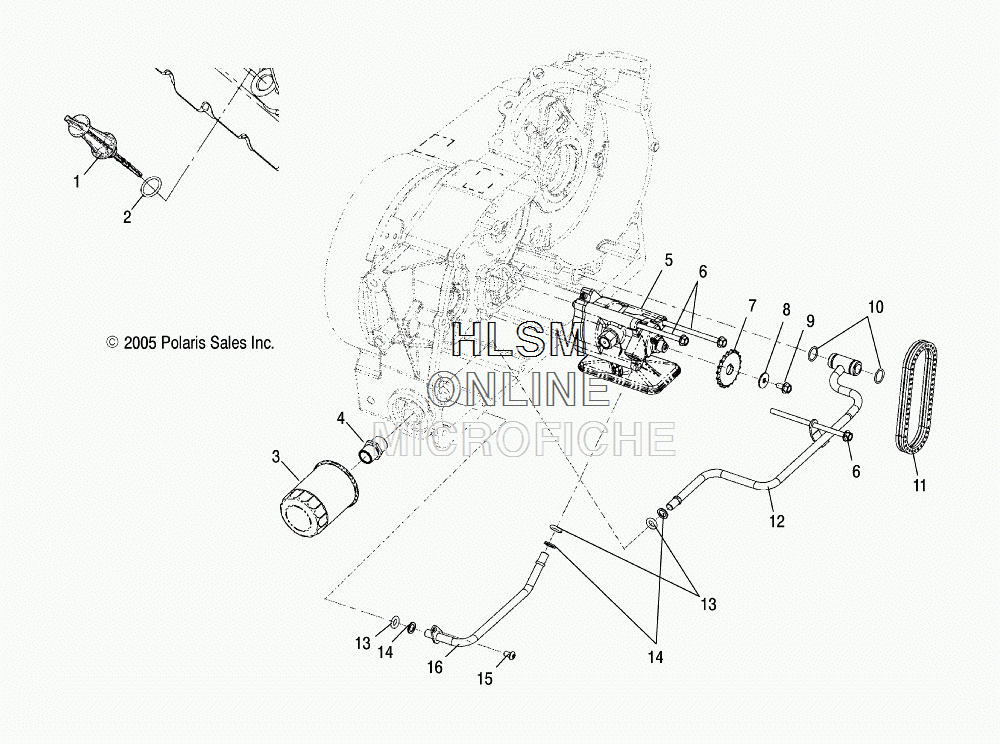

ENGINE- OIL PUMP MOUNTING для Polaris HAMMER (CALIFORNIA) [V07HB26LA] - 2007 года выпуска
-
№АртикулНазвание
-
15434349 DIPSTICK, OIL FILLDIPSTICK, OIL FILL
-
25411331 O-RINGO-RING
-
32540086 FILTER, OILFILTER, OIL
-
42540115 NIPPLENIPPLE
-
52520620 ASM., OIL PUMP W/JETASM., OIL PUMP W/JET
-
67517256 SCREWSCREW
-
73222150 SPROCKET, 23TSPROCKET, 23T
-
87556054 WASHER, FLATWASHER, FLAT
-
97517257 SCREWSCREW
-
105412002 O-RINGO-RING
-
113221173 CHAINCHAIN
-
122540076 TUBE, OIL, FILTER/CRANKCASETUBE, OIL, FILTER/CRANKCASE
-
135411231 O-RINGO-RING
-
147556026 WASHERWASHER
-
157517406 SCREWSCREW
-
162540095 TUBE, OIL, OUTLETTUBE, OIL, OUTLET
