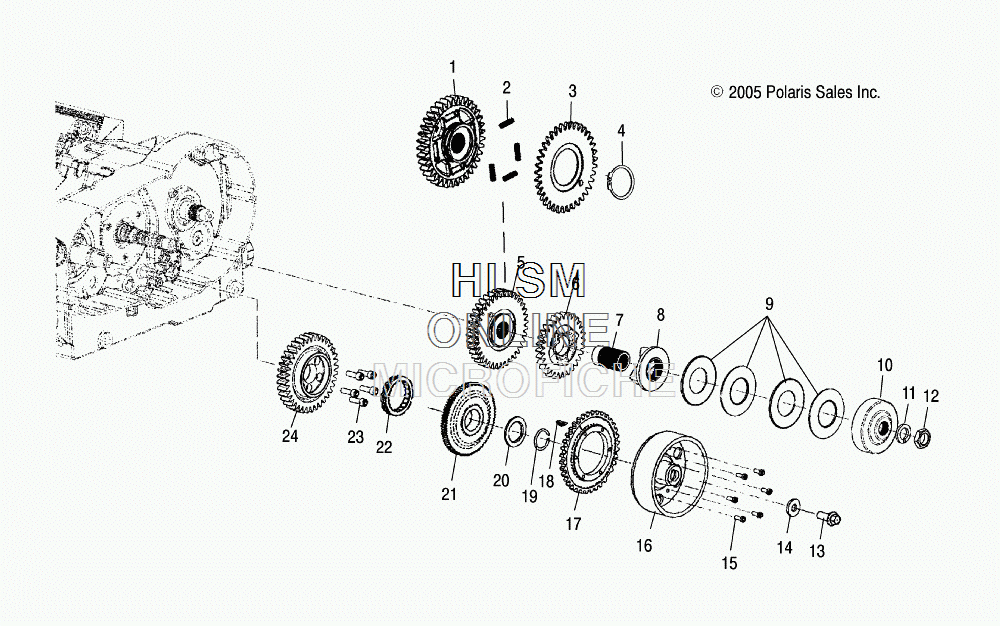

ENGINE- PRIMARY DRIVE для Polaris HAMMER (CALIFORNIA) [V07HB26LA] - 2007 года выпуска
-
№АртикулНазвание
-
16230272 GEAR, SPLIT, DRIVEGEAR, SPLIT, DRIVE
-
27042096 SPRING, SPLIT GEARSPRING, SPLIT GEAR
-
36230273 GEAR, SPLIT, BACKLASHGEAR, SPLIT, BACKLASH
-
47710529 RING, RETAININGRING, RETAINING
-
51341505 ASM., SPLIT GEAR, 37T (INCL. 1-4)ASM., SPLIT GEAR, 37T (INCL. 1-4)
-
66230212 GEAR, COMPENSATORGEAR, COMPENSATOR
-
75133045 SLEEVE, COMPENSATORSLEEVE, COMPENSATOR
-
85133044 SLIDER, COMPENSATORSLIDER, COMPENSATOR
-
97042019 SPRING, BELLEVILLE COMPENSATORSPRING, BELLEVILLE COMPENSATOR
-
105133085 RETAINER, COMPENSATORRETAINER, COMPENSATOR
-
117556166 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
127547019 NUTNUT
-
137518008 BOLT, OIL JETBOLT, OIL JET
-
147555987 WASHER, FLATWASHER, FLAT
-
157517882 SCREWSCREW
-
163021211 FLYWHEELFLYWHEEL
-
173021197 ADAPTOR, FLYWHEELADAPTOR, FLYWHEEL
-
187721122 KEY, WOODRUFFKEY, WOODRUFF
-
197710490 RING, RETAINING, 35 DEGREERING, RETAINING, 35 DEGREE
-
207556237 WASHER, FLATWASHER, FLAT
-
211015167 ASM., CRANKSHAFT GEAR STARTER DRIVEASM., CRANKSHAFT GEAR STARTER DRIVE
-
224060156 CLUTCH, STARTER DRIVECLUTCH, STARTER DRIVE
-
237517260 SCREWSCREW
-
246230271 GEAR, CRANKSHAFTGEAR, CRANKSHAFT
