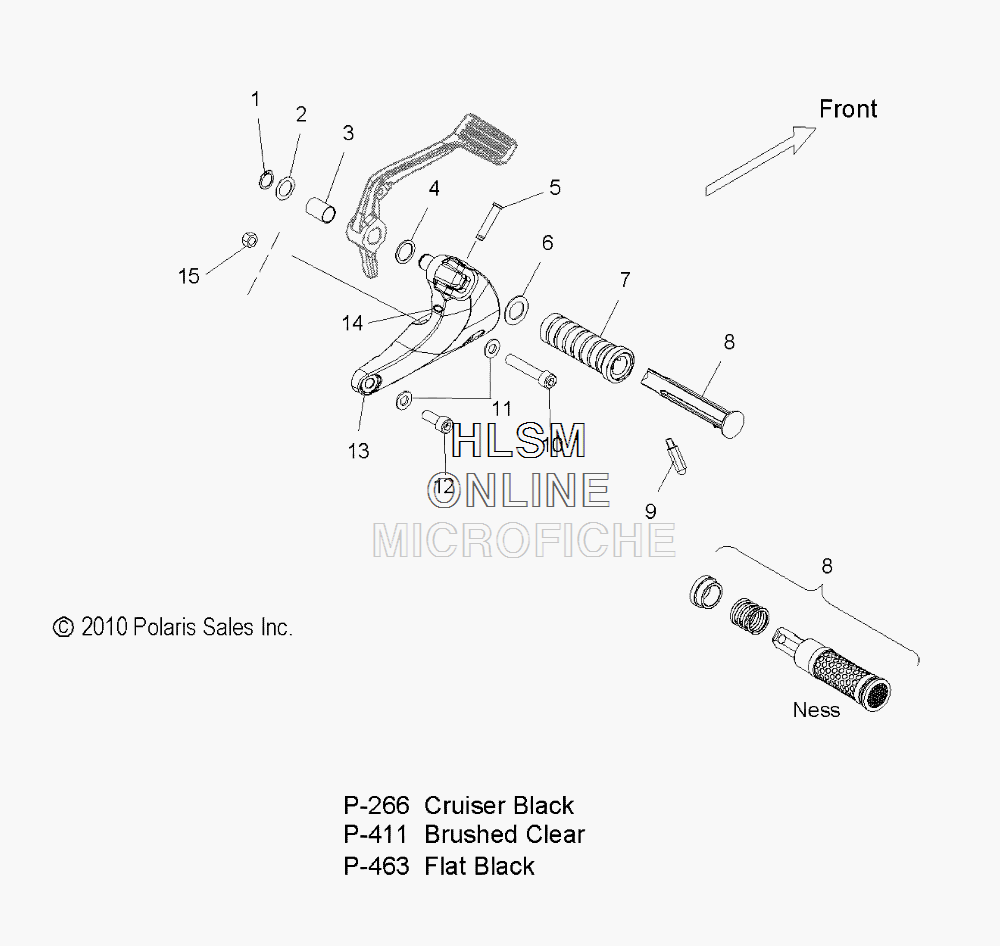

FOOTPEG AND FLOORBOARD (RIGHT) для Polaris VEGAS [V11GA36] - 2011 года выпуска
-
№АртикулНазвание
-
17710499 RING, RETAINING, EXTERNAL, 14.7X1RING, RETAINING, EXTERNAL, 14.7X1
-
27556075 WASHER, FLAT, 25.4X.46X16.7WASHER, FLAT, 25.4X.46X16.7
-
33514490 BUSHING, SHIFT PEDALBUSHING, SHIFT PEDAL
-
47556273 WASHER, WAVEWASHER, WAVE
-
57661980 PIN, PIVOTPIN, PIVOT
-
67556274 WASHER, PIVOTWASHER, PIVOT
-
75412256 PAD, FOOTPEGPAD, FOOTPEG
-
85136036-411 FOOTPEG (RIGHT)FOOTPEG (RIGHT)
-
95133539 FEELER, FOOTPEGFEELER, FOOTPEG
-
107518146 SCREW-SOCHD, M10X55SCREW-SOCHD, M10X55
-
117556234 WASHER, FLAT, 10X2WASHER, FLAT, 10X2
-
127518101 SCREW-SOCHD, M10X25SCREW-SOCHD, M10X25
-
135136081-266 SUPPORT, FOOTPEG (RIGHT) (CRUISER BLACK)SUPPORT, FOOTPEG (RIGHT) (CRUISER BLACK)
-
147710644 RING, RETAININGRING, RETAINING
-
157547039 NUTNUT
