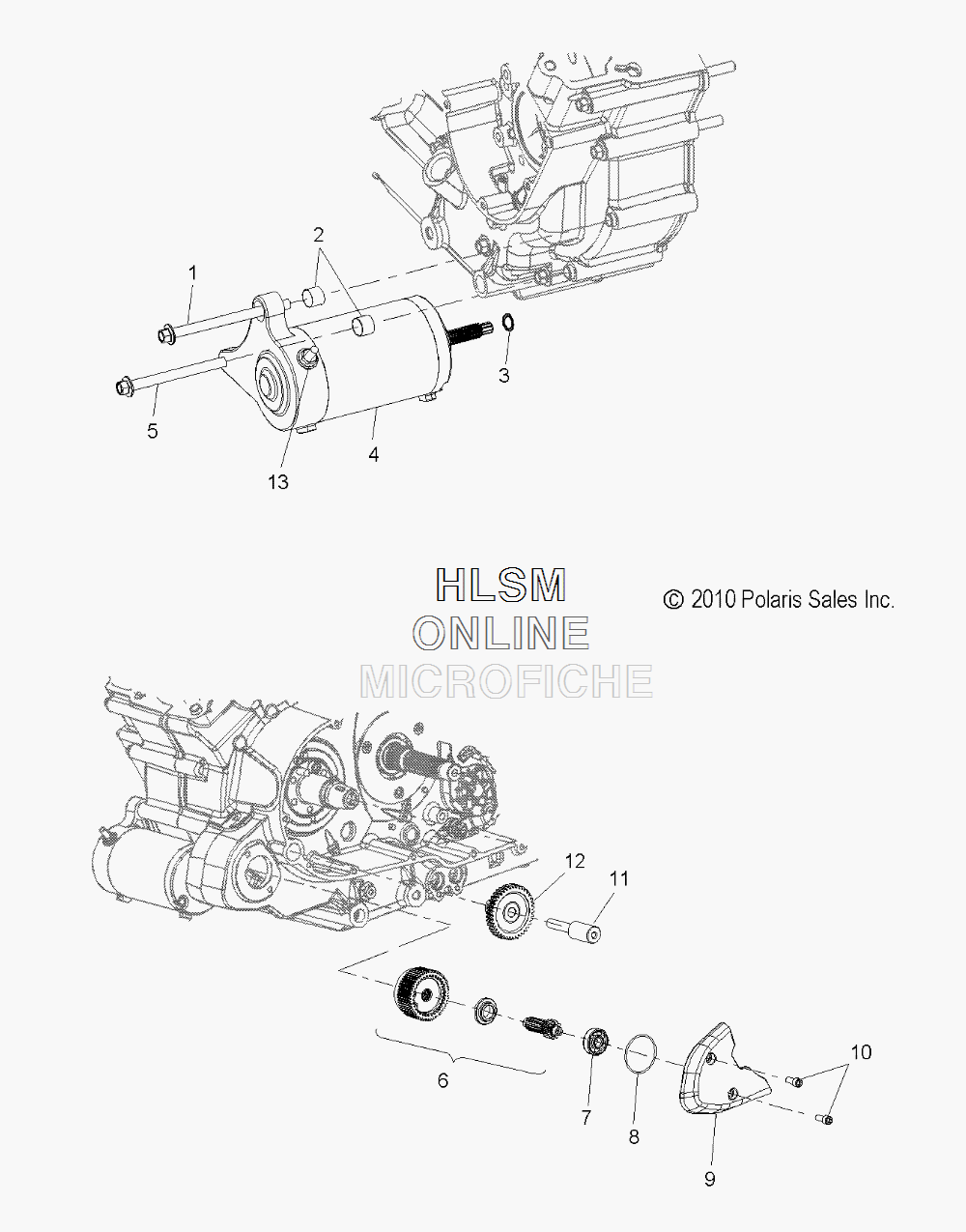

STARTING SYSTEM для Polaris VEGAS [V11GA36] - 2011 года выпуска
-
№АртикулНазвание
-
17517409 SCREWSCREW
-
27663005 DOWEL, HOL, M11X10DOWEL, HOL, M11X10
-
35412175 O-RINGO-RING
-
44012419 STARTER (BLACK)STARTER (BLACK)
-
57517719 SCREWSCREW
-
63234256 CLUTCH, TORQUE LIMITING, 57/11TOOTHCLUTCH, TORQUE LIMITING, 57/11TOOTH
-
73513518 BEARING, BALL, 10X30X9BEARING, BALL, 10X30X9
-
85412531 O-RING, 41.00X1.778, 0600083O-RING, 41.00X1.778, 0600083
-
95134218 CAP, BEARINGCAP, BEARING
-
107517272 SCREW, SOCHD, M6X15SCREW, SOCHD, M6X15
-
115020905 SHAFT, IDLER, MOUNTINGSHAFT, IDLER, MOUNTING
-
126230297 GEAR, IDLERGEAR, IDLER
-
137547091 NUT, FLEXLOCNUT, FLEXLOC
