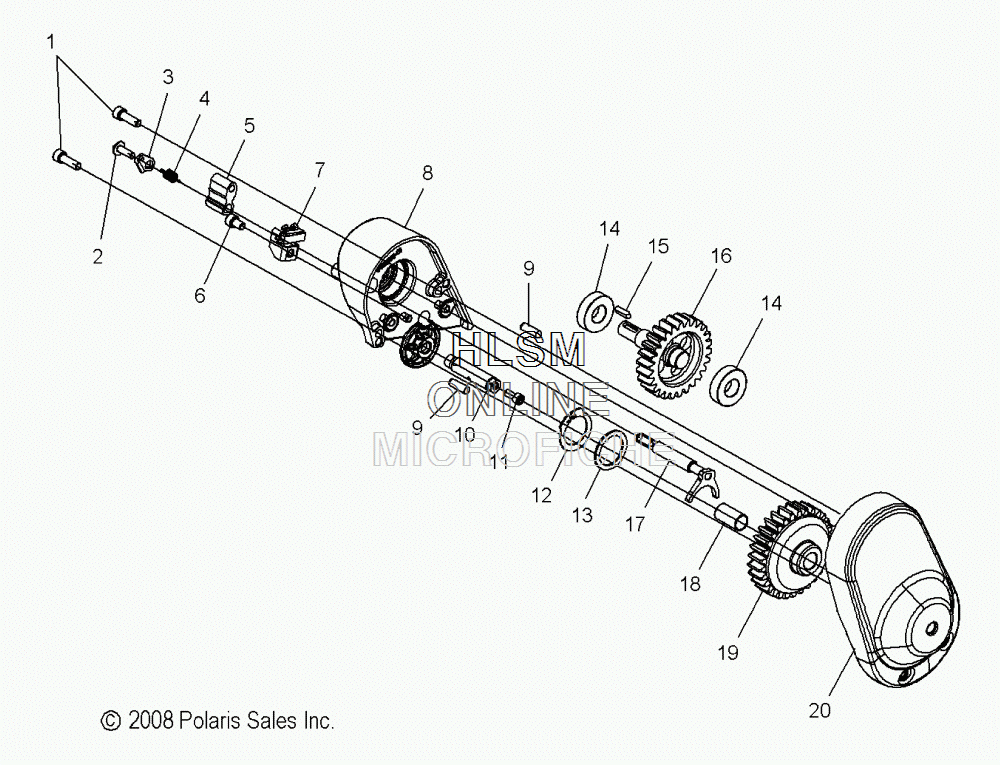

REVERSE DRIVE ASM. - UPPER для Polaris VISION TOUR [V14SW36] - 2014 года выпуска
-
№АртикулНазвание
-
-1203726 ASM., UPPER REVERSE DRIVE MOTORASM., UPPER REVERSE DRIVE MOTOR
-
17517384 SCREWSCREW
-
27518570 SCREWSCREW
-
35252317 ARM, RETURN SPRING IDLERARM, RETURN SPRING IDLER
-
47043428 SPRING, IDLER RETURNSPRING, IDLER RETURN
-
55136506 RISER, SHIFT FORKRISER, SHIFT FORK
-
67517337 SCREWSCREW
-
72411220 ASM., SWITCH, LOCKOUTASM., SWITCH, LOCKOUT
-
85136232 HOUSING, CASE, INNER (INCL. 9)HOUSING, CASE, INNER (INCL. 9)
-
93234330 PINPIN
-
105136235 SHAFT, IDLERSHAFT, IDLER
-
117517276 SCREWSCREW
-
127710616 RING, RETAININGRING, RETAINING
-
137556467 WASHER, FLATWASHER, FLAT
-
143514628 BEARING, SEALEDBEARING, SEALED
-
157710623 KEYKEY
-
163234833 GEAR, PINION, 26TGEAR, PINION, 26T
-
171016511 FORK, SHIFTFORK, SHIFT
-
193234582 GEAR, IDLER, 30T (INCL. 18)GEAR, IDLER, 30T (INCL. 18)
-
205136231 HOUSING, COVER, OUTERHOUSING, COVER, OUTER
