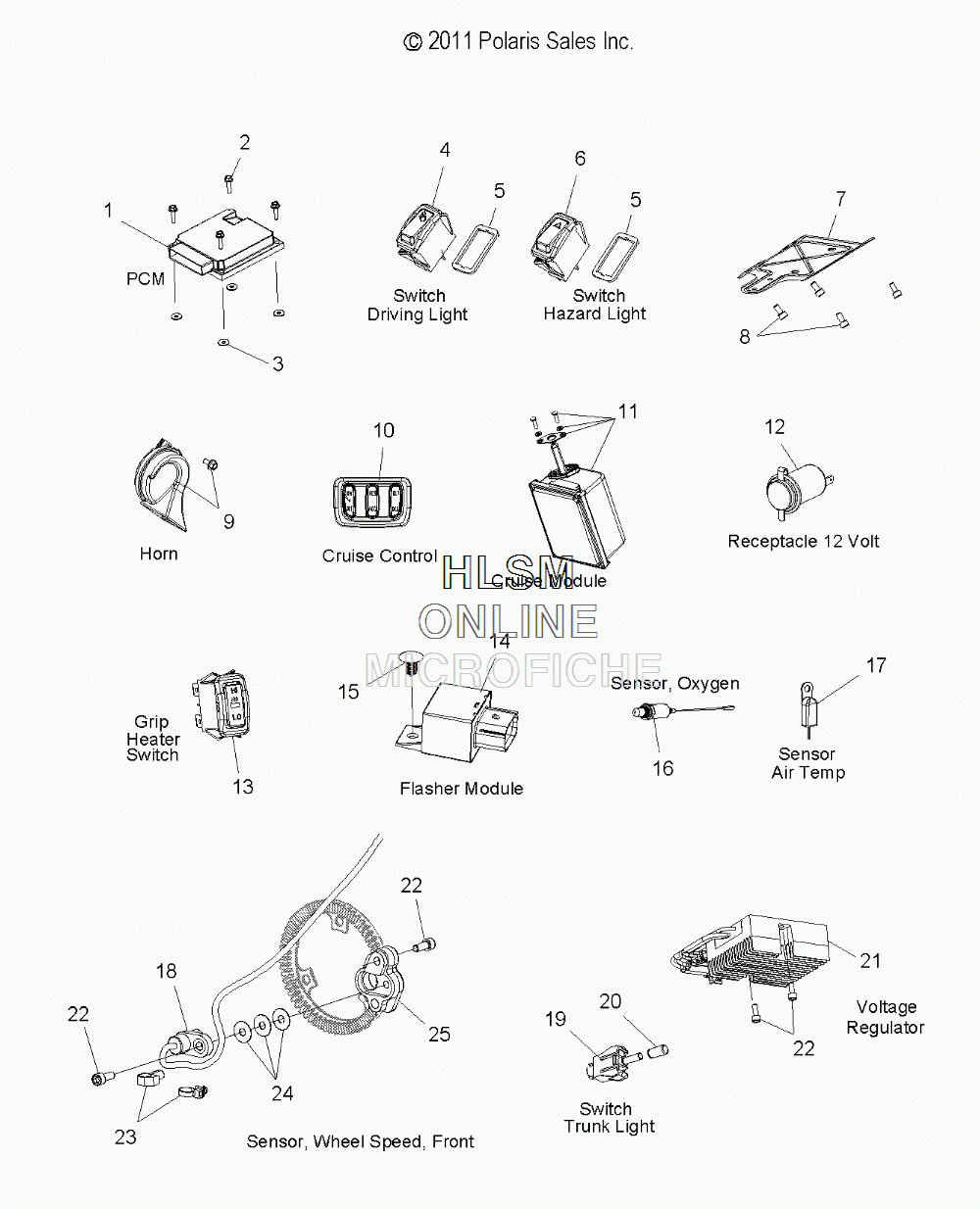

SWITCHES- SENSORS AND COMPONENTS 2 для Polaris VISION TOUR [V14SW36] - 2014 года выпуска
-
№АртикулНазвание
-
14013160 PCM, SERVICEPCM, SERVICE
-
27518329 SCREWSCREW
-
37556064 WASHER, FLATWASHER, FLAT
-
44011317 SWITCH, DRIVING LIGHTSWITCH, DRIVING LIGHT
-
55521757 GASKET, SWITCHGASKET, SWITCH
-
64011318 SWITCH, HAZARD LIGHTSWITCH, HAZARD LIGHT
-
75248079-408 BRACKET, CONNECTOR, ZINC/BLACKBRACKET, CONNECTOR, ZINC/BLACK
-
87517739 SCREWSCREW
-
94011489 HORNHORN
-
97518043 SCREWSCREW
-
104013049 SWITCH, CRUISE, BLACKSWITCH, CRUISE, BLACK
-
114012752 MODULE, CRUISEMODULE, CRUISE
-
117518227 SCREWSCREW
-
117555727 WASHERWASHER
-
115813543 GASKET, CABLE, MODULE, CRUISEGASKET, CABLE, MODULE, CRUISE
-
124012393 RECEPTACLE, POD MOUNT, 12 VRECEPTACLE, POD MOUNT, 12 V
-
134011319 SWITCH, HAND WARMERSWITCH, HAND WARMER
-
144012104 MODULE, FLASHER, 27WMODULE, FLASHER, 27W
-
157670088 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
164010430 SENSOR, OXYGENSENSOR, OXYGEN
-
172410443 SENSOR, GAUGE, AIR TEMPSENSOR, GAUGE, AIR TEMP
-
184013251 SENSOR, WHEEL SPEED, ABS (FRONT/REAR)SENSOR, WHEEL SPEED, ABS (FRONT/REAR)
-
194011390 SWITCH, DOOR LIGHT, TRUNKSWITCH, DOOR LIGHT, TRUNK
-
205413617 CAP, VINYL, BLACKCAP, VINYL, BLACK
-
214012717 REGULATOR, VOLTAGE, BLACKREGULATOR, VOLTAGE, BLACK
-
227517272 SCREWSCREW
-
237670102 CLIP, SILENCERCLIP, SILENCER
-
237081334 STRAP, TREE MOUNT CABLE TIESTRAP, TREE MOUNT CABLE TIE
-
245255106 SHIM, SENSOR, ABSSHIM, SENSOR, ABS
-
255632575 MOUNT, SPEED SENSOR, ABSMOUNT, SPEED SENSOR, ABS
