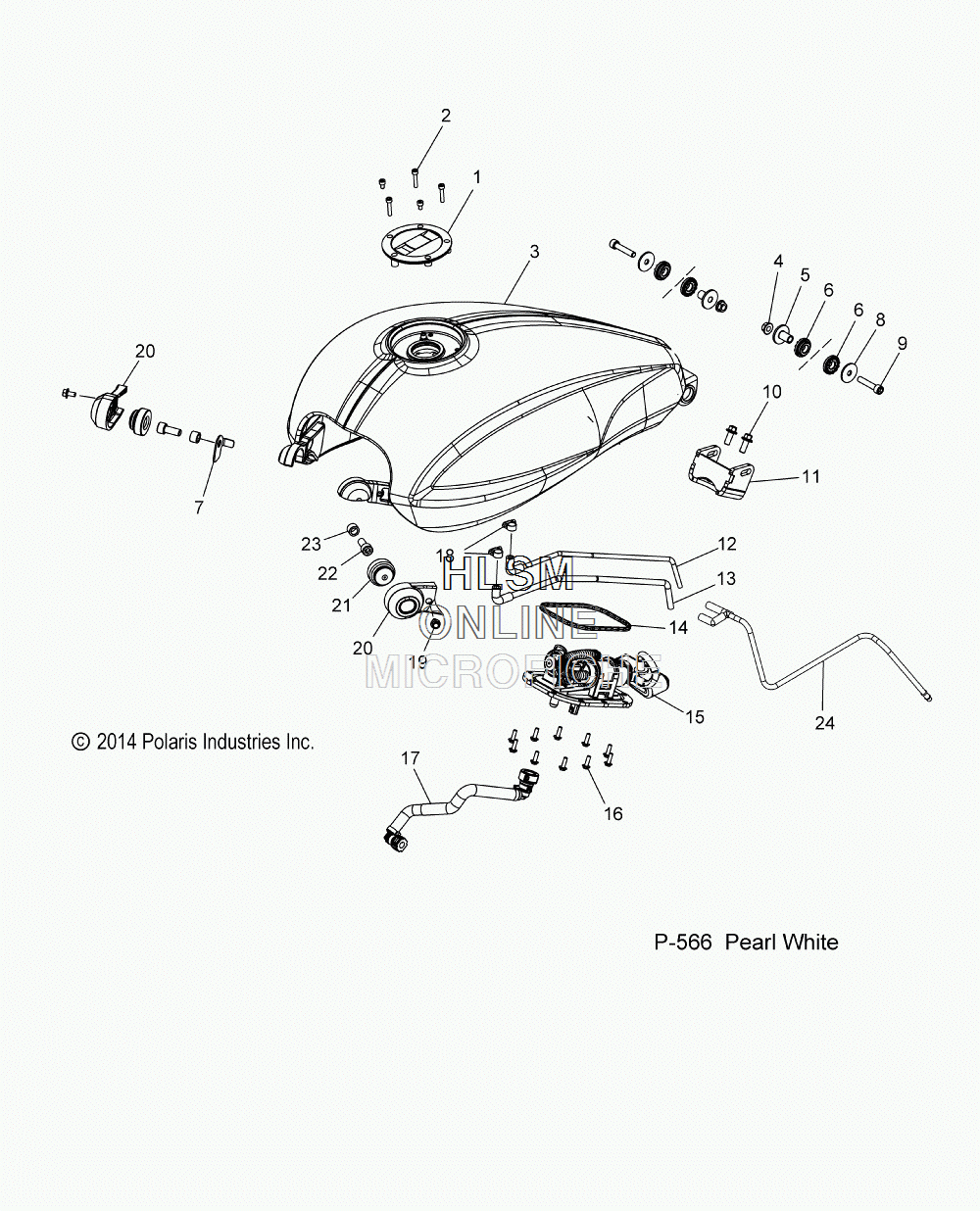

FUEL TANK для Polaris BOARDWALK, INTL [RW36EE] - 2015 года выпуска
-
№АртикулНазвание
-
14012377-266 ASM., IGNITION/FUEL CAP, (BLACK)ASM., IGNITION/FUEL CAP, (BLACK)
-
27518086 SCREWSCREW
-
27517845 SCREWSCREW
-
27517515 SCREWSCREW
-
31018260-566 TANK, FUEL, (PEARL WHITE)TANK, FUEL, (PEARL WHITE)
-
47547014 NUTNUT
-
55136409 BUSHING, FLANGEBUSHING, FLANGE
-
65413491 BUSHING, FLANGE, RUBBERBUSHING, FLANGE, RUBBER
-
75256248 BRACKET, THROTTLE CABLE PROTECTORBRACKET, THROTTLE CABLE PROTECTOR
-
87556175 WASHERWASHER
-
97518178 SCREWSCREW
-
107517838 SCREWSCREW
-
111018907 BRKT., FUEL TANK MOUNTBRKT., FUEL TANK MOUNT
-
125437376 LINE, FUEL VENTLINE, FUEL VENT
-
135435764 LINE, WATER DRAINLINE, WATER DRAIN
-
145413346 SEAL, FUELSEAL, FUEL
-
152521221 PUMP, FUELPUMP, FUEL
-
167518923 SCREWSCREW
-
175414309 LINE, FUELLINE, FUEL
-
187081151 CLAMP, HOSECLAMP, HOSE
-
197517704 SCREWSCREW
-
205439143-463 COVER, TANK, LEFT HAND BRKT., (FLAT BLACK)COVER, TANK, LEFT HAND BRKT., (FLAT BLACK)
-
205439144-463 COVER, TANK, RIGHT HAND BRKT., (FLAT BLACK)COVER, TANK, RIGHT HAND BRKT., (FLAT BLACK)
-
215413479 ISOLATOR, TANK, FRONTISOLATOR, TANK, FRONT
-
227517358 SCREWSCREW
-
235336872 SPACERSPACER
-
245435771 LINE, WTR/FUEL TO GROUNDLINE, WTR/FUEL TO GROUND
