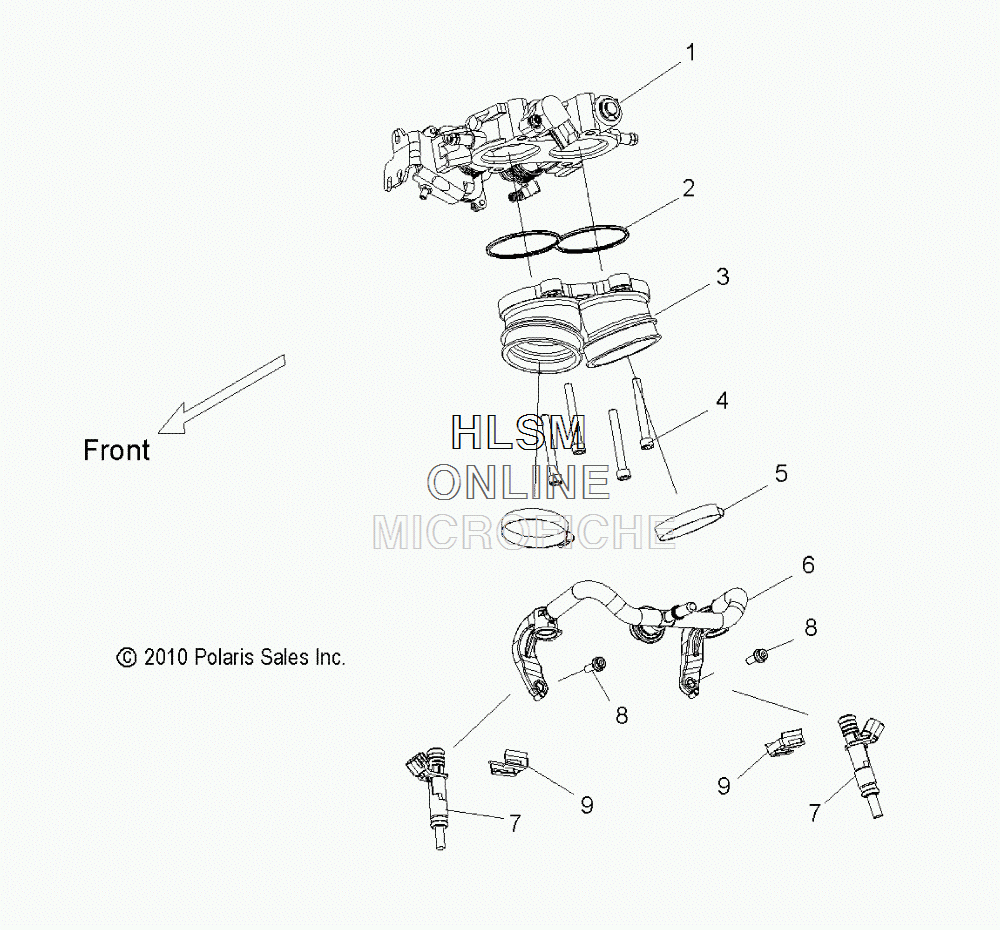

THROTTLE BODY ASM. для Polaris BOARDWALK, INTL [RW36EE] - 2015 года выпуска
-
№АртикулНазвание
-
11205085 ASM., THROTTLE BODYASM., THROTTLE BODY
-
25412882 SEAL, THROTTLE BODYSEAL, THROTTLE BODY
-
31203866 ADAPTER, THROTTLE BODYADAPTER, THROTTLE BODY
-
47518348 SCREWSCREW
-
57080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
62520881 ASM., FUEL RAILASM., FUEL RAIL
-
72520536 INJECTOR, FUELINJECTOR, FUEL
-
75414860 O-RING, FUEL INJECTOR, LOWER, (GREEN)O-RING, FUEL INJECTOR, LOWER, (GREEN)
-
75414861 O-RING, FUEL INJECTOR, UPPER, (BLACK)O-RING, FUEL INJECTOR, UPPER, (BLACK)
-
87518803 SCREWSCREW
-
95250306 CLIP, FUEL RAILCLIP, FUEL RAIL
