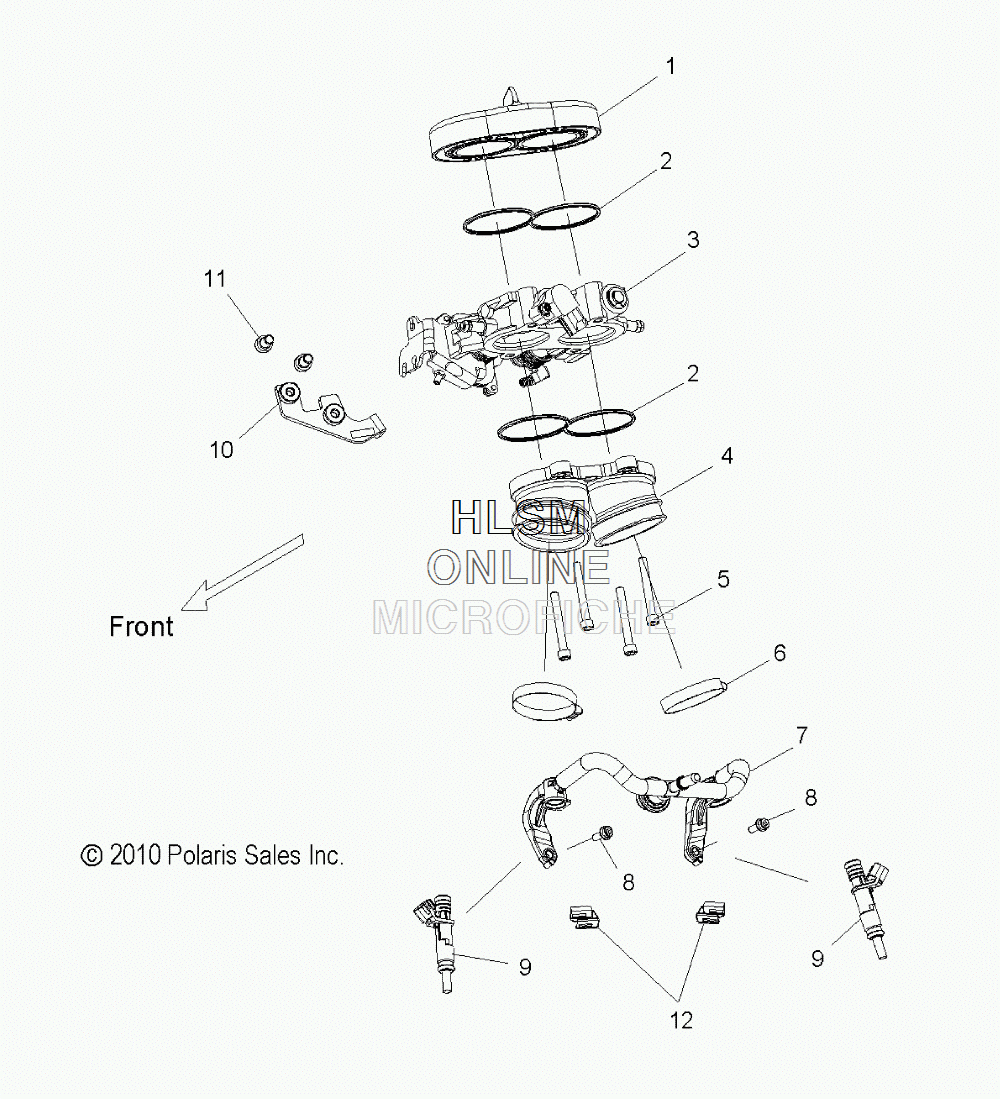

THROTTLE BODY ASM. для Polaris VISION ALL OPTIONS [SW36] - 2015 года выпуска
-
№АртикулНазвание
-
15137854 ADAPTER, AIR BOXADAPTER, AIR BOX
-
25412882 SEAL, THROTTLE BODYSEAL, THROTTLE BODY
-
31205085 ASM., THROTTLE BODYASM., THROTTLE BODY
-
41203866 ADAPTER, THROTTLE BODYADAPTER, THROTTLE BODY
-
57518348 SCREWSCREW
-
67080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
72520881 ASM., FUEL RAILASM., FUEL RAIL
-
87518803 SCREWSCREW
-
92520536 INJECTOR, FUELINJECTOR, FUEL
-
95414860 O-RING, FUEL INJECTOR, LOWER, (GREEN)O-RING, FUEL INJECTOR, LOWER, (GREEN)
-
95414861 O-RING, FUEL INJECTOR, UPPER, (BLACK)O-RING, FUEL INJECTOR, UPPER, (BLACK)
-
105254542 BRACKET, THROTTLE STOP (INT'L)BRACKET, THROTTLE STOP (INT'L)
-
117517725 SCREWSCREW
-
125250306 CLIP, FUEL RAILCLIP, FUEL RAIL
