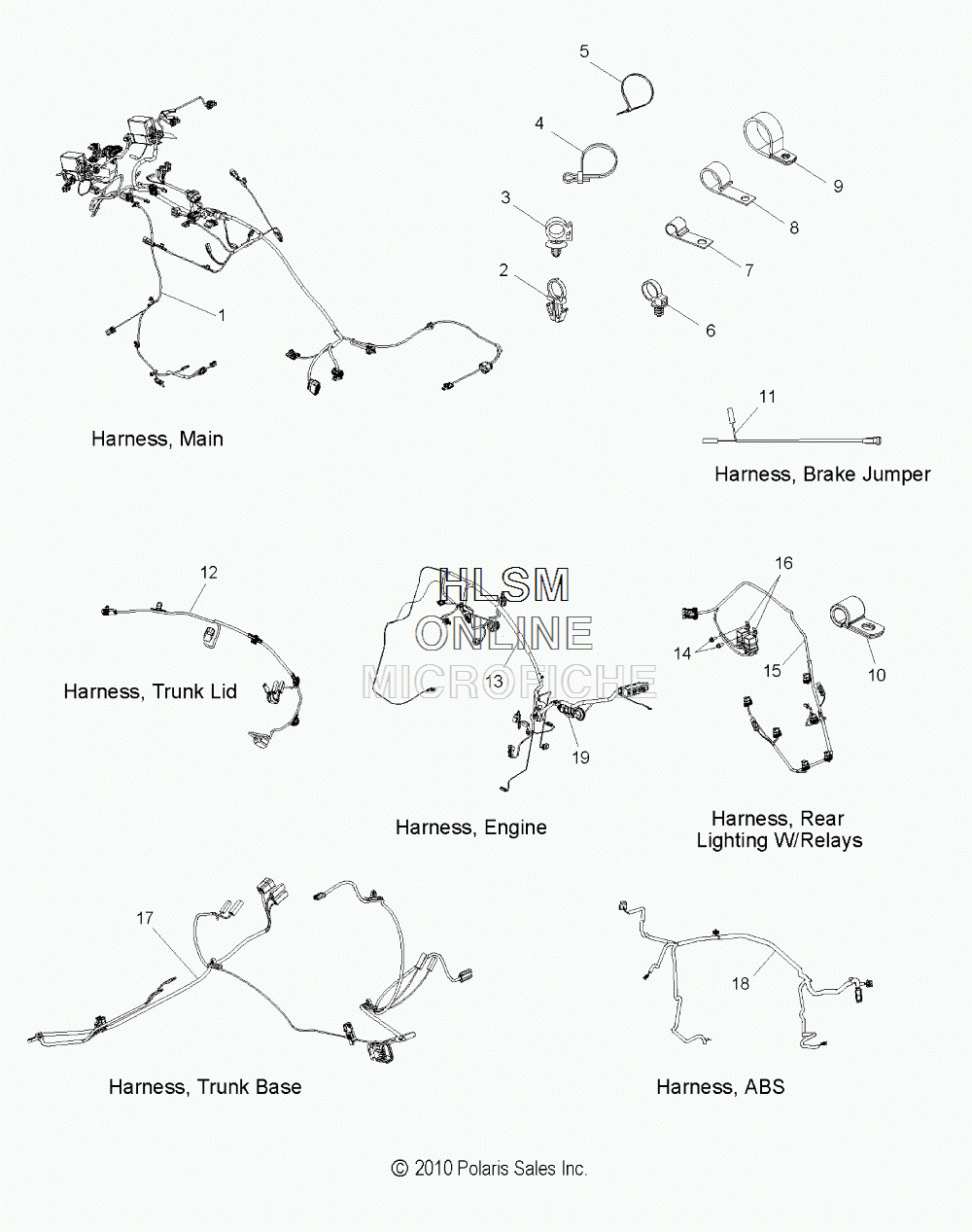

WIRE HARNESS для Polaris VISION ALL OPTIONS [SW36] - 2015 года выпуска
-
№АртикулНазвание
-
12411259 HARNESS, MAIN WIRE, CHASSIS, ABSHARNESS, MAIN WIRE, CHASSIS, ABS
-
27080756 CLIP, SNAP-IN, .375 INCHCLIP, SNAP-IN, .375 INCH
-
37670116 CLIP, ROUTING, HINGEDCLIP, ROUTING, HINGED
-
47081033 STRAP, PANDUIT, DOUBLE LOOPSTRAP, PANDUIT, DOUBLE LOOP
-
57080138 CABLE TIECABLE TIE
-
67081334 STRAP, TREE MOUNT, CABLE TIESTRAP, TREE MOUNT, CABLE TIE
-
77081069 J-CLIPJ-CLIP
-
87081439 J-CLIP, VINYLJ-CLIP, VINYL
-
97081490 CLAMP, HOSE, VINYLCLAMP, HOSE, VINYL
-
107080983 CLAMPCLAMP
-
112411335 JUMPER, BRAKE SWITCHJUMPER, BRAKE SWITCH
-
122410666 HARNESS, TRUNK LIDHARNESS, TRUNK LID
-
132411518 HARNESS, ENGINEHARNESS, ENGINE
-
132411035 DIODEDIODE
-
132878507 KIT, HARNESS, IACKIT, HARNESS, IAC
-
147518591 SCREWSCREW
-
152411084 HARNESS, REAR LIGHTING W/RELAYS (INCL. 10)HARNESS, REAR LIGHTING W/RELAYS (INCL. 10)
-
152411035 DIODEDIODE
-
152411302 HARNESS, LIGHTING, REAR (INT'L)HARNESS, LIGHTING, REAR (INT'L)
-
164010725 RELAY, SEALEDRELAY, SEALED
-
172411317 HARNESS, TRUNK, BASEHARNESS, TRUNK, BASE
-
182411297 HARNESS, ABS, SINGLE, REARHARNESS, ABS, SINGLE, REAR
-
184012081 FUSE, 30 AMPFUSE, 30 AMP
-
184011828 RELAY, SEALEDRELAY, SEALED
-
194012170 COVER, DIAGNOSTIC W/CLIPCOVER, DIAGNOSTIC W/CLIP
