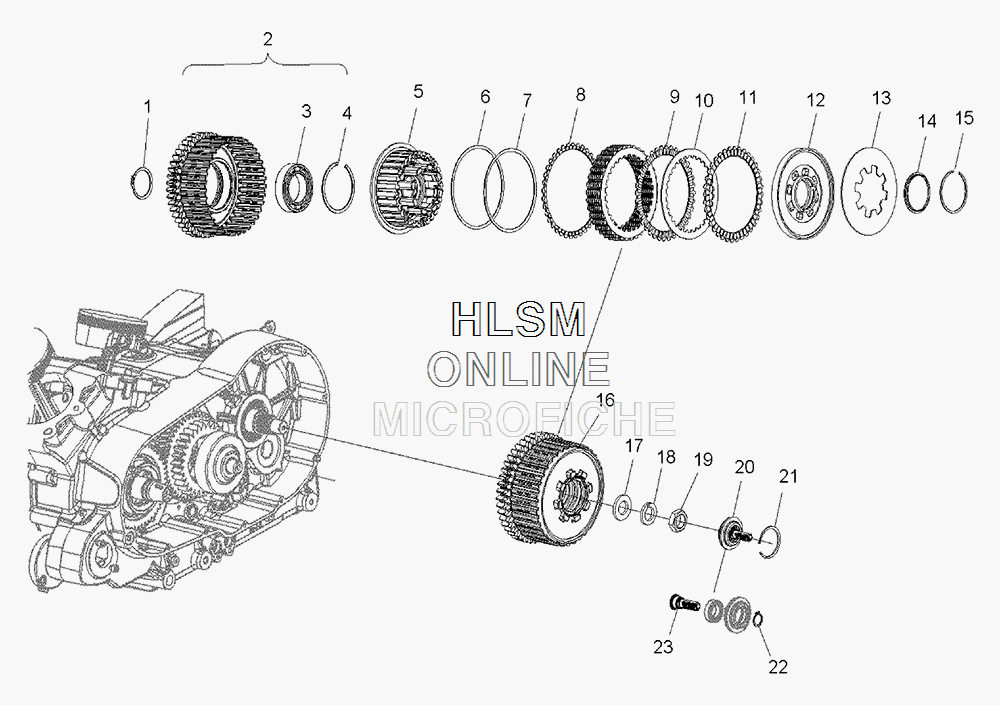

CLUTCH для Polaris GUNNER [V16LB36NT] - 2016 года выпуска

№

Артикул

Название
1

7710551 RING, RETAINING, EXTERNAL

RING, RETAINING, EXTERNAL

1 870 ₽
2

1333218 ASM., GEAR/BASKET, CLUTCH (INCL. 3,4)

ASM., GEAR/BASKET, CLUTCH (INCL. 3,4)

77 540 ₽
3

3514472 BEARING, BALL

BEARING, BALL

8 110 ₽
4

7710550 CIRCLIP, INTERNAL, 75MM

CIRCLIP, INTERNAL, 75MM

3 950 ₽
5

5137217 HUB, CLUTCH, INNER

HUB, CLUTCH, INNER

37 440 ₽
6

5246074 SEAT, JUDDER SPRING

SEAT, JUDDER SPRING

3 750 ₽
7

7042123 SPRING, DIAPHRAGM, JUDDER

SPRING, DIAPHRAGM, JUDDER

6 870 ₽
12

5132703 PLATE, PRESSURE

PLATE, PRESSURE

20 800 ₽
13

7041944 SPRING, CLUTCH, DIAPHRAGM

SPRING, CLUTCH, DIAPHRAGM

18 720 ₽
14

7710510 RING SEAT, SNAP RING

RING SEAT, SNAP RING

2 910 ₽
15

7670123 CIRCLIP, INTERNAL, 62MM

CIRCLIP, INTERNAL, 62MM

2 910 ₽
16

1332834 ASM., CLUTCH (INCL. 1-15)

ASM., CLUTCH (INCL. 1-15)

130 ₽
17

7556518 WASHER, FLAT

WASHER, FLAT

1 460 ₽
18

7556519 DISC, SPRING

DISC, SPRING

2 710 ₽
19

7547477 NUT

NUT

2 710 ₽
20

1322881 ASM., CLUTCH LIFTER (INCL. 22-23)

ASM., CLUTCH LIFTER (INCL. 22-23)

20 800 ₽
21

7710651 RING, RETAINING, INTERNAL, 1.875 IN.

RING, RETAINING, INTERNAL, 1.875 IN.

460 ₽
22

7710645 RING, RETAINING, EXTERNAL, 12MM

RING, RETAINING, EXTERNAL, 12MM

250 ₽
23

6230462 SHAFT, CLUTCH LIFTER

SHAFT, CLUTCH LIFTER

14 560 ₽
