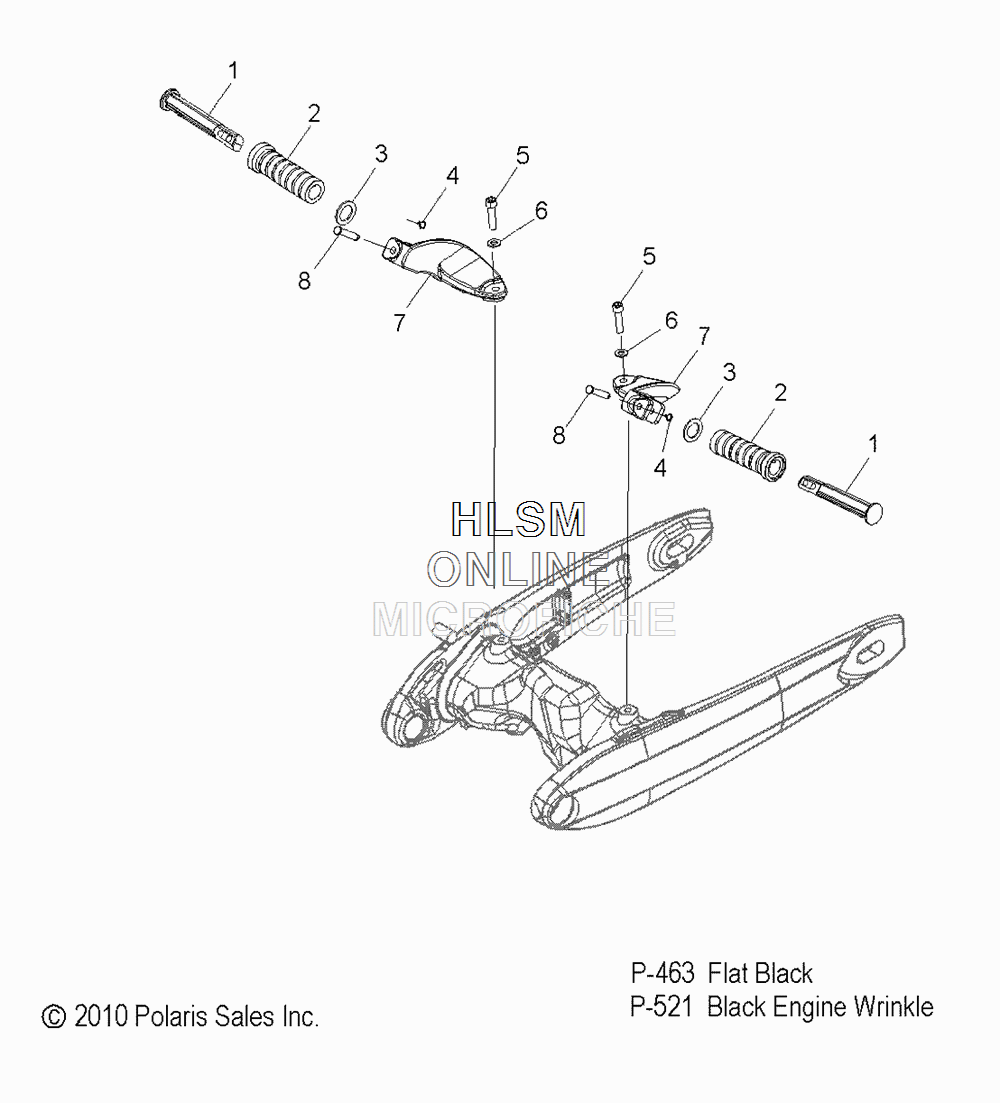

FOOTPEGS- PASSENGER для Polaris Hammer S Gloss Black/GFX [V17CHRABAB] - 2017 года выпуска
-
№АртикулНазвание
-
15136035-411 FOOTPEG, LEFTFOOTPEG, LEFT
-
15136036-411 FOOTPEG, RIGHTFOOTPEG, RIGHT
-
25412261 PAD, FOOTPEG, REARPAD, FOOTPEG, REAR
-
37556274 WASHER, FOOTPEG, PIVOTWASHER, FOOTPEG, PIVOT
-
47710644 RING, RETAININGRING, RETAINING
-
57517517 SCREWSCREW
-
67556245 WASHER, FLATWASHER, FLAT
-
75134197-521 SUPPORT, FOOTPEG, PASS, RIGHT (BLACK ENGINE WRINKLE)SUPPORT, FOOTPEG, PASS, RIGHT (BLACK ENGINE WRINKLE)
-
75137313-521 SUPPORT, FOOTPEG, PASS, LEFT (BLACK ENGINE WRINKLE)SUPPORT, FOOTPEG, PASS, LEFT (BLACK ENGINE WRINKLE)
-
87661980 PIN, PIVOTPIN, PIVOT
