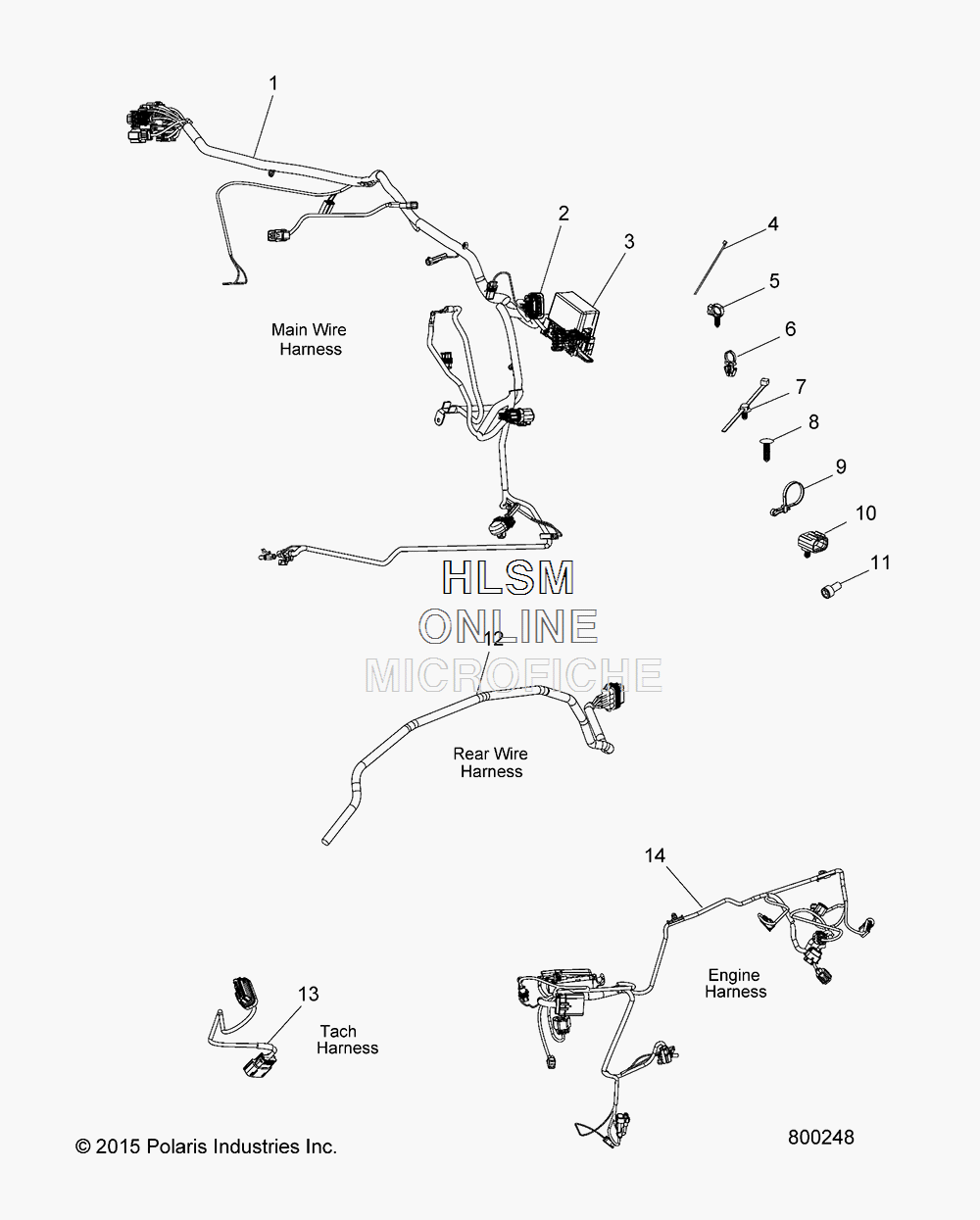

WIRE HARNESSES для Polaris Hammer S Gloss Black/GFX [V17CHRABAB] - 2017 года выпуска
-
№АртикулНазвание
-
12413461 HARNESS, CHASSIS, CRUISERHARNESS, CHASSIS, CRUISER
-
24012260 COVER, FUSEHOLDERCOVER, FUSEHOLDER
-
35438758 COVER, RELAYCOVER, RELAY
-
47080138 CABLE TIECABLE TIE
-
54010589 CLIP, DARTCLIP, DART
-
67080756 CLIP, SNAP INCLIP, SNAP IN
-
77081496 CLIP, ROUTINGCLIP, ROUTING
-
87670078 CLIP, DART, NYLONCLIP, DART, NYLON
-
97080133 STRAP, PANDUIT, DOUBLE LOOPSTRAP, PANDUIT, DOUBLE LOOP
-
104012170 COVER, DIAGNOSTIC W/CLIPCOVER, DIAGNOSTIC W/CLIP
-
117517405 SCREW-SH, M6X12SCREW-SH, M6X12
-
117517272 SCREW-SH, M6X15SCREW-SH, M6X15
-
122410954 HARNESS, REARHARNESS, REAR
-
132411522 HARNESS, TACHHARNESS, TACH
-
142413153 HARNESS, ENGINEHARNESS, ENGINE
-
142878507 KIT, HARNESSKIT, HARNESS
