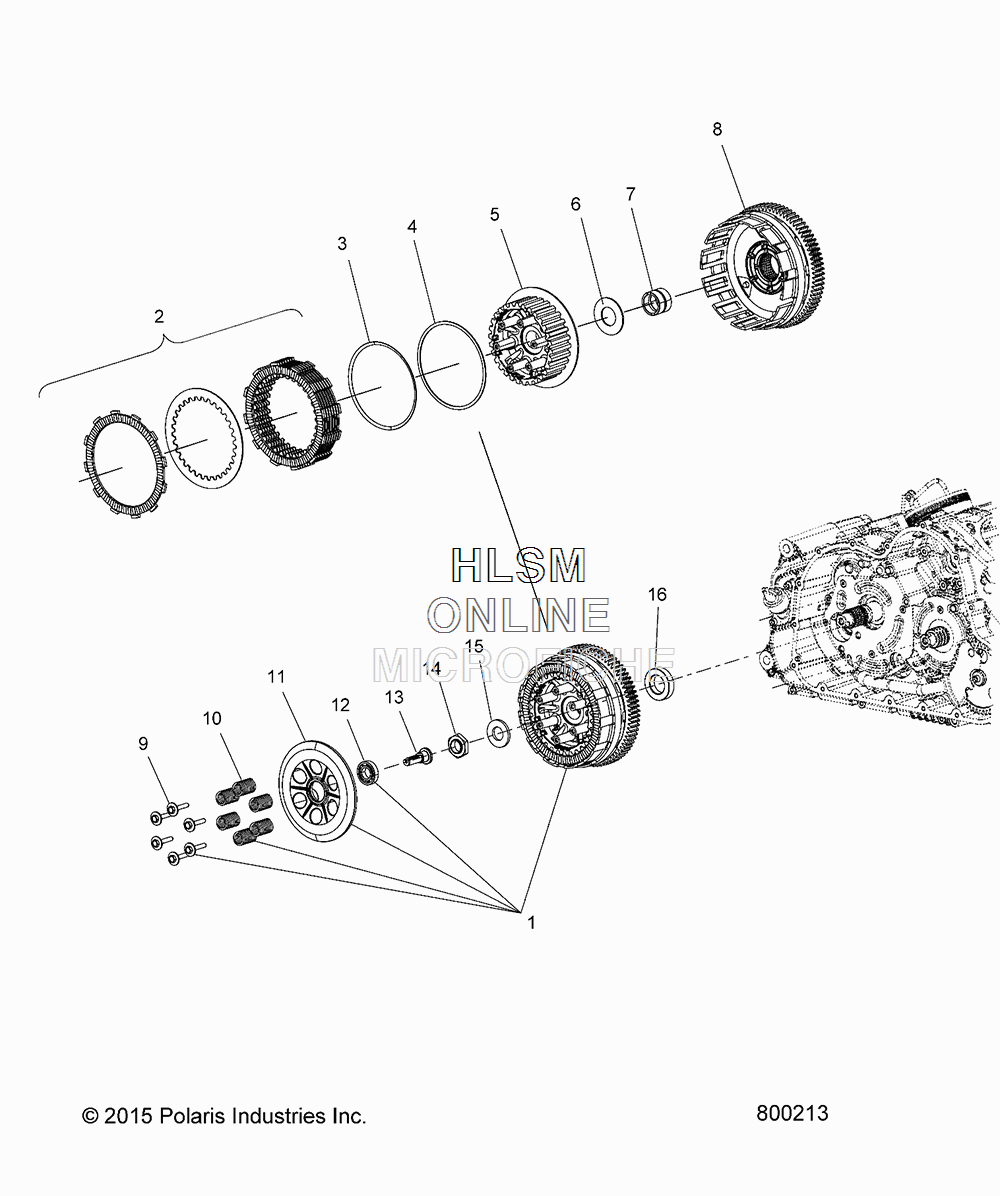

CLUTCH для Polaris Octane Gloss Black [V17FTB00AA] - 2017 года выпуска
-
№АртикулНазвание
-
11333553 ASM., CLUTCHASM., CLUTCH
-
22205196 ASM., CLUTCH PACKASM., CLUTCH PACK
-
37044118 SPRING, JUDDER, CLUTCHSPRING, JUDDER, CLUTCH
-
45258192 SEAT, JUDDER SPRINGSEAT, JUDDER SPRING
-
55138941 HUB, CLUTCH, INNERHUB, CLUTCH, INNER
-
67556798 WASHER, CLUTCHWASHER, CLUTCH
-
75138940 COLLAR, BEARINGCOLLAR, BEARING
-
81333554 ASM., BASKET, OUTERASM., BASKET, OUTER
-
97519901 SCREWSCREW
-
107044119 SPRING, CLUTCH, 230NSPRING, CLUTCH, 230N
-
115138999 PLATE, PRESSURE (INCL. 12)PLATE, PRESSURE (INCL. 12)
-
123514819 BEARINGBEARING
-
136230582 SHAFT, CLUTCH LIFTERSHAFT, CLUTCH LIFTER
-
147547477 NUT, STAKINGNUT, STAKING
-
157556518 WASHERWASHER
-
165138726 SPACER, CLUTCHSPACER, CLUTCH
