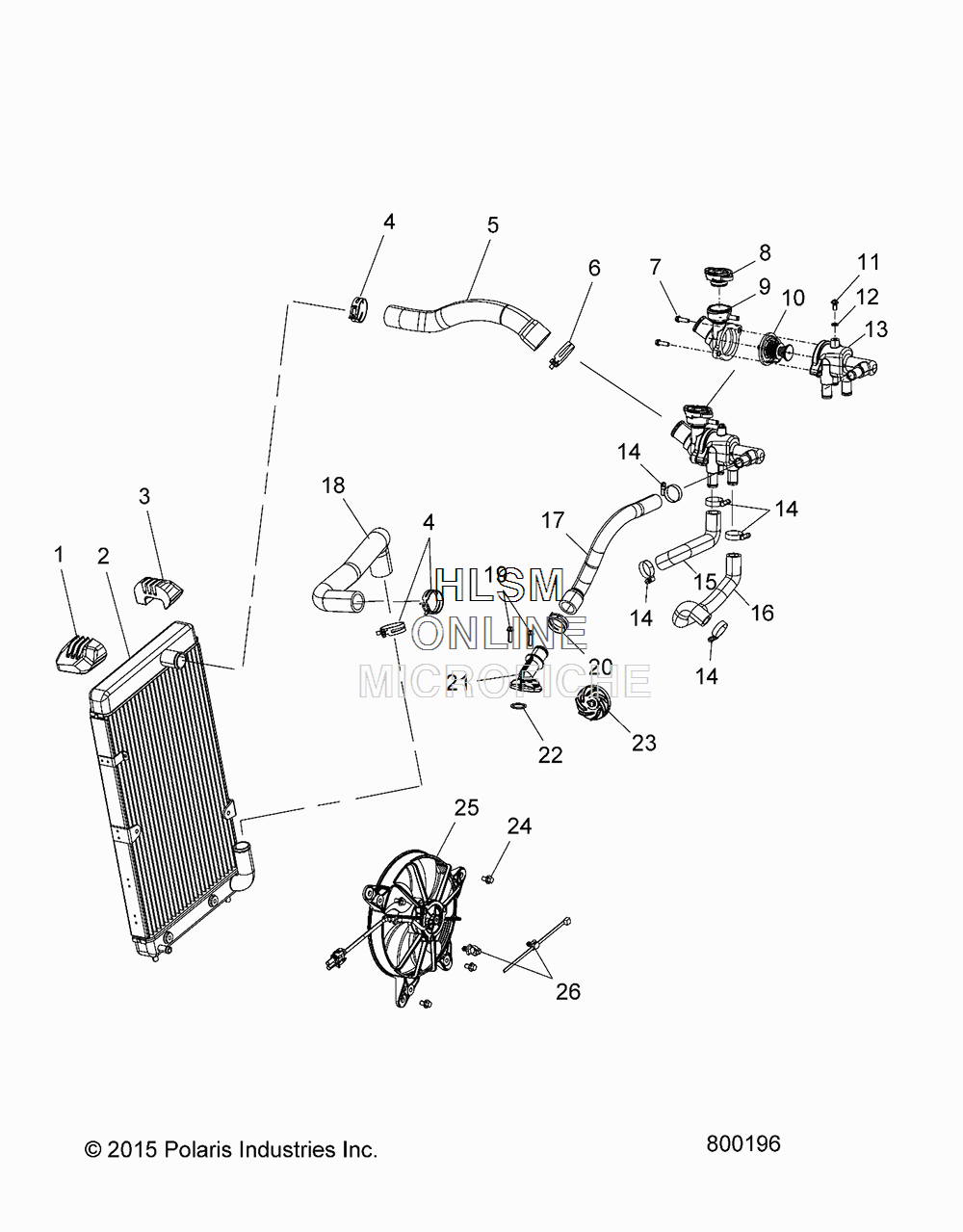

COOLING ASM. 1 для Polaris Octane Gloss Black [V17FTB00AA] - 2017 года выпуска
-
№АртикулНазвание
-
15414916 MOUNT, RADIATOR, UPPER, LEFTMOUNT, RADIATOR, UPPER, LEFT
-
21240717 RADIATORRADIATOR
-
35414917 MOUNT, RADIATOR, UPPER, RIGHTMOUNT, RADIATOR, UPPER, RIGHT
-
47081977 CLAMPCLAMP
-
55415870 HOSE, RADIATOR INHOSE, RADIATOR IN
-
67082025 CLAMPCLAMP
-
77516610 SCREWSCREW
-
81240797 CAP, PRESSURECAP, PRESSURE
-
95452286 COVER, THERMOSTATCOVER, THERMOSTAT
-
107052600 THERMOSTAT-DOUBLE, ACTING, 1MMTHERMOSTAT-DOUBLE, ACTING, 1MM
-
117517679 SCREW, BLEEDSCREW, BLEED
-
127555998 WASHER, FLATWASHER, FLAT
-
131205218 ASM., HOUSING, THERMOSTATASM., HOUSING, THERMOSTAT
-
147080696 CLAMP, BANDCLAMP, BAND
-
155415371 HOSE, COOLANT, FRONT HEAD OUTHOSE, COOLANT, FRONT HEAD OUT
-
165415372 HOSE, COOLANT, REAR HEAD OUTHOSE, COOLANT, REAR HEAD OUT
-
175415373 HOSE, BYPASSHOSE, BYPASS
-
185414874 HOSE, RADIATOR OUTHOSE, RADIATOR OUT
-
197520035 SCREWSCREW
-
207080842 CLAMP, HOSECLAMP, HOSE
-
215414844 HOSE-RETURNHOSE-RETURN
-
225413563 O-RINGO-RING
-
235138209 IMPELLER, WATERPUMPIMPELLER, WATERPUMP
-
247517278 SCREWSCREW
-
252412703 ASM., FANASM., FAN
-
267081496 CLIP, ROUTINGCLIP, ROUTING
