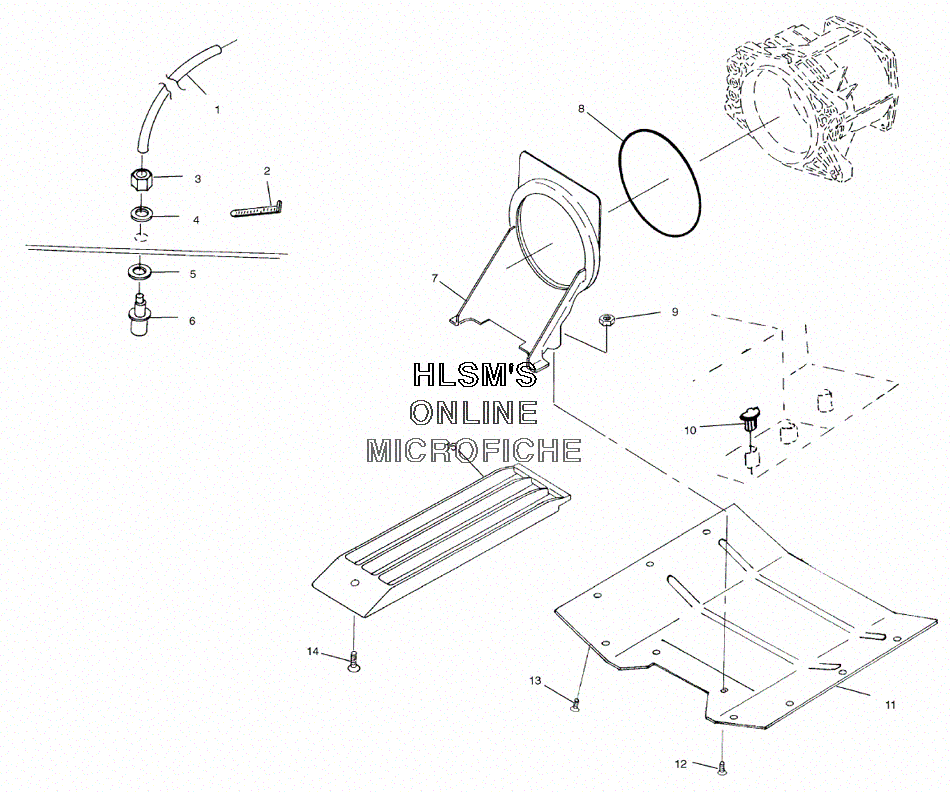

INTAKE GRATE W/ RIDE PLATE для Polaris SLH 2-Pass Euro - 2000 года выпуска
-
№АртикулНазвание
-
18450070-235 PITOT LINE, 90DEG. FORMED (345CM.)PITOT LINE, 90DEG. FORMED (345CM.)
-
27080483 CABLE TIE (4 IN.)CABLE TIE (4 IN.)
-
37547003 NUTNUT
-
47555873 WASHER, FLATWASHER, FLAT
-
55810879 GASKET, PILOTGASKET, PILOT
-
65431634 FITTING, PILOTFITTING, PILOT
-
75131602 SCOOP, INLETSCOOP, INLET
-
85410652 O-RING, PUMP HOUSING/HULLO-RING, PUMP HOUSING/HULL
-
97542455 NUT, HEXNUT, HEX
-
107010083 INSERT, SPONSON / RIDEPLATEINSERT, SPONSON / RIDEPLATE
-
115630737 PLATE, RIDE EXT.PLATE, RIDE EXT.
-
127515126 BOLTBOLT
-
137517267 SCREWSCREW
-
147515155 BOLTBOLT
-
155630542-067 GRATE, INLET (BLACK)GRATE, INLET (BLACK)
