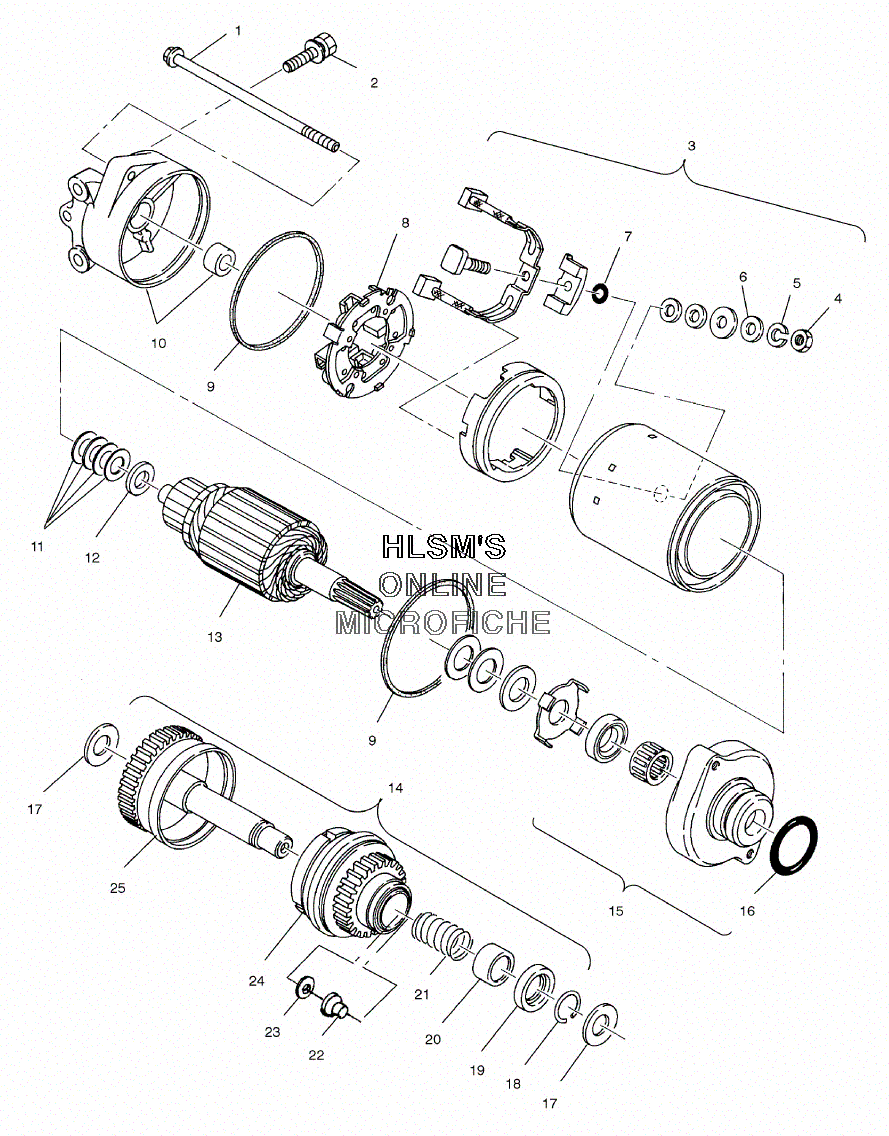

STARTING MOTOR для Polaris SLH 2-Pass Euro - 2000 года выпуска
-
№АртикулНазвание
-
1A4060118 STARTER, LONG STUD (INCL. 1, 3-16)STARTER, LONG STUD (INCL. 1, 3-16)
-
13240113 BOLT, THROUGHBOLT, THROUGH
-
23240062 BOLT, FLANGEBOLT, FLANGE
-
33240115 BRUSH, COMP. (INCL. 4-8)BRUSH, COMP. (INCL. 4-8)
-
43240116 NUTNUT
-
53240117 WASHER, SPRINGWASHER, SPRING
-
63240119 WASHERWASHER
-
73084408 O-RINGO-RING
-
83240111 SPRING, BRUSHSPRING, BRUSH
-
93084405 RING, RUBBERRING, RUBBER
-
103240207 BRACKET ASSY. (REAR)BRACKET ASSY. (REAR)
-
113240118 WASHER, THRUST (OPT)WASHER, THRUST (OPT)
-
123240112 WASHER, THRUSTWASHER, THRUST
-
133240205 ARMATURE ASSY.ARMATURE ASSY.
-
144060119 BENDIX ASSY. (INCL. 17-23) (MOUNTED IN CRANKCASE)BENDIX ASSY. (INCL. 17-23) (MOUNTED IN CRANKCASE)
-
153240206 BRACKET ASSY. (FRONT)BRACKET ASSY. (FRONT)
-
163240114 O-RINGO-RING
-
173083737 WASHERWASHER
-
183240126 SNAP RINGSNAP RING
-
193240125 STOPPERSTOPPER
-
203240123 COVERCOVER
-
217041457 SPRINGSPRING
-
223574214 BUSHING, PLASTICBUSHING, PLASTIC
-
237555908 WASHERWASHER
-
243240122 BENDIX ASSY.BENDIX ASSY.
-
253240120 BENDIX ASSY. (INCL. 17-24)BENDIX ASSY. (INCL. 17-24)
