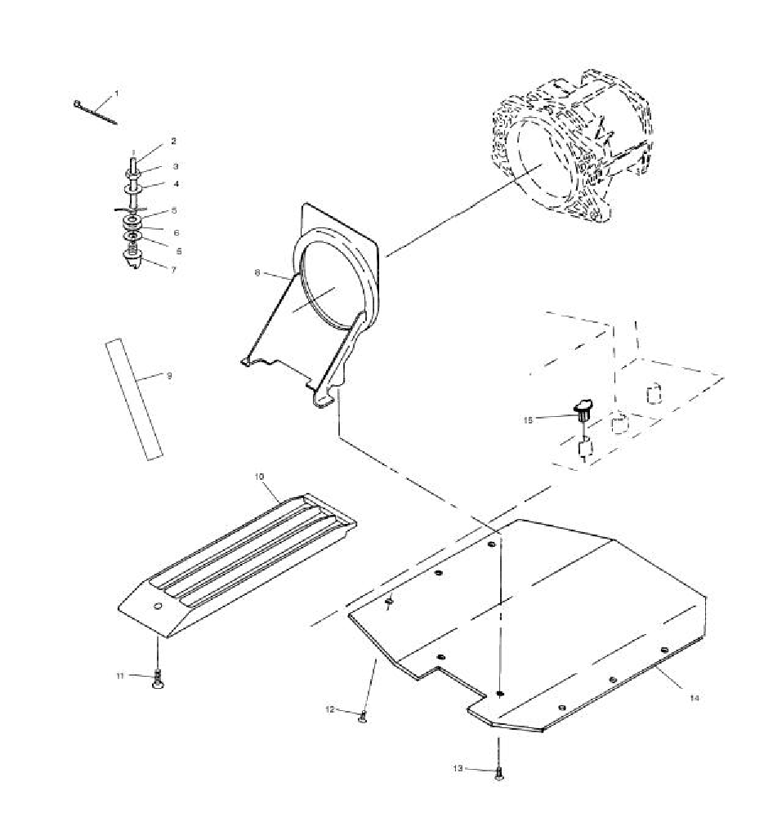

BILGE PUMP для Polaris FREEDOM (IA) - 2004 года выпуска
-
№АртикулНазвание
-
17052141 ELBOWELBOW
-
27080138 CABLE TIECABLE TIE
-
38450050-26 HOSEHOSE
-
47080598 CABLE TIE, 21.25 INCHCABLE TIE, 21.25 INCH
-
55431444-133 FITTING-THRU HULL, WHITEFITTING-THRU HULL, WHITE
-
65811317 GASKETGASKET
-
75411595 HOSE-3/4''X42 CM, CHAFE PROTECTEDHOSE-3/4''X42 CM, CHAFE PROTECTED
-
87080475 CLAMP, HOSE, SSCLAMP, HOSE, SS
-
92410169 BILGE, W/CONNECTOR, ASM.BILGE, W/CONNECTOR, ASM.
-
107512056 SCREWSCREW
-
117555837 WASHER, FLAT, S.S.WASHER, FLAT, S.S.
