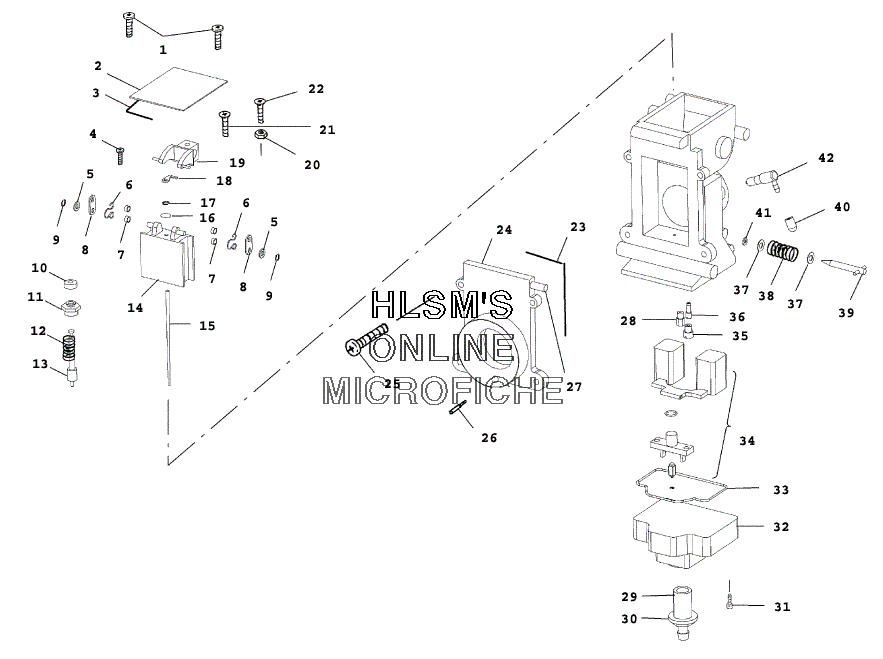

CARBURETOR ASSEMBLY для Polaris 500 RMK (S00SR5AS) - 2000 года выпуска
-
№АртикулНазвание
-
13130851 SCREWSCREW
-
23130872 CAP (TOP)CAP (TOP)
-
33130871 GASKETGASKET
-
43130844 SCREWSCREW
-
53130846 WASHER, PACKINGWASHER, PACKING
-
63130856 CLIPCLIP
-
73130845 RINGRING
-
83130857 PLATEPLATE
-
93130847 E-RINGE-RING
-
103130831 CAP, STARTER, RUBBERCAP, STARTER, RUBBER
-
113130830 HOLDER, STARTER GUIDEHOLDER, STARTER GUIDE
-
123130829 SPRING, STARTERSPRING, STARTER
-
133130828 PLUNGER ASSY./258PLUNGER ASSY./258
-
143131216 PV, NOTCHEDPV, NOTCHED
-
153130794 JET, NEEDLE (J8, 9FH04, 57)JET, NEEDLE (J8, 9FH04, 57)
-
163130867 PACKINGPACKING
-
173130868 E-RINGE-RING
-
183130843 PLATEPLATE
-
193130849 LEVER ASSY.LEVER ASSY.
-
193130855 LEVER ASSY.LEVER ASSY.
-
203130848 RINGRING
-
213130854 SCREWSCREW
-
223130850 SCREWSCREW
-
233130870 O-RING, AIR FUNNELO-RING, AIR FUNNEL
-
243130869 FUNNEL ASSY.FUNNEL ASSY.
-
253130825 SCREW, AIR FUNNELSCREW, AIR FUNNEL
-
263130777 JET, PILOT, AIR (PAJ) (0.9)JET, PILOT, AIR (PAJ) (0.9)
-
273130808 PINPIN
-
283130130 JET, MAIN, HEXAGON HD (270)JET, MAIN, HEXAGON HD (270)
-
293130862 NIPPLE, DRAIN SCREWNIPPLE, DRAIN SCREW
-
303130863 O-RING, DRAIN SCREWO-RING, DRAIN SCREW
-
313130824 SCREW, FLOAT BOWLSCREW, FLOAT BOWL
-
323130858 FLOAT, BODYFLOAT, BODY
-
333130861 O-RING, FLOAT BOWLO-RING, FLOAT BOWL
-
343130859 FLOAT ASSY.FLOAT ASSY.
-
353130771 JET, STARTER (155)JET, STARTER (155)
-
363130068 JET, PILOT (45)JET, PILOT (45)
-
373130837 WASHERWASHER
-
383130836 SPRINGSPRING
-
393130838 ADJUSTER ASSY.ADJUSTER ASSY.
-
403130479 CAPCAP
-
413130835 PACKINGPACKING
-
427051020 VALVE, CHECK (90 DEGREE)VALVE, CHECK (90 DEGREE)
-
423130995 CARBURETOR, ASSY. (38MM)CARBURETOR, ASSY. (38MM)
