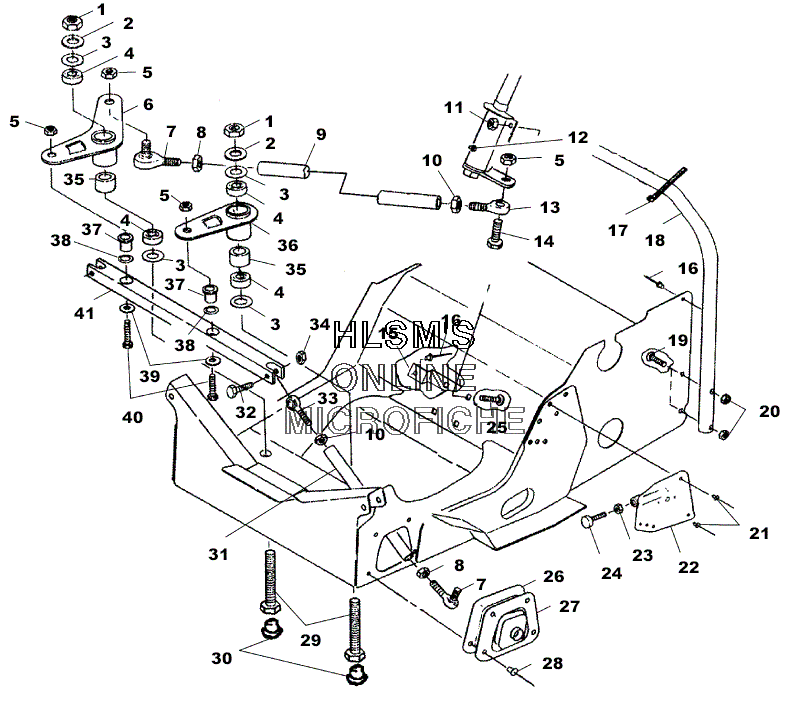

STEERING ASSEMBLY для Polaris 500 XC (S00SB5AS) - 2000 года выпуска
-
№АртикулНазвание
-
17547029 NUT, FLEX LOCKNUT, FLEX LOCK
-
27555721 WASHERWASHER
-
37558702 WASHER THRUSTWASHER THRUST
-
43514320 BEARING-BALL (600ILLU)BEARING-BALL (600ILLU)
-
57542403 NUT LOCKNUT LOCK
-
61820573 ARM ASSY., PITMAN (INCL. 4, 35)ARM ASSY., PITMAN (INCL. 4, 35)
-
77060174 ROD, END (RIGHT) (3/8) (HI-ANGLE)ROD, END (RIGHT) (3/8) (HI-ANGLE)
-
87542401 NUT HEXNUT HEX
-
95333408 ROD, DRAG LINKROD, DRAG LINK
-
107542424 NUTNUT
-
117542303 NUT, FLEX LOCNUT, FLEX LOC
-
127080561 FITTING, LUB/VENFITTING, LUB/VEN
-
137060164 ROD END (LEFT)ROD END (LEFT)
-
147512404 BOLTBOLT
-
155241997 BRACKET, BOLT RETAINERBRACKET, BOLT RETAINER
-
167661638 RIVET, INTERLOCK BRIVET, INTERLOCK B
-
177080804 CABLE TIE-RELEASABLE (5 1/2'')CABLE TIE-RELEASABLE (5 1/2'')
-
181013153-067 STEERING HOOP (BLK)STEERING HOOP (BLK)
-
197512275 BOLT, CARRIAGEBOLT, CARRIAGE
-
207542103 NUT, LOCKNUT, LOCK
-
217661643 RIVETRIVET
-
221012854 TORQUE STOPTORQUE STOP
-
237542404 NUTNUT
-
243110078 STOP, TORQUESTOP, TORQUE
-
257517428 BOLT,BOLT,
-
265411249 BOOT, TIERODBOOT, TIEROD
-
275211796-067 PLATE, BOOTPLATE, BOOT
-
287621323 POP RIVETPOP RIVET
-
297517402 SCREWSCREW
-
307080689 PLUG, HOLEPLUG, HOLE
-
315020970-067 ROD, TIE (BLACK)ROD, TIE (BLACK)
-
327515434 SCREWSCREW
-
337060166 ROD END (LEFT)ROD END (LEFT)
-
347542411 NUT, LOCKNUT, LOCK
-
355010417 BUSHINGBUSHING
-
361820577 ARM ASSY, IDLER (INCL. 4, 35)ARM ASSY, IDLER (INCL. 4, 35)
-
375010384 TUBE, SPACERTUBE, SPACER
-
385411220 O-RINGO-RING
-
397555893 WASHERWASHER
-
407515415 BOLTBOLT
-
411822467 RACK ASSY., STEERINGRACK ASSY., STEERING
