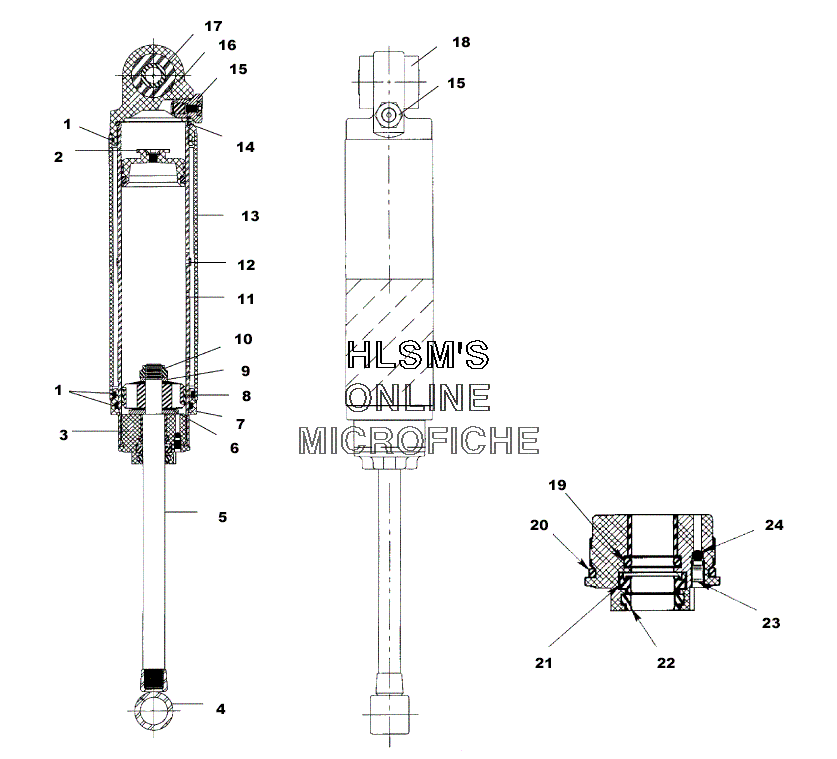

SUSPENSION - FOX SHOCK - GAS- REAR TRACK для Polaris 500 XC (S00SB5AS) - 2000 года выпуска
-
№АртикулНазвание
-
11500193 O-RINGO-RING
-
21500018 SCREWSCREW
-
21500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
21500187 PISTON, FLOATINGPISTON, FLOATING
-
31500186 BEARING ASSY.BEARING ASSY.
-
41500148 EYELETEYELET
-
51500152 SHAFTSHAFT
-
61500017 PLATE (TOP/OUTER)PLATE (TOP/OUTER)
-
71500191 COLLAR ASSY., POS. SENS.COLLAR ASSY., POS. SENS.
-
81500002 DAMPER, PISTONRINGDAMPER, PISTONRING
-
91500015 BUSHING, BACKUPBUSHING, BACKUP
-
101500016 NUT, LOCKNUT, LOCK
-
111500192 SLEEVE, BY PASSSLEEVE, BY PASS
-
121500190 BEARING, EXTERNAL, RING (BLUE)BEARING, EXTERNAL, RING (BLUE)
-
131500188 BODY, POSITION SENS.BODY, POSITION SENS.
-
141500004 O-RING, BODYO-RING, BODY
-
151500019 SCREWSCREW
-
151500023 O-RING (OUTER)O-RING (OUTER)
-
151500072 VALVE ASSY., AIRVALVE ASSY., AIR
-
161500189 BODY CAP, POS. SENS.BODY CAP, POS. SENS.
-
175020657 BUSHING (1.40)BUSHING (1.40)
-
185432040 BUSHING EYELETBUSHING EYELET
-
191500021 O-RING (INNER)O-RING (INNER)
-
201500020 O-RINGO-RING
-
211500025 U-CUPU-CUP
-
221500024 WIPER (CLEAR/OUTER)WIPER (CLEAR/OUTER)
-
231500070 SCREWSCREW
-
241500071 BALLBALL
-
247041728 SHOCK, TRACK POS. SEN (REAR) (XTRA 10)SHOCK, TRACK POS. SEN (REAR) (XTRA 10)
