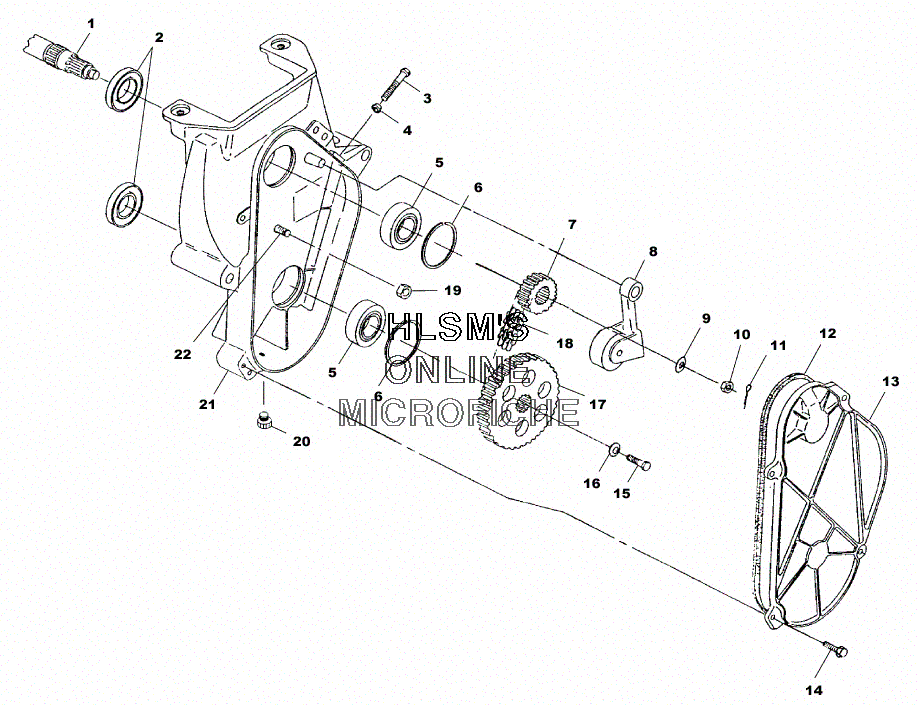

CHAINCASE ASSEMBLY для Polaris 500 XC SP (S00SP5CS) - 2000 года выпуска
-
№АртикулНазвание
-
23610030 SEAL, OILSEAL, OIL
-
37515551 SCREWSCREW
-
47542404 NUTNUT
-
53514309 BEARING, BALLBEARING, BALL
-
67718406 RING, RETAININGRING, RETAINING
-
73221098 SPROCKET, SPLINE (22 TEETH) (3/4W)SPROCKET, SPLINE (22 TEETH) (3/4W)
-
81332213 TIGHTENER, CHAINCASE (INCL. THE FOLLOWING)TIGHTENER, CHAINCASE (INCL. THE FOLLOWING)
-
83553002 BEARINGBEARING
-
85630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
87558702 WASHER THRUSTWASHER THRUST
-
87662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
97571620 WASHER, SLOTTEDWASHER, SLOTTED
-
107542811 NUTNUT
-
117661401 COTTER PINCOTTER PIN
-
125411207 GASKET, CHAINCASE, LONGGASKET, CHAINCASE, LONG
-
135630691 COVER, CHAINCASECOVER, CHAINCASE
-
147512242 SCREWSCREW
-
157515350 SCREWSCREW
-
167571618 WASHERWASHER
-
173222101 SPROCKET, SPLINE (41/15 TEETH)SPROCKET, SPLINE (41/15 TEETH)
-
183221115 CHAIN, HYVO (70P) )34W)CHAIN, HYVO (70P) )34W)
-
197542451 NUT, NYLOCNUT, NYLOC
-
207052115 PLUGPLUG
-
215131455 CHAINCASE, VENTEDCHAINCASE, VENTED
-
227515477 BOLTBOLT
