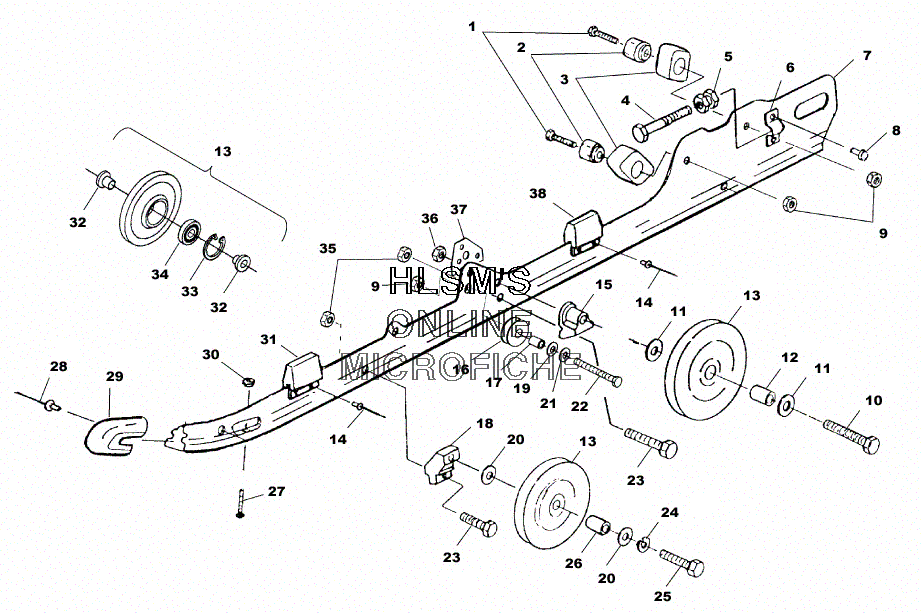

RAIL ASSEMBLY W/ IDLER WHEELS #2 для Polaris 500 XC SP (S00SP5CS) - 2000 года выпуска
-
№АртикулНазвание
-
17515545 BOLTBOLT
-
25131113 MOUNT, BUMPER PIVOT ARM (FRONT)MOUNT, BUMPER PIVOT ARM (FRONT)
-
35410925 BUMPER, PIVOT ARM (FRONT)BUMPER, PIVOT ARM (FRONT)
-
47515455 BOLT, ADJUSTERBOLT, ADJUSTER
-
55020943 NUT, TENSIONER ADJUSTNUT, TENSIONER ADJUST
-
65130530 BLOCK, IDLER BOLT ADJUSTBLOCK, IDLER BOLT ADJUST
-
71541336 RAIL (XTRA 10) (121) (LEFT) (INCL. 3, 6, 29, 31, 38)RAIL (XTRA 10) (121) (LEFT) (INCL. 3, 6, 29, 31, 38)
-
71541337 RAIL (XTRA 10) (121) (RIGHT) (INCL. 3, 6, 29, 31, 38)RAIL (XTRA 10) (121) (RIGHT) (INCL. 3, 6, 29, 31, 38)
-
87621501 RIVETRIVET
-
97542411 NUT LOCKNUT LOCK
-
107512538 BOLTBOLT
-
117555852 WASHER, FLATWASHER, FLAT
-
125333116 SPACER, WHEELSPACER, WHEEL
-
131594082-293 WHEEL, SCROLL, BOGIE (INDYRED) (INCL. 32, 33)WHEEL, SCROLL, BOGIE (INDYRED) (INCL. 32, 33)
-
147621476 RIVETRIVET
-
155630399 SPACERSPACER
-
165432982 ROLLER, SPRING, SQUARE (X10)ROLLER, SPRING, SQUARE (X10)
-
175332787 SPACERSPACER
-
185130570 BRACKET, BOGIE WHEELBRACKET, BOGIE WHEEL
-
197555806 WASHERWASHER
-
207555804 WASHERWASHER
-
217555976 WASHERWASHER
-
227515433 BOLTBOLT
-
237512404 BOLTBOLT
-
247553201 LOCK WASHERLOCK WASHER
-
257512659 BOLTBOLT
-
265332786 SPACERSPACER
-
277515175 BOLTBOLT
-
287621435 RIVETRIVET
-
295433005 COVER, RAIL TIPCOVER, RAIL TIP
-
307542122 NUT, LOCKNUT, LOCK
-
315222629 REINF., BUMPERREINF., BUMPER
-
315810554 BUMPER, RAILBUMPER, RAIL
-
325431531 INSERT, WHEEL (2 PER WHEEL)INSERT, WHEEL (2 PER WHEEL)
-
337718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
343514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
357542439 NUT, NYLOKNUT, NYLOK
-
367542525 NUT, NYLOCKNUT, NYLOCK
-
375211790 BRACKETRAIL, REINFBRACKETRAIL, REINF
-
385222629 REINF., BUMPERREINF., BUMPER
-
385811097 BUMPER, SUSPENSIONBUMPER, SUSPENSION
