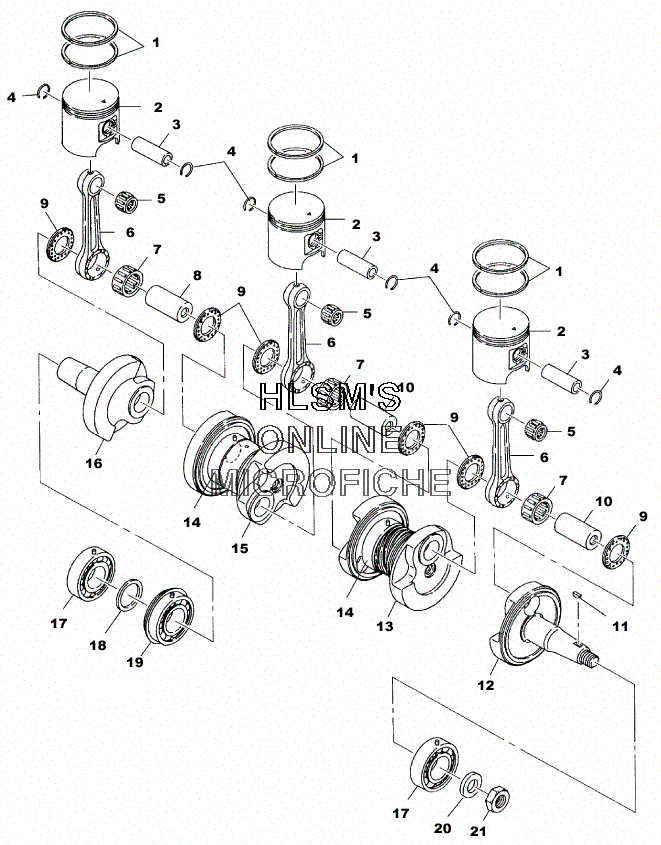

PISTON AND CRANKSHAFT для Polaris 600 TRIUMPH (S00SB6AS) - 2000 года выпуска
-
№АртикулНазвание
-
13083349 RING, PISTON (STD)RING, PISTON (STD)
-
13083358 RING, PISTON (0.25MM O/S)RING, PISTON (0.25MM O/S)
-
13083359 RING, PISTON (0.50MM O/S)RING, PISTON (0.50MM O/S)
-
23085873 PISTON (STD)PISTON (STD)
-
23085874 PISTON (0.25MM O/S)PISTON (0.25MM O/S)
-
23085875 PISTON (0.50MM O/S)PISTON (0.50MM O/S)
-
33085021 PIN, PISTONPIN, PISTON
-
43084456 CLIP, PISTON PINCLIP, PISTON PIN
-
53080998 BEARING, END (SMALL)BEARING, END (SMALL)
-
63085627 ROD, CONNECTINGROD, CONNECTING
-
73085628 BEARING, END (LARGE)BEARING, END (LARGE)
-
83083254 PIN, CRANK 2PIN, CRANK 2
-
93083277 SPACER(CRANKPIN)SPACER(CRANKPIN)
-
103084447 PIN, CRANK, #1PIN, CRANK, #1
-
113080130 KEY WOODRUFFKEY WOODRUFF
-
123084441 CRANKSHAFT 1 (MAG SIDE)CRANKSHAFT 1 (MAG SIDE)
-
123085437 CRANKSHAFT ASSY (INCL. 6-10, 12-17)CRANKSHAFT ASSY (INCL. 6-10, 12-17)
-
133084443 CRANKSHAFT (MAG SIDE) (INCL. 10)CRANKSHAFT (MAG SIDE) (INCL. 10)
-
133085438 CRANKSHAFT (CENTER) (INCL. 6-10, 13, 15)CRANKSHAFT (CENTER) (INCL. 6-10, 13, 15)
-
143084586 BEARING, BALLBEARING, BALL
-
153084444 CRANKSHAFT (PTO SIDE) (INCL. 8)CRANKSHAFT (PTO SIDE) (INCL. 8)
-
163085439 CRANKSHAFT#3 (PTO SIDE)CRANKSHAFT#3 (PTO SIDE)
-
173084681 BEARING, BALLBEARING, BALL
-
183080447 SPACER, CRANKSHAFTSPACER, CRANKSHAFT
-
193084599 BEARING, BALLBEARING, BALL
-
203084457 WASHERWASHER
-
213083093 NUTNUT
