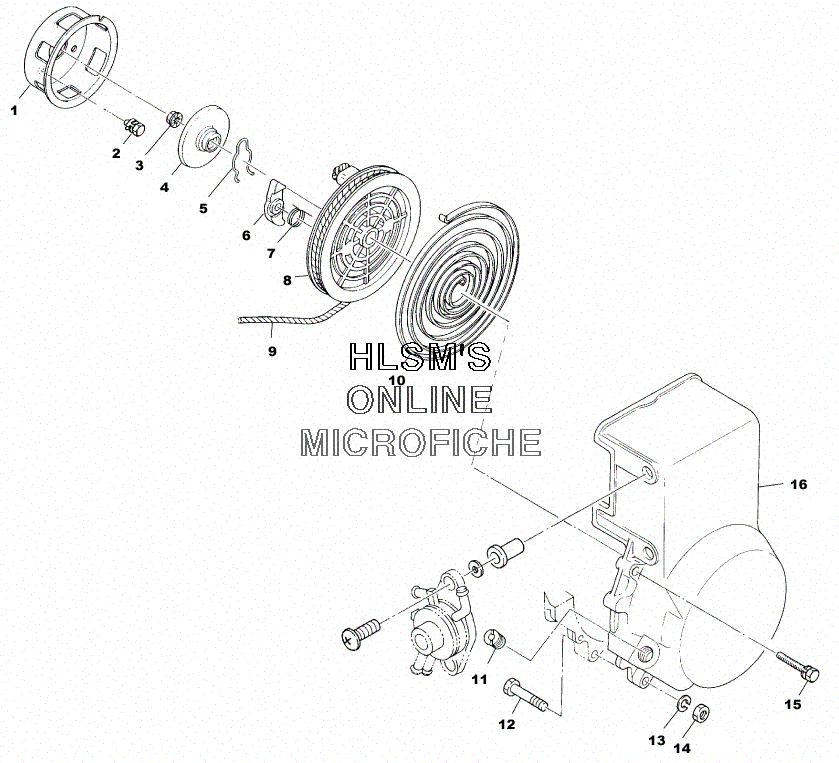

STARTER - RECOIL ASSEMBLY для Polaris 600 TRIUMPH (S00SB6AS) - 2000 года выпуска
-
№АртикулНазвание
-
13083312 PULLEY, STARTINGPULLEY, STARTING
-
23084224 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
33083381 NUT, FLANGENUT, FLANGE
-
43083464 PLATE, FRICTIONPLATE, FRICTION
-
53083379 SPRING, FRICTIONSPRING, FRICTION
-
63083378 RATCHETRATCHET
-
73083463 SPRING, RETURNSPRING, RETURN
-
83083377 REEL, REWINDREEL, REWIND
-
92870621 ROPE, 100 FT, NYL.STARTERROPE, 100 FT, NYL.STARTER
-
103083376 SPRING, SPIRALSPRING, SPIRAL
-
113083107 GUIDE-ROPEGUIDE-ROPE
-
123084773 BOLTBOLT
-
133080530 WASHER LOCKWASHER LOCK
-
143080119 NUTNUT
-
153083078 BOLT AND WASHERBOLT AND WASHER
-
163085444 RECOIL STARTER (INCL. 3-11, 16)RECOIL STARTER (INCL. 3-11, 16)
-
163085445 RECOIL, STARTERRECOIL, STARTER
