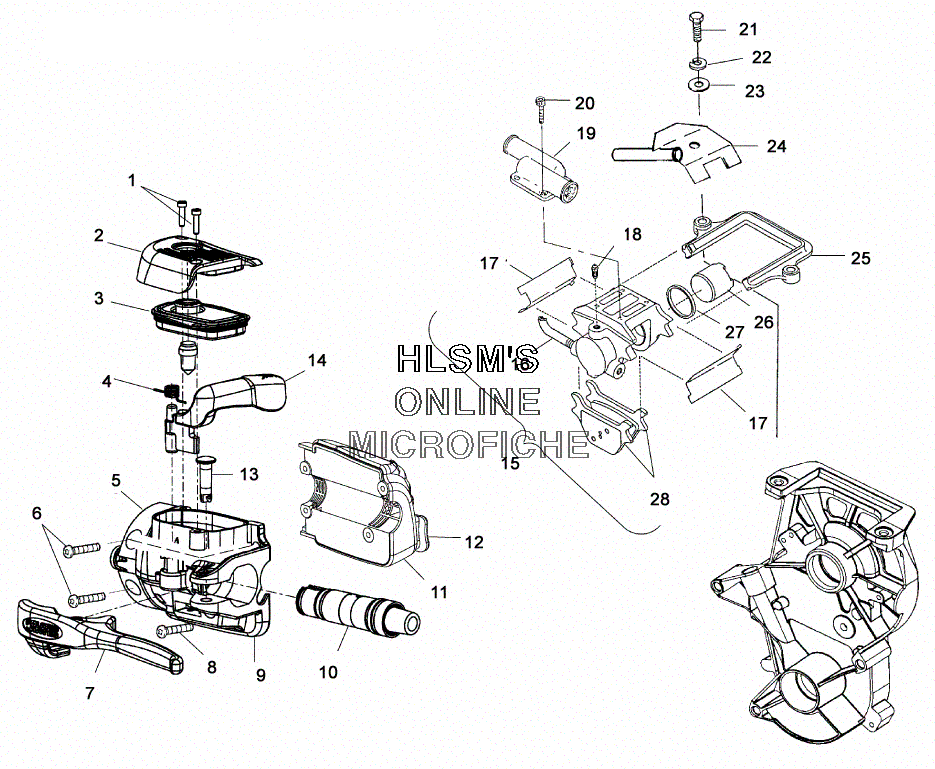

BRAKE ASSEMBLY для Polaris 700 SKS (S00SS7AS) - 2000 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW, KIT (HAYES)COVER SCREW, KIT (HAYES)
-
22201255 COVER ASSY. (HAYES) (INCL. 1, 3)COVER ASSY. (HAYES) (INCL. 1, 3)
-
42201250 PARKLEVER SPRING KITPARKLEVER SPRING KIT
-
52050087 MASTER CYLINDER KIT (INCL. 2, 4, 7, 9, 10, 13)MASTER CYLINDER KIT (INCL. 2, 4, 7, 9, 10, 13)
-
67517441 SCREWSCREW
-
72201569 LEVER, 3 NOTCH/PIN/RING KITLEVER, 3 NOTCH/PIN/RING KIT
-
87517566 SCREWSCREW
-
92201249 MASTER CYLINDER, ASSY. (HAYES)MASTER CYLINDER, ASSY. (HAYES)
-
94010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
102201248 CARTRIDGE SUB-ASSY. (5/8'')CARTRIDGE SUB-ASSY. (5/8'')
-
112010167 CONTROL ASSY. (LEFT) (BASIC)CONTROL ASSY. (LEFT) (BASIC)
-
125433291 BUTTON SWITCH HI/LOBUTTON SWITCH HI/LO
-
132201252 PIVOT PIN, ALUMINUM W/SNAP RING KITPIVOT PIN, ALUMINUM W/SNAP RING KIT
-
142201251 PARKLEVER AND SPRING KIT (INCL. 4)PARKLEVER AND SPRING KIT (INCL. 4)
-
151910344 BRAKE CALIPER, HD, LIQ, NOSW (INCL. 26, 27, 28)BRAKE CALIPER, HD, LIQ, NOSW (INCL. 26, 27, 28)
-
161910313 LINE BRAKE, HYBRIDLINE BRAKE, HYBRID
-
172200467 CLIP SPRING KIT (QTY. 2)CLIP SPRING KIT (QTY. 2)
-
181930735 INLET KITINLET KIT
-
191930728 COOLER, WATER, BRAKECOOLER, WATER, BRAKE
-
192201024 GASKET, BRAKE COOLERGASKET, BRAKE COOLER
-
201930729 SCREW SET (PKG. OF 4)SCREW SET (PKG. OF 4)
-
217515521 BOLTBOLT
-
227552603 WASHERWASHER
-
237555806 WASHERWASHER
-
241012581 GUIDE, ROPE, CHAINCASE ZGUIDE, ROPE, CHAINCASE Z
-
251930733 CALIPER BRACKET KITCALIPER BRACKET KIT
-
261930734 PISTON SEAL KIT (INCL. 27)PISTON SEAL KIT (INCL. 27)
-
272200466 SEALSEAL
-
282201429 BRAKE, PAD KIT TYPE 81 (SMALL) (INCL. 17)BRAKE, PAD KIT TYPE 81 (SMALL) (INCL. 17)
-
282201430 BRAKE, PAD KIT TYPE 81 (LARGE) (INCL. 17)BRAKE, PAD KIT TYPE 81 (LARGE) (INCL. 17)
