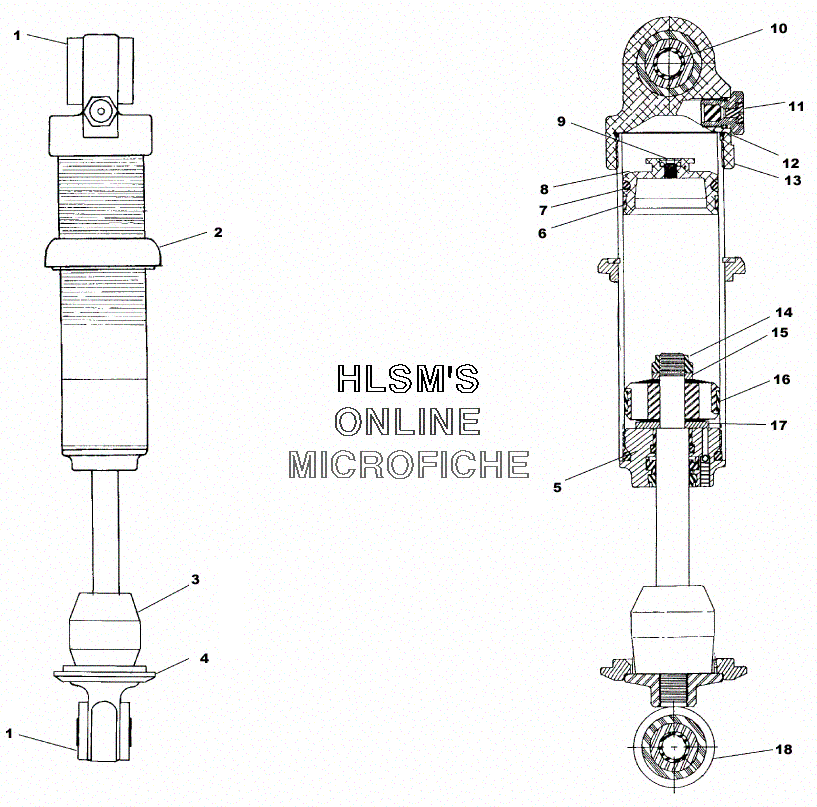

SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT для Polaris 800 XCR (S00SB8AS) - 2000 года выпуска`
-
№АртикулНазвание
-
11500137 BUSHING, EYELET (.205)BUSHING, EYELET (.205)
-
25432304 RING, SPRING PRELOAD, ADJUSTRING, SPRING PRELOAD, ADJUST
-
35410855 BUMPER, JOUNCEBUMPER, JOUNCE
-
45630580 RETIANER, SPRING SLOTTEDRETIANER, SPRING SLOTTED
-
51500020 O-RING (.103W-1.299ID)O-RING (.103W-1.299ID)
-
51500021 O-RING (INNER)O-RING (INNER)
-
51500024 WIPER, CLEAR (OUTER)WIPER, CLEAR (OUTER)
-
51500025 U-CUPU-CUP
-
51500070 SCREWSCREW
-
51500071 BALL (FOX)BALL (FOX)
-
51500265 BEARING ASSY. (498DIA)BEARING ASSY. (498DIA)
-
61500006 RING, PISTON, FLOATING, FOXRING, PISTON, FLOATING, FOX
-
71500003 O-RING, ENDCAP, FOXO-RING, ENDCAP, FOX
-
81500187 PISTON, FLOATINGPISTON, FLOATING
-
91500161 SCREW/O-RING ASSY.SCREW/O-RING ASSY.
-
101500138 SLEEVE, STEELSLEEVE, STEEL
-
111500014 VALVE ASSY., AIRVALVE ASSY., AIR
-
111500019 SCREWSCREW
-
111500023 O-RING, OUTERO-RING, OUTER
-
121500108 O-RING (.103W-1.549ID)O-RING (.103W-1.549ID)
-
131500288 BODY, CAPBODY, CAP
-
141500016 NUT, LOCKNUT, LOCK
-
151500015 BUSHING, BACKUPBUSHING, BACKUP
-
161500002 DAMPER, PISTONRING, FOXDAMPER, PISTONRING, FOX
-
171500017 PLATE (TOP) (OUTER)PLATE (TOP) (OUTER)
-
181500164 EYELET, BASEEYELET, BASE
-
187041811 SHOCK, GAS (IFP) (IFS)SHOCK, GAS (IFP) (IFS)
