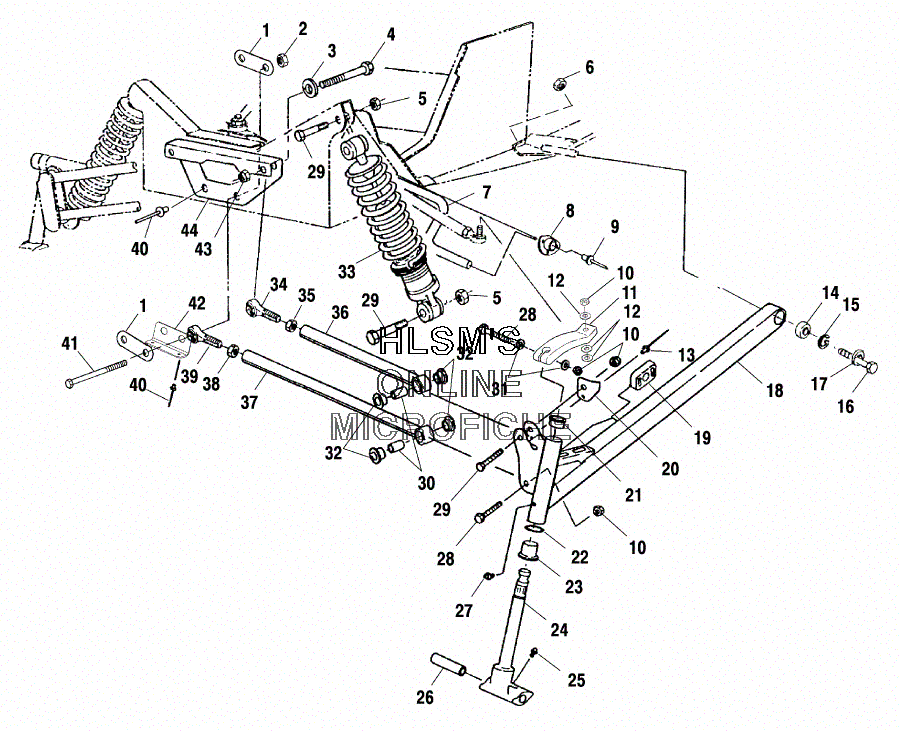

SUSPENSION - FRONT для Polaris 800 XCR (S00SB8AS) - 2000 года выпуска
-
№АртикулНазвание
-
15211345 STRAP, SPACER (BOTTOM)STRAP, SPACER (BOTTOM)
-
27542703 NUT FLEXNUT FLEX
-
37558702 WASHER THRUSTWASHER THRUST
-
47512551 BOLTBOLT
-
57542439 NUT, NYLOKNUT, NYLOK
-
67547140 NUT, NYLOCKNUT, NYLOCK
-
75243008-067 BAR, TORSION (5/8) (BLACK)BAR, TORSION (5/8) (BLACK)
-
85432038 BUSHING, SWAY BARBUSHING, SWAY BAR
-
97621477 RIVETRIVET
-
107542403 NUT LOCKNUT LOCK
-
115131739 ARM, STEERING, ALUMINUM (LEFT)ARM, STEERING, ALUMINUM (LEFT)
-
115131740 ARM, STEERING, ALUMINUM (RIGHT)ARM, STEERING, ALUMINUM (RIGHT)
-
127555797 WASHERWASHER
-
137661643 RIVET (-3/16-.214-.420)RIVET (-3/16-.214-.420)
-
147061042 BEARING, SPHERICAL, 7/16, PLASTICBEARING, SPHERICAL, 7/16, PLASTIC
-
157710437 RING, RETAININGRING, RETAINING
-
167512579 BOLTBOLT
-
177555801 WASHERWASHER
-
181820778 TRAILING ARM ASSY. (LEFT) (BLACK) (INCL. 14, 15)TRAILING ARM ASSY. (LEFT) (BLACK) (INCL. 14, 15)
-
181820779 TRAILING ARM ASSY. (RIGHT) (BLACK) (INCL. 14, 15)TRAILING ARM ASSY. (RIGHT) (BLACK) (INCL. 14, 15)
-
195432561 SLIDE, SWAYBAR (5/8)SLIDE, SWAYBAR (5/8)
-
205242017-067 STOP, STEERING (LEFT)STOP, STEERING (LEFT)
-
205242018-067 STOP, STEERING (RIGHT)STOP, STEERING (RIGHT)
-
213573909 BUSHING, FLANGEBUSHING, FLANGE
-
227556509 WASHER SPECIALWASHER SPECIAL
-
233574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
246230099-067 SPINDLE, SHAFT, HARD.SPINDLE, SHAFT, HARD.
-
257080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
265010158 BUSHING, PIVOTBUSHING, PIVOT
-
277080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
287517583 SCREWSCREW
-
297515415 BOLTBOLT
-
305010127 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
317555832 WASHERWASHER
-
325431486 BUSH, RADIUS ROD PIVOT, (OUTER)BUSH, RADIUS ROD PIVOT, (OUTER)
-
335630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
337041575-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
347061010 ROD, END RADIUS (RIGHT) (7/16'')ROD, END RADIUS (RIGHT) (7/16'')
-
357542520 NUT JAMNUT JAM
-
361822588-067 RADIUS ROD (UPPER) (BLACK)RADIUS ROD (UPPER) (BLACK)
-
371822559-067 RADIUS ROD (LOWER) (BLACK)RADIUS ROD (LOWER) (BLACK)
-
387542711 NUT, JAMNUT, JAM
-
397061027 ROD, END RADIUS (RIGHT) (LOWER)ROD, END RADIUS (RIGHT) (LOWER)
-
407661638 RIVET, INTERLOCK BRIVET, INTERLOCK B
-
417512684 BOLTBOLT
-
425242578 BRACKET RADIUS ROD (BOTTOM)BRACKET RADIUS ROD (BOTTOM)
-
437542503 NUT, LOCKNUT, LOCK
-
441012575-067 BRACE, BULKHEAD (FRONT) (BLACK)BRACE, BULKHEAD (FRONT) (BLACK)
