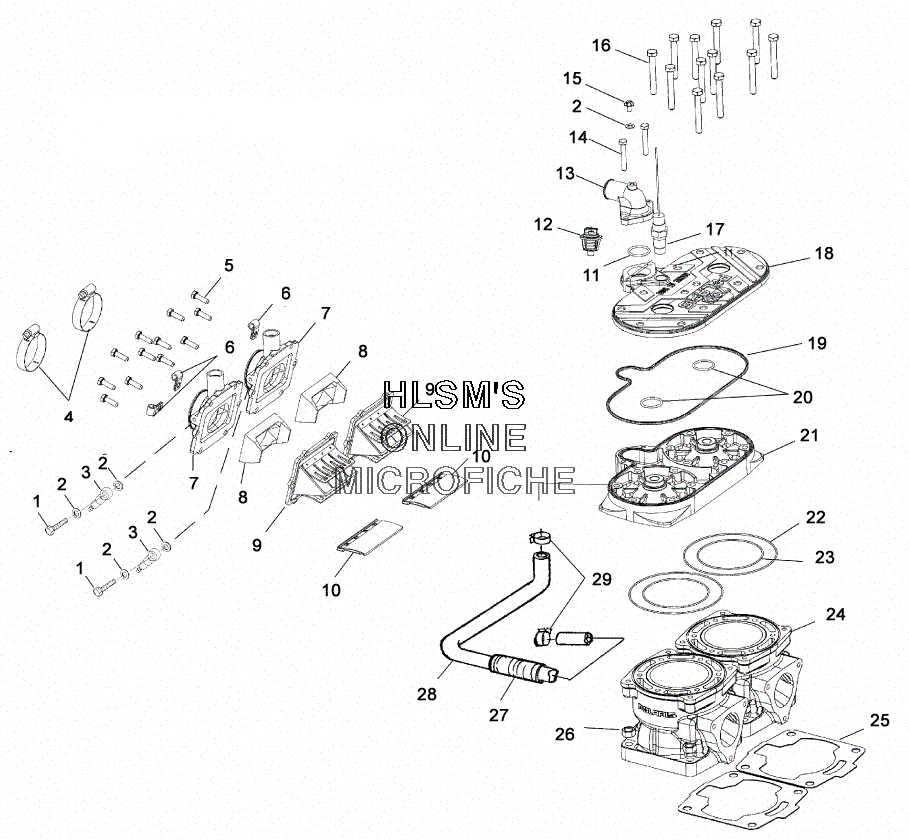

CYLINDER ASSEMBLY для Polaris EURO 700 SKS (E00SS7AU) - 2000 года выпуска
-
№АртикулНазвание
-
17517578 SCREWSCREW
-
27555998 WASHER, FLATWASHER, FLAT
-
37052160 VALVE, CHECK, OIL PUMPVALVE, CHECK, OIL PUMP
-
47080681 CLAMP, HOSE, SS,CLAMP, HOSE, SS,
-
57517398 SCREWSCREW
-
67080683 CLAMP, HOSECLAMP, HOSE
-
71253259 ADAPTOR, CARBURETOR, OIL INJECTION, SNO (40MM)ADAPTOR, CARBURETOR, OIL INJECTION, SNO (40MM)
-
85433151 STUFFER, REED BLOCK, NOKSTUFFER, REED BLOCK, NOK
-
91201831 VALVE, REED, NOKVALVE, REED, NOK
-
105411251 STUFFERSTUFFER
-
115411521 O-RING, LIPSEALO-RING, LIPSEAL
-
127052224 THERMOSTAT 60ШCTHERMOSTAT 60ШC
-
135630910 COVER, THERMOSTAT (M6 BLEED) (LARGE0COVER, THERMOSTAT (M6 BLEED) (LARGE0
-
147516818 SCREWSCREW
-
157517266 SCREWSCREW
-
167517534 SCREW (M8X1.25X60)SCREW (M8X1.25X60)
-
174110254 SENSOR, TEMP (93 DEG)SENSOR, TEMP (93 DEG)
-
185631009-093 COVERHEAD, 81MMT/BYPASS FIREREDCOVERHEAD, 81MMT/BYPASS FIRERED
-
195411294 SEAL, RUBBER, HEADSEAL, RUBBER, HEAD
-
205410917 O-RINGO-RING
-
213021022 HEAD, CYLINDER, BYPASS (TWNSNO) (81MM)HEAD, CYLINDER, BYPASS (TWNSNO) (81MM)
-
225410931 O-RINGO-RING
-
235410932 O-RINGO-RING
-
245131824 CYLINDER (81 MM.)CYLINDER (81 MM.)
-
255811538 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
267547013 NUTNUT
-
275521398-96 CONDUIT, FLEX (.75''ID)CONDUIT, FLEX (.75''ID)
-
285411536 HOSE, BYPASSHOSE, BYPASS
-
297080810 CLAMP, 3 TONGCLAMP, 3 TONG
