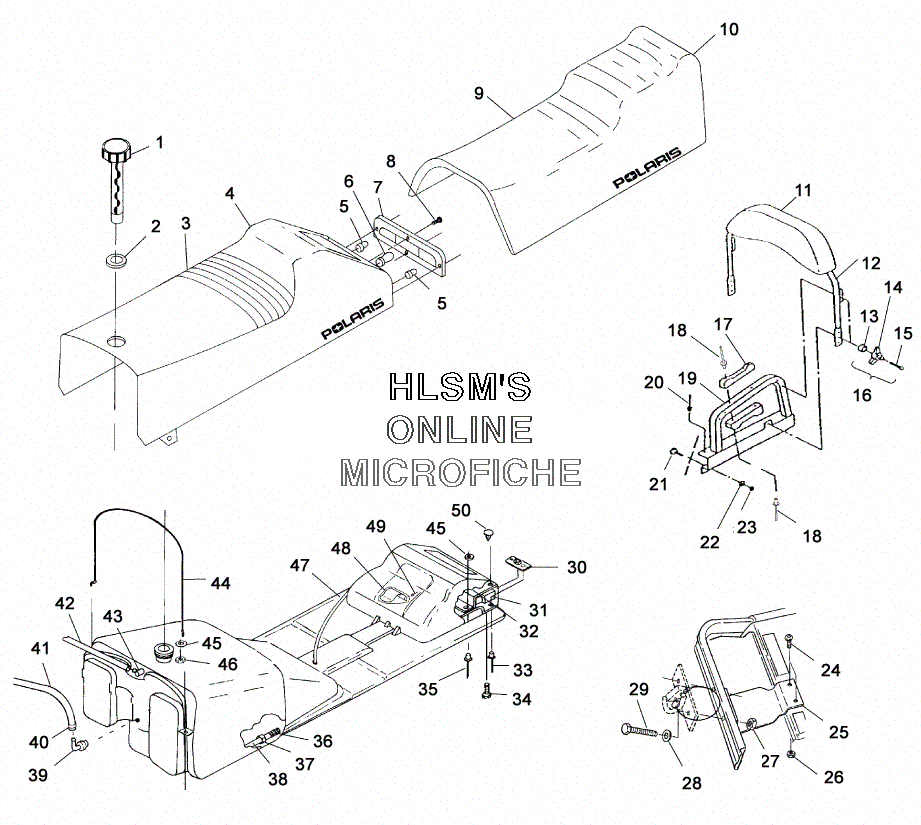

SEAT W/ GAS TANK ASSEMBLY для Polaris EURO 700 SKS (E00SS7AU) - 2000 года выпуска
-
№АртикулНазвание
-
12511248 CAP, GAS, W/GAUGECAP, GAS, W/GAUGE
-
15810513 GASKET, GAS CAPGASKET, GAS CAP
-
25410842 GROMMET, FUELTANKGROMMET, FUELTANK
-
32682476 SEAT CUSHION, ASSY. LONG (INCL. 5, 39, 42, 44) (US)SEAT CUSHION, ASSY. LONG (INCL. 5, 39, 42, 44) (US)
-
54030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
64030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
75430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
87511840 SCREWSCREW
-
92682516 CUSHION, SEAT, ASSY. (INCL. 5, 39, 42, 44)CUSHION, SEAT, ASSY. (INCL. 5, 39, 42, 44)
-
102682505 COVER, SEAT ASSY.COVER, SEAT ASSY.
-
112681265 COVER, BACKRESTCOVER, BACKREST
-
122681356 BACKREST ASSY. (INCL. 11)BACKREST ASSY. (INCL. 11)
-
135431285 SPACERSPACER
-
145630386-067 KNOB, BACKRESTKNOB, BACKREST
-
157515306 SCREWSCREW
-
162670130 KNOB ASSY., BACKREST (INCL. 13, 15)KNOB ASSY., BACKREST (INCL. 13, 15)
-
175433383 GRIP, HAND W/INSERTGRIP, HAND W/INSERT
-
187661059 RIVET (5MMX35MM)RIVET (5MMX35MM)
-
191012869-067 GRAB, BAR (LEFT) (BLK)GRAB, BAR (LEFT) (BLK)
-
191012870-067 GRAB, BAR (RIGHT) (BLK)GRAB, BAR (RIGHT) (BLK)
-
207661638 RIVET, INTERLOCK BRIVET, INTERLOCK B
-
217515363 BOLTBOLT
-
227558402 WASHER STEELWASHER STEEL
-
237542324 NUTNUT
-
247517299 SCREWSCREW
-
255242099-067 PLATE, HITCH BRACE (BLK)PLATE, HITCH BRACE (BLK)
-
267542151 NUTNUT
-
277542439 NUT, NYLOKNUT, NYLOK
-
287555928 WASHER, WROUGHTWASHER, WROUGHT
-
297512410 BOLTBOLT
-
307542147 NUT, RETAINER, WELD.NUT, RETAINER, WELD.
-
315433341 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
325431436 COVER, TAILLIGHT PROTECTORCOVER, TAILLIGHT PROTECTOR
-
337621301 RIVETRIVET
-
347517371 SCREWSCREW
-
357621464 RIVETRIVET
-
367052243 FUEL PICKUP, W/FILTERFUEL PICKUP, W/FILTER
-
377080402 RING, COMPRESSIONRING, COMPRESSION
-
388450003-1525 FUEL LINE (1/4 ID, 1525 CM.)FUEL LINE (1/4 ID, 1525 CM.)
-
397052143 FITTING, DOUBLE (OUTER) (90 DEGREE)FITTING, DOUBLE (OUTER) (90 DEGREE)
-
407080307 CLAMP, HOSECLAMP, HOSE
-
418350018-600 TUBING, ETHER ERETHANE (160CM)TUBING, ETHER ERETHANE (160CM)
-
428450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
-
437052095 FITTING (90 DEG, 1/8)FITTING (90 DEG, 1/8)
-
447080559 CABLE, TANK, RETENTIONCABLE, TANK, RETENTION
-
457555746 BURR, RIVETBURR, RIVET
-
467541925 NUT, NULOKNUT, NULOK
-
472460398 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
485243185 RETAINER, CLIP, TOOL POUCHRETAINER, CLIP, TOOL POUCH
-
497621472 RIVETRIVET
-
507670097 CLIP, DARTCLIP, DART
