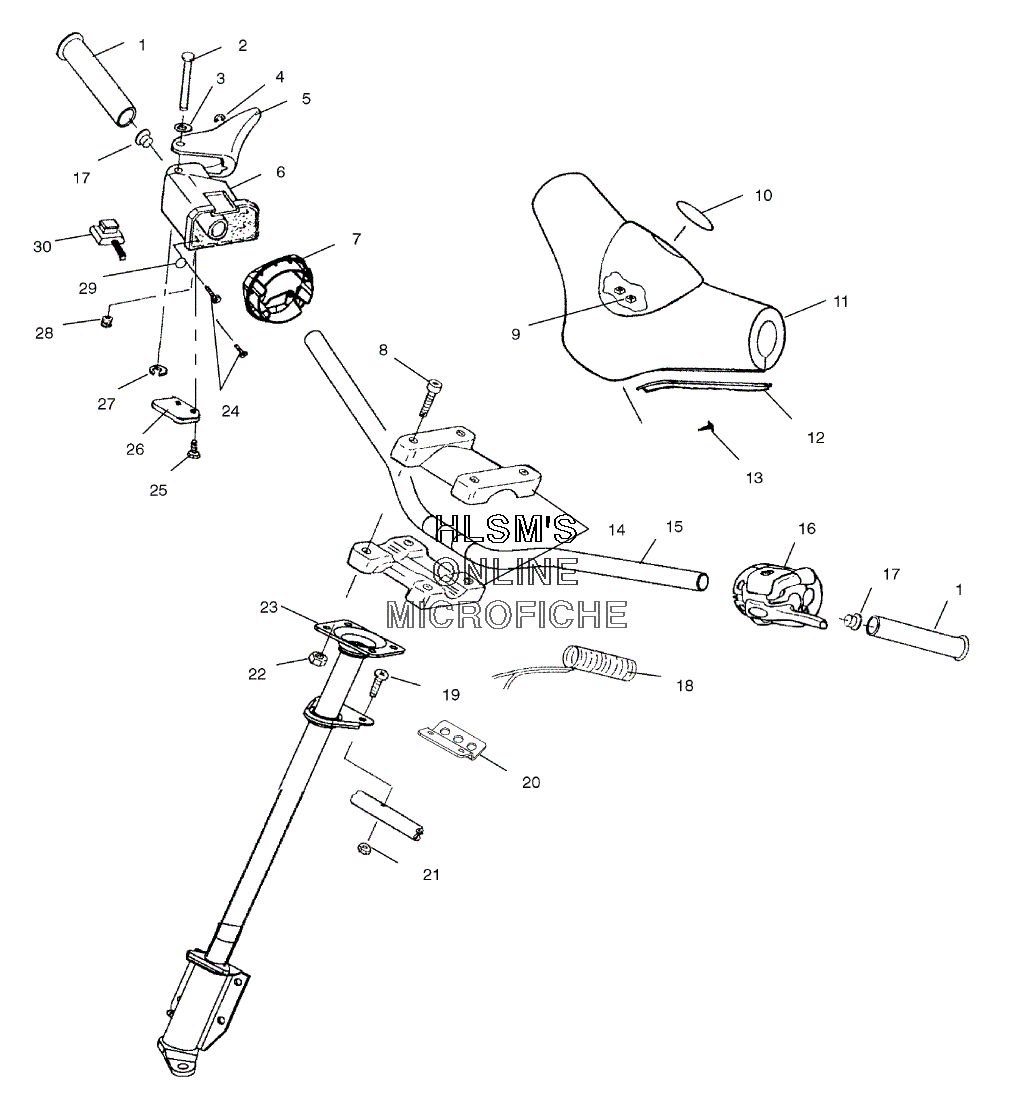

HANDLEBAR ASSEMBLY для Polaris SUPERSPORT (WHITE) (S00SB5BS) - 2000 года выпуска
-
№АртикулНазвание
-
15432634 GRIP, H'BAR, SNOWGRIP, H'BAR, SNOW
-
27661624 PIN-HINGEPIN-HINGE
-
37555730 WASHERWASHER
-
47710503 RETAINING RINGRETAINING RING
-
52010177 LEVER ASSY., HTR, HI/LO, 34MMLEVER ASSY., HTR, HI/LO, 34MM
-
55430652 LEVER-THROTTLELEVER-THROTTLE
-
65431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
75432971 ADAPTER-BLOCK, THROTTLEADAPTER-BLOCK, THROTTLE
-
87517238 SCREW,SCREW,
-
97670106 NUT-PUSH ON, .170-.180-YNUT-PUSH ON, .170-.180-Y
-
105433522 EMBLEM-''STAR'', BEZEL, HANDLE BAREMBLEM-''STAR'', BEZEL, HANDLE BAR
-
115433159 COVER-HANDLEBAR, (BLACK)COVER-HANDLEBAR, (BLACK)
-
125433160 SLIDE-HANDLEBAR COVER, (BLACK)SLIDE-HANDLEBAR COVER, (BLACK)
-
125433161 SLIDE-HANDLEBAR COVER, (BLACK)SLIDE-HANDLEBAR COVER, (BLACK)
-
134010287 DART-CLIP NYLON, (BLACK)DART-CLIP NYLON, (BLACK)
-
145630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
155224861-067 HANDLEBAR, (BLACK)HANDLEBAR, (BLACK)
-
175431096 PLUG, OVERFLOW,PLUG, OVERFLOW,
-
182460677 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
197517377 SCREWSCREW
-
205242553 BRACKETBRACKET
-
217542103 NUT, LOCKNUT, LOCK
-
227542122 NUT-LOCKNUT-LOCK
-
231820561-067 STEERING POST, (BLACK)STEERING POST, (BLACK)
-
247511848 SCREW-SEMSSCREW-SEMS
-
257511858 SCREWSCREW
-
265432261 HOLDER-WIREHOLDER-WIRE
-
277710401 E-RINGE-RING
-
287512465 SCREWSCREW
-
297555727 RIVET BURRRIVET BURR
-
304110106 SWITCH, AUX.SHUT-OFFSWITCH, AUX.SHUT-OFF
